Celestron Ultima Series User Manual

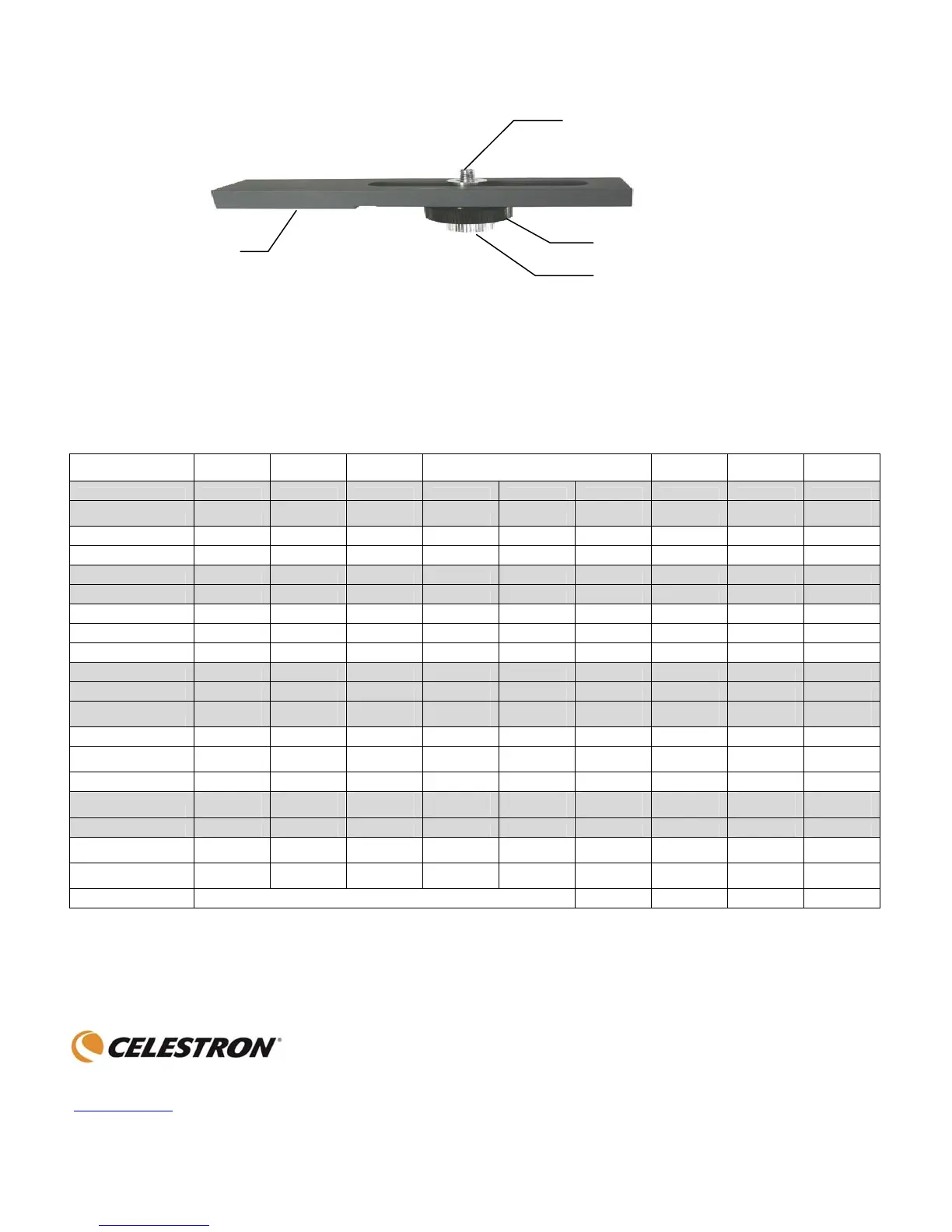

Tripod Balancing Platform (for Ultima 100 models)
This is used on Ultima 100 models to properly balance your spotting scope on top of a photo/video tripod.
To use the tripod balancing platform:
Mount the platform to the top of your photo tripod using the ¼"-20 threaded hole on the bottom side of the platform.
Attach your spotting scope to the platform using the ¼"-20 mounting screw located on the top side of the platform. Thread the mounting screw in as far as it
will go. Slide the attached spotting scope along the slotted cutout until your spotting scope is balanced on the tripod.
Tighten the locking ring to hold the spotting scope in place.
Maintenance
To protect your spotting scope when not being used, put on all lens covers and the lens cap to keep the optics clean and then put
the scope in the soft carrying case. If your optics could use cleaning, use an optics cleaning kit and follow the instructions.
Specifications
Model 52248 52249 52247 52250 52254 52251 52252 52257 52253
Description Ultima 65 Ultima 65
Ultima
65ED Ultima 80 Ultima 80
Ultima
80ED Ultima 100 Ultima 100
Ultima 100
ED
Viewing Position 45° Angled Straight 45° Angled 45° Angled Straight 45° Angled 45° Angled Straight 45° Angled
Aperture - mm 65 65 65 80 80 80 100 100 100
Focal Length - mm 386 386 386 480 480 480 540 540 540
Magnification 18x-55x 18x-55x 16x-48x 20x-60x 20x-60x 20x-60x 22x-66x 22x-66x 22x-66x
Eyepiece - Zoom 7-21mm 7-21mm 8-24mm 8-24mm 8-24mm 8-24mm 8-24mm 8-24mm 8-24mm
Angular Field 1.7° @ 18x 1.7° @ 18x 2.5° @ 16x 2.0° @ 20x 2.0° @ 20x 2.0° @ 20x 1.8° @ 22x 1.8° @ 22x 1.8° @ 22x
of View 0.7° @ 55x 0.7° @ 55x 1.3° @ 48x 1.0° @ 60x 1.0° @ 60x 1.0° @ 60x 1.0° @ 66x 1.0° @ 66x 1.0° @ 66x
Linear Field of View 89 @ 18x 89 @ 18x 131 @ 16x 105 @ 20x 105 @ 20x 105 @ 20x 95 @ 22x 95 @ 22x 95 @ 22x
- feet @ 1000 yds. 38 @ 55x 38 @ 55x 66 @ 48x 53 @ 60x 53 @ 60x 53 @ 60x 53 @ 66x 53 @ 66x 53 @ 66x
Eye Relief
18mm @
18x
18mm @
18x
18mm @
16x
18mm @
20x
18mm @
20x
18mm @
20x
18mm @
22x
18mm @
22x
18mm @
22x
Near Focus 20ft @ 18x 20ft @ 18x 20ft @ 16x 27ft @ 20x 27ft @ 20x 27ft @ 20x 33ft @ 22x 33ft @ 22x 33ft @ 22x
6.1m @ 18x 6.1m @ 18x 6.1m @ 18x 8.2m @ 20x 8.2m @ 20x 8.2m @ 20x
10.0m @
22x
10.0m @
22x
10.0m @
22x
Prisms - BaK - 4 Yes Yes Yes Yes Yes Yes Yes Yes Yes
Optical Coatings
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Multi-
Coated
Waterproof Yes Yes Yes Yes Yes Yes Yes Yes Yes
Length
13" -
330mm
16" -
406mm
13" -
330mm
16" -
406mm 19" 483mm
16" -
406mm
19" -
483mm
22" -
559mm
19" -
483mm
Weight
37oz. -
1.1kg
37oz. -
1.1kg
37oz. -
1.1kg
57oz. -
1.6kg
57oz. -
1.6kg
57oz. -
1.6kg
72oz. -
2.0kg
72oz. -
2.0kg
72oz. -
2.0kg
Note: All specifications are subject to change without notice.
Warranty
Ultima Spotting Scopes have the Celestron No Fault Limited Lifetime Warranty for the U.S.A. and Canadian customers. For
complete details of eligibility and for warranty information on customers in other countries visit the Celestron website.
2835 Columbia St.
Torrance, California 90503 U.S.A.
www.celestron.com
©2008 All Rights Reserved Printed in China 01-08
¼"-20 Mounting Screw
¼"-20 Threaded Hole
(
not shown
)
Lockin
g
Rin
g
Mounting Screw
