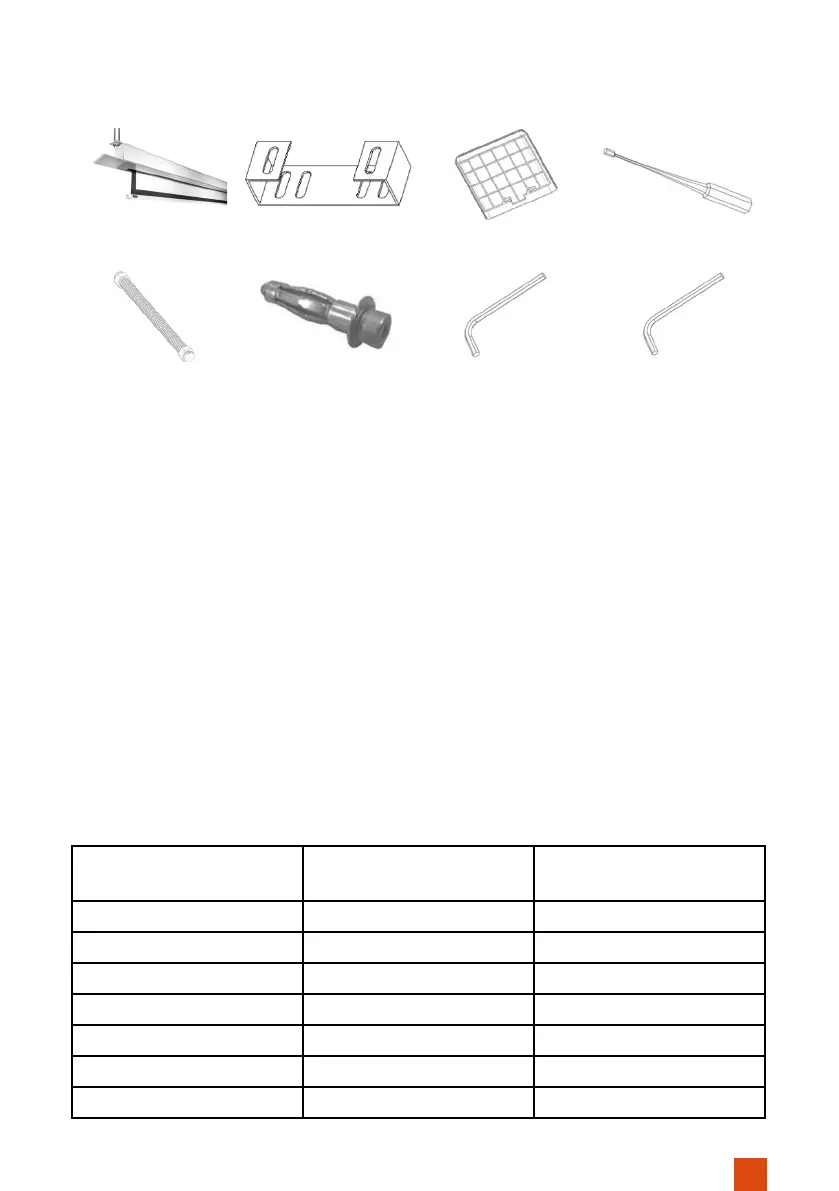

IN THE BOX
INSTALLATION NOTES
Before installation, please check that all the parts listed above are included! If
parts are missing, contact the dealer from whom you purchased the product
and wait for the parts to arrive before completing the installation.
Install the screen in a position that is fully visible to all viewers! The optimum
installation height corresponds to the position of the viewers in the centre
of the screen with the screen fabric extended: eye level = lower third of the
screen surface.
1 x Screen
4 x Threaded rods (D)
2 x Mounting bracket (A)
4 x Metal dowels (E)
2 x Inspection cover (B)
1 x Allen key 5mm (F)
1 x Allen key (C)
1 x Allen key 8mm (L)
INSTALLATION
Please take the ceiling cut-out dimension from the following list and create a
corresponding cut-out in your suspended ceiling.
STEP 1: CEILING CUT-OUT
Viewing area
of screen
Length of Ceiling
cut-out
Width of Ceiling
cut-out
202 cm 11 cm
180 cm 222 cm 11 cm
200 cm 244 cm 11 cm
220 cm 264 cm 11 cm
240 cm 284 cm 11 cm
280 cm 329 cm 13,5 cm
300 cm 349 cm 13,5 cm
