CX SERIES
AIRFLOW CONTROL
Airow Options
The magnetic deectors can be used in a variety of ways, such as mounting the system lower in the cellar, ush-mounting the
condenser side of system, and directing airow to avoid recirculation. Simply apply the magnetic deectors in one of the positions
displayed below. Choose the option that will best suit your installation.
NOTE: Do not cover both of the openings on the same side of the unit for
any reason. This will cause cooling issues and premature failure.
NOTE: Do not cover both of the openings on the same side of the unit for
any reason. This will cause cooling issues and premature failure.

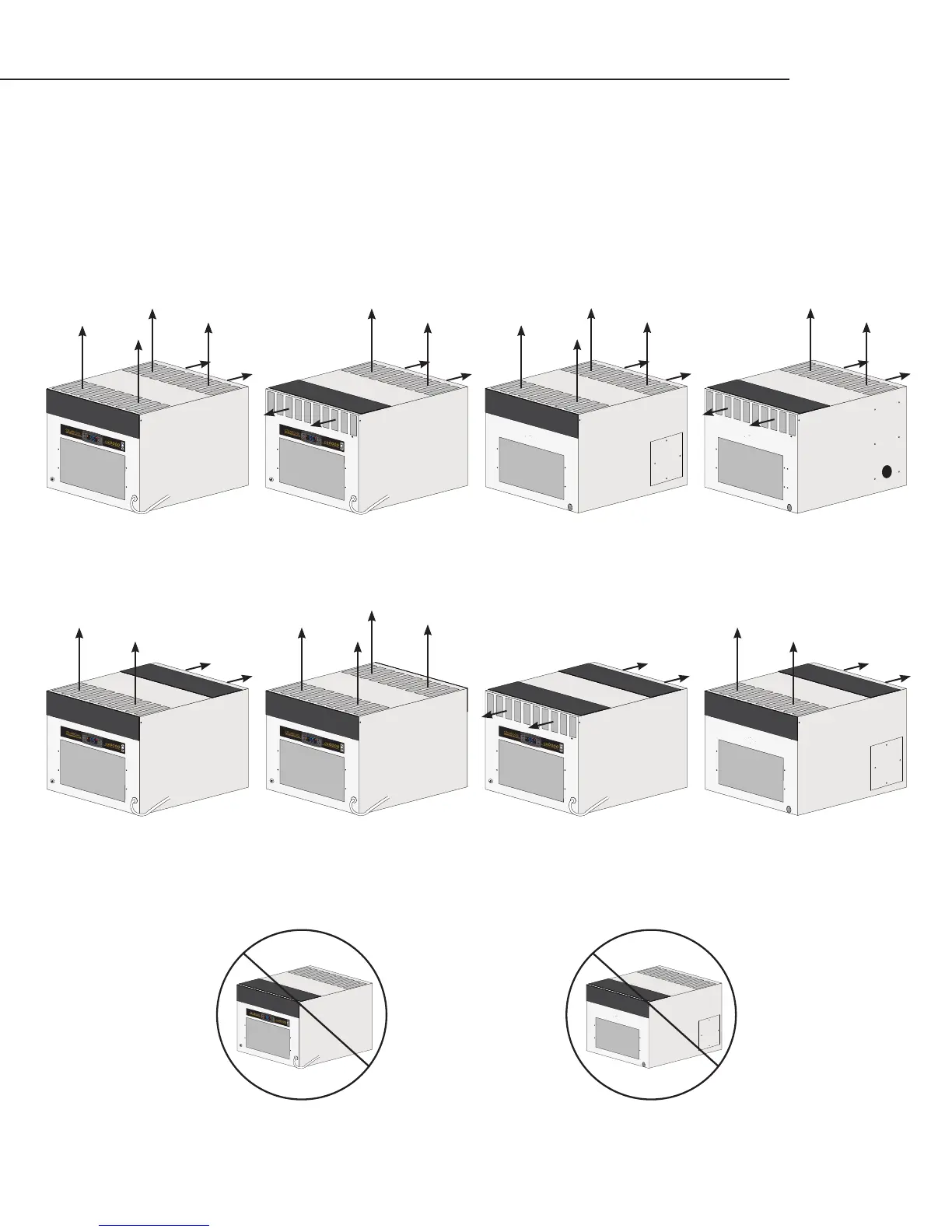

ONE-SIDE SELECTIVE AIRFLOW OPTIONS
TWO-SIDE SELECTIVE AIRFLOW OPTIONS
OPTION 1
OPTION 5
OPTION 2
OPTION 6
OPTION 3
OPTION 7
OPTION 4
OPTION 8
NOTE: If installing the magnetic deectors on the face of the cx4400 unit, excess material may need to be trimmed.
