CellarCool cx2200 - CX8800 CONTROLLER WIRING SCHEMATIC

www.cellarcool.com | Page 19
CX SERIES

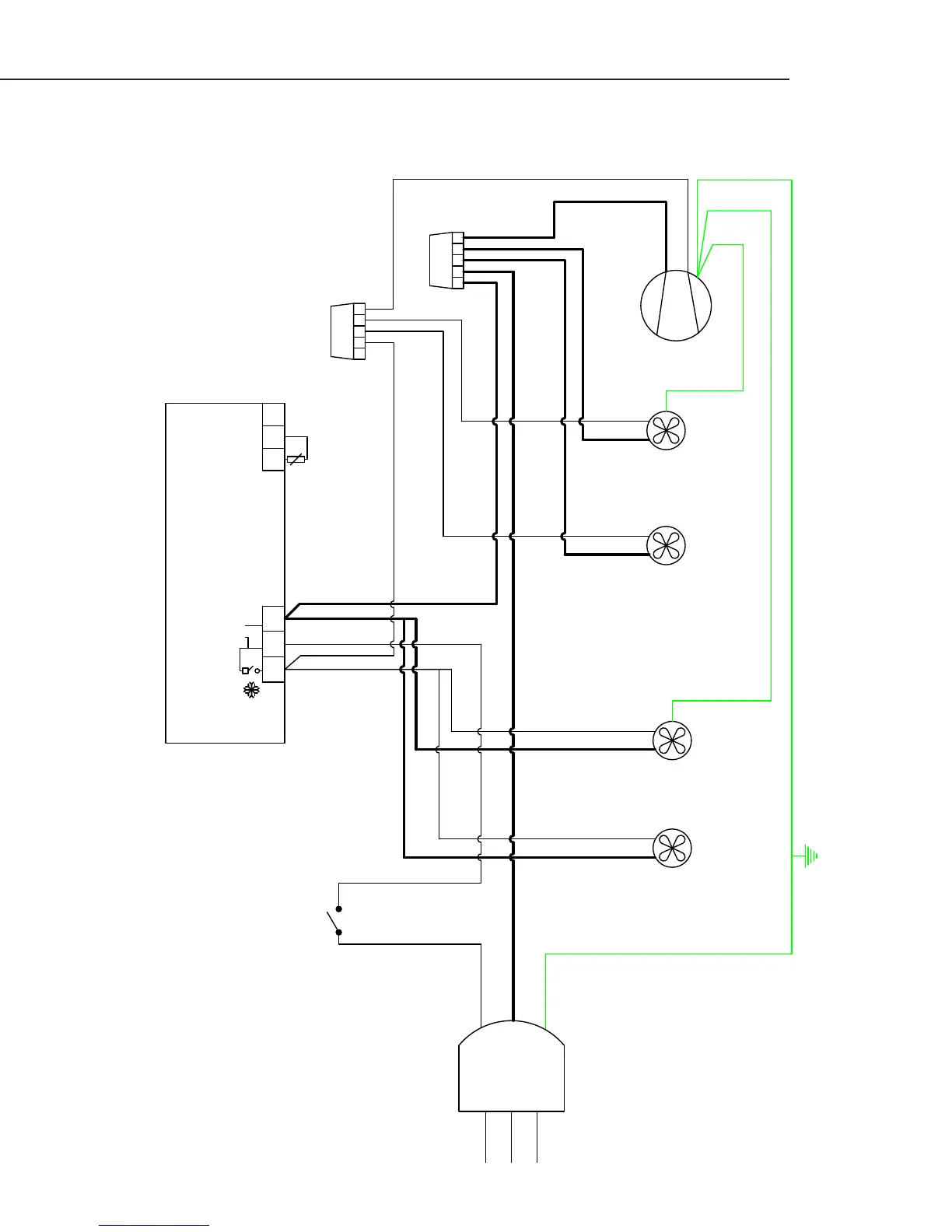

cx8800 CONTROLLER WIRING SCHEMATIC
Cond.
Fan
Compressor
Cond.
Fan
Evap
Fan
 






Evap
Fan




  
 







