cellarking CX - CKC Outdoor Unit Component Identification

20/23
55908014-06

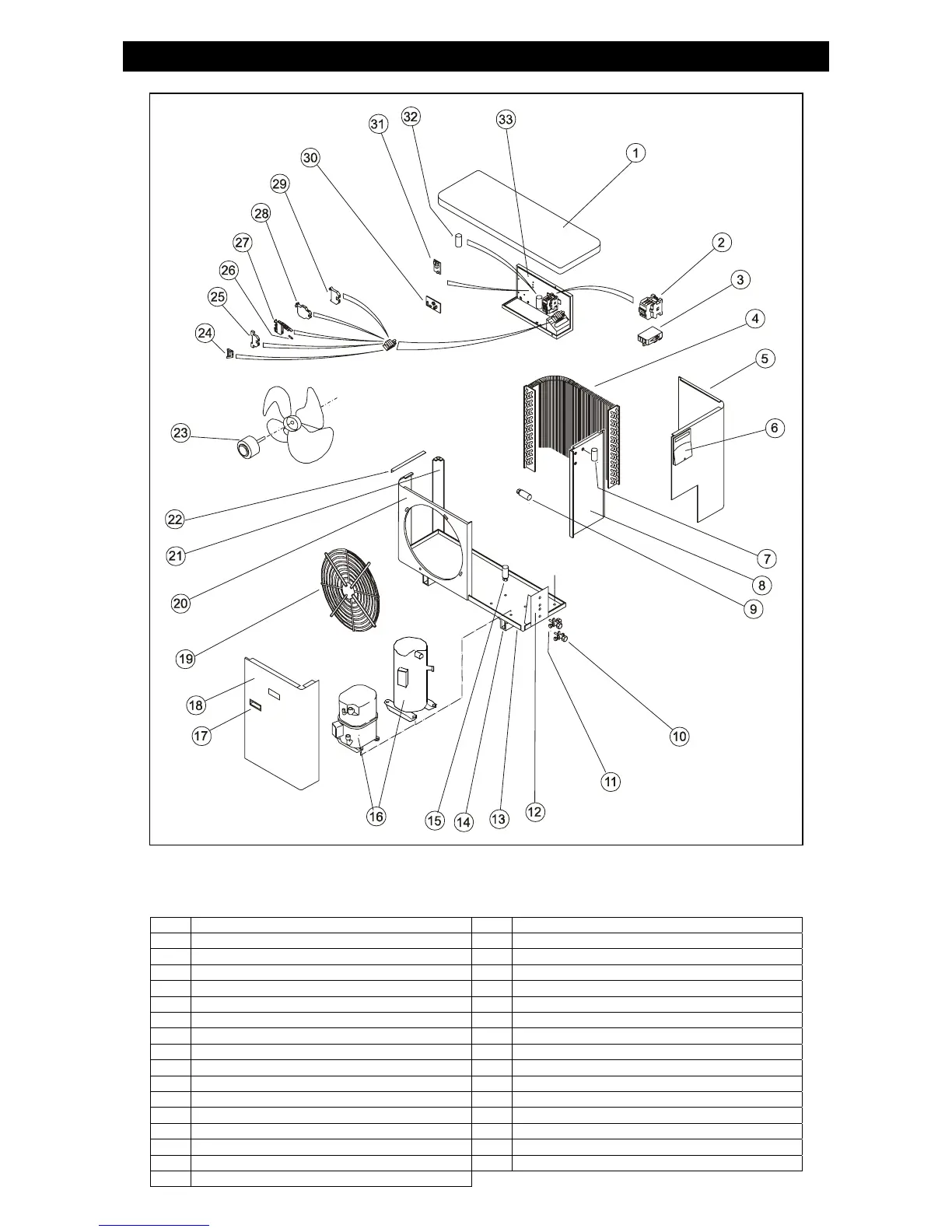

CKC OUTDOOR UNIT COMPONENT IDENTIFICATION
1
LID
18
FRONT ACCESS
2
CONTACTOR
19
FAN GUARD
3
OVERLOAD
20
FASCIA PANEL
4
HEAT EXCHANGER COIL
21
CORNER PANEL
5
REAR ACCESS PANEL
22
SUPPORT BRACKET
6
MAINS TERMINAL COVER
23
FAN / MOTOR ASSEMBLY
7
FAN CAPACITOR
24
END CLAMP
8
BULKHEAD PANEL
25
TERMINAL
9
HP SWITCH (MANUAL, OPTION)
26
FUSE
10
SERVICE VALVE (LIQUID)
27
FUSE TERMINAL
11
SERVICE VALVE (SUCTION)
28
TERMINAL (4 WAY)
12
VALVE PANEL
29
EARTH TERMINAL
13
BASE
30
HEAD PRESSURE CONTROL pcb
14
MOUNTING FOOT
31
3 MINUTE TIMER pcb
15
LP SWITCH
32
COMPRESSOR CAPACITOR
16
COMPRESSOR
33
ELECTRICS BOX
17
HANDLE
