cellarking CX - CX(E) Indoor Unit Component Identification

19/23
55908014-06
Capillary Entry
Mains Cable Entry
Point
Internal Earth
Terminal
ENL
SPARE
CU
CU OUT
EN
L
MAINS IN
De - Ice
Thermostat
Capacitor
Incoming Fan
Wires
Thermostat
Switch
Digital
Temperature
Display
INSIDE VIEW OF ELECTRICS BOX
4
13
11
12
15
14
2
3
1
5
6
10
9
8
7
4
CX
(
E
)

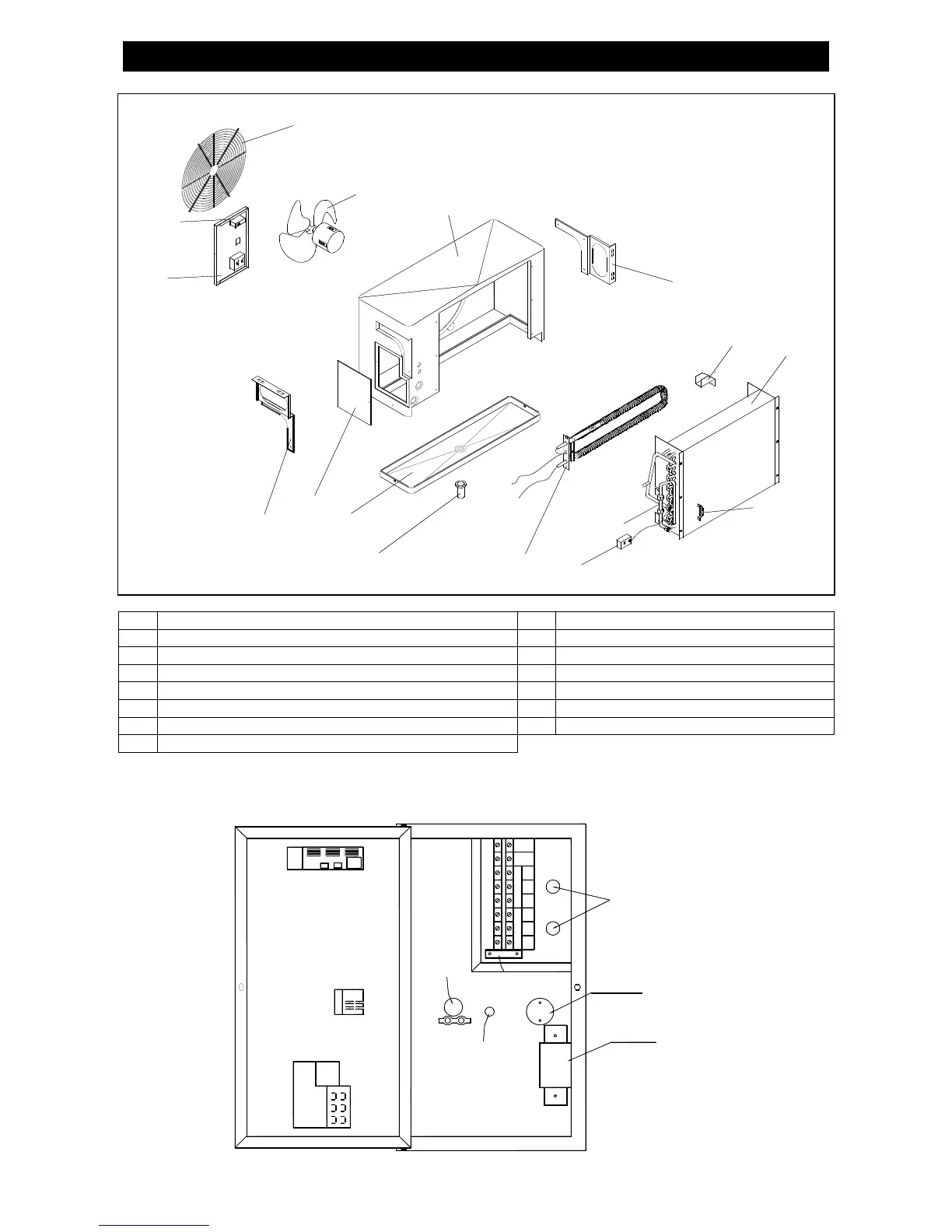

INDOOR UNIT COMPONENT IDENTIFICATION
1
Grille
9
De-ice stat (option)
2
Fan / motor
10
Heater assembly (option)
3
Case
11
Drain stub adaptor
4
Wall / ceiling mounting brackets
12
Drain tray
5
Heater bracket
13
Side access panel
6
Coil assembly
14
Electrics box door
7
Thermostat bulb & bracket
15
Digital display (option)
8
Restrictor assembly / extended pipe (option)
