13

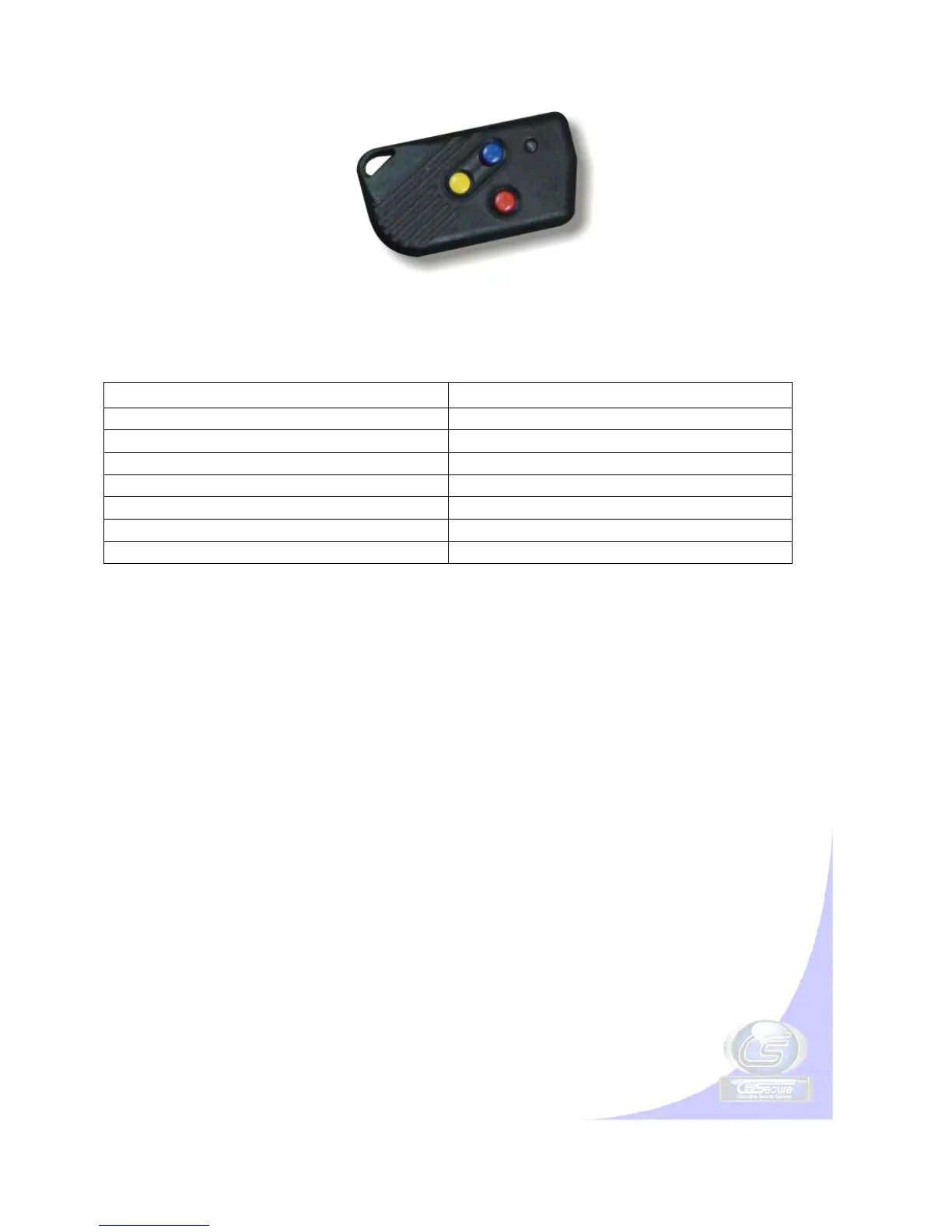

Figure 2.
Remote control.
Remote Buttons Mode
Yellow Off mode
Blue Away mode
Red Silent Panic
Yellow + Blue Stay mode
Yellow + Red Panic
Blue + Red Monitor Mode
Yellow + Blue + Red Reset
Table 2. Summary of remote control functions.
2.2. Types of Sensors.
NOTE: E12 Sensors should be used however E6 type of sensors can
be used with limited signaling. See Appendix C.
Eight types of sensors can be connected to the E12.
1. Outdoor Passive Infrared Beam Sensors (Low or High power), E6 and E12.
2. Indoor Passive Infrared Sensors (High power), E12.
3. Mini Passive Infrared Medium power, E12.
4. Mini Passive Infrared Low power, E6.
5. Universal Transmitters Hi and Lo Power for doors, Gates etc. E6 and E12.
6. Seismic Transmitter, E6 and E12.
7. Dual Tilt Sensor, E6 and E12.
8. Outdoor OPTEX dual passive infra red sensors with a Universal Hi Power
Transmitter, E6 and E12.
Note: there is a radio range difference between Low, Medium and Hi power devices.
Low Power up to 30 meters range.
Medium power up to 50 meters range.
Hi Power up to 150 meters range.
2.2.1. Outdoor Passive Infrared Beam Sensor ( Low and High Power).
