emerald Quick Installation Guide
17
3.5 Terminal with Request to Exit Switch

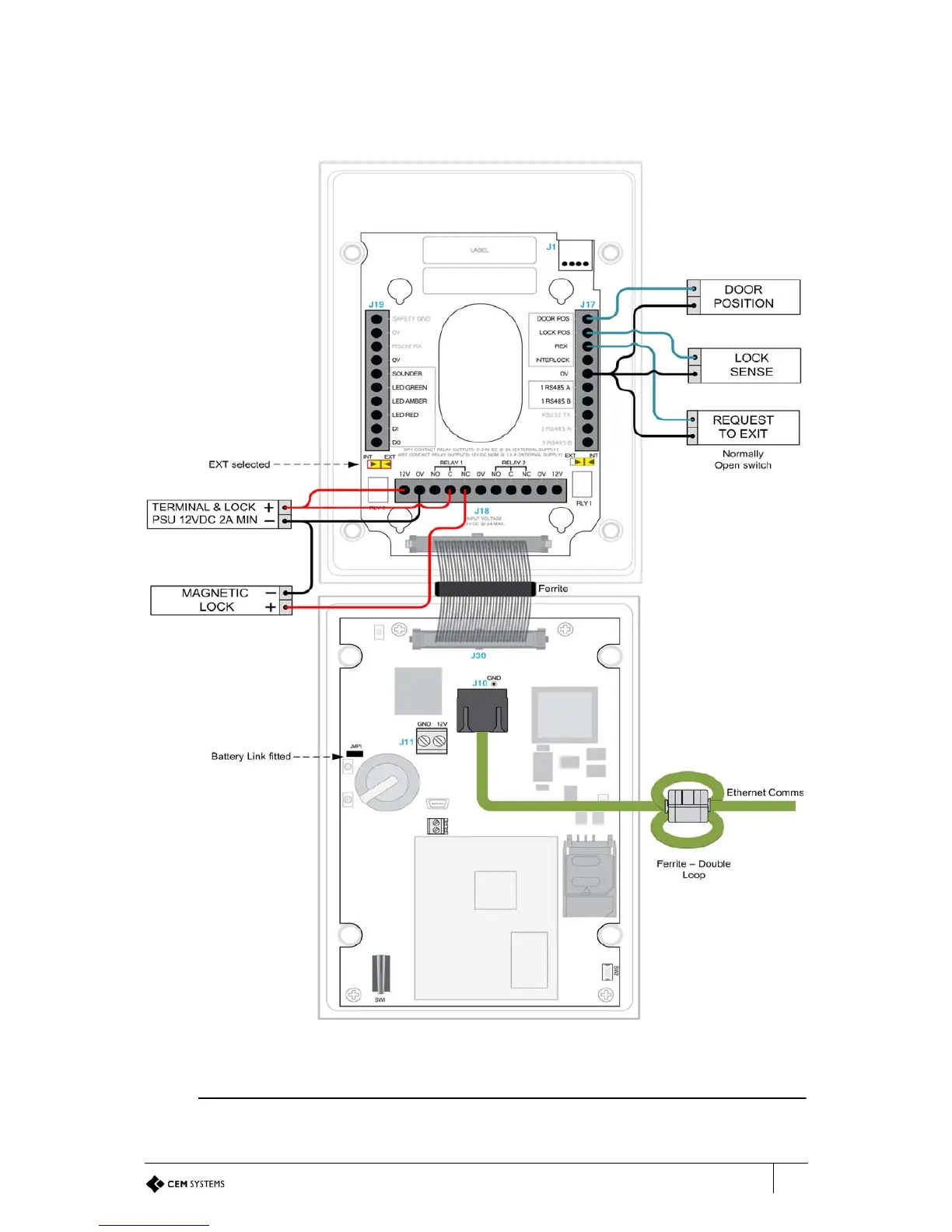

Figure 14 emerald master terminal with REX wiring diagram
Note
Terminals J1 and J11 have no functional impact/use on this product version and are not
supported for use on UL installations.
