Part Description Qty
1 Plastic Screw M3x12 2
2 LED 5.0 1
3 LED Cover 1
4 Switch 1
5 Screw 2.8x8.0 4
6 AC Socket 3
7 Front Panel 1
8 Screw M3x6 2
9 PCB of Remote 1
10 PCB of Display 1
11 Insulation Film 1
12 Aluminum Housing 1
13 PCB 1
Part Description Qty
14 Contral Panel 1
15 Fan 50x50x20 3
16 Rear Panel 1
17 NegativeTerminal Cover 1
18 Screw M4x8 12
19 Positive Terminal Cover 1
20 Screw 2.8x8.0 4
21 Screw M4x6 4
22 Bottom Plate 1
23 Screw M5x16 1
24 Fly Nut 1
25 Ground 1
26 Screw M3x6 1

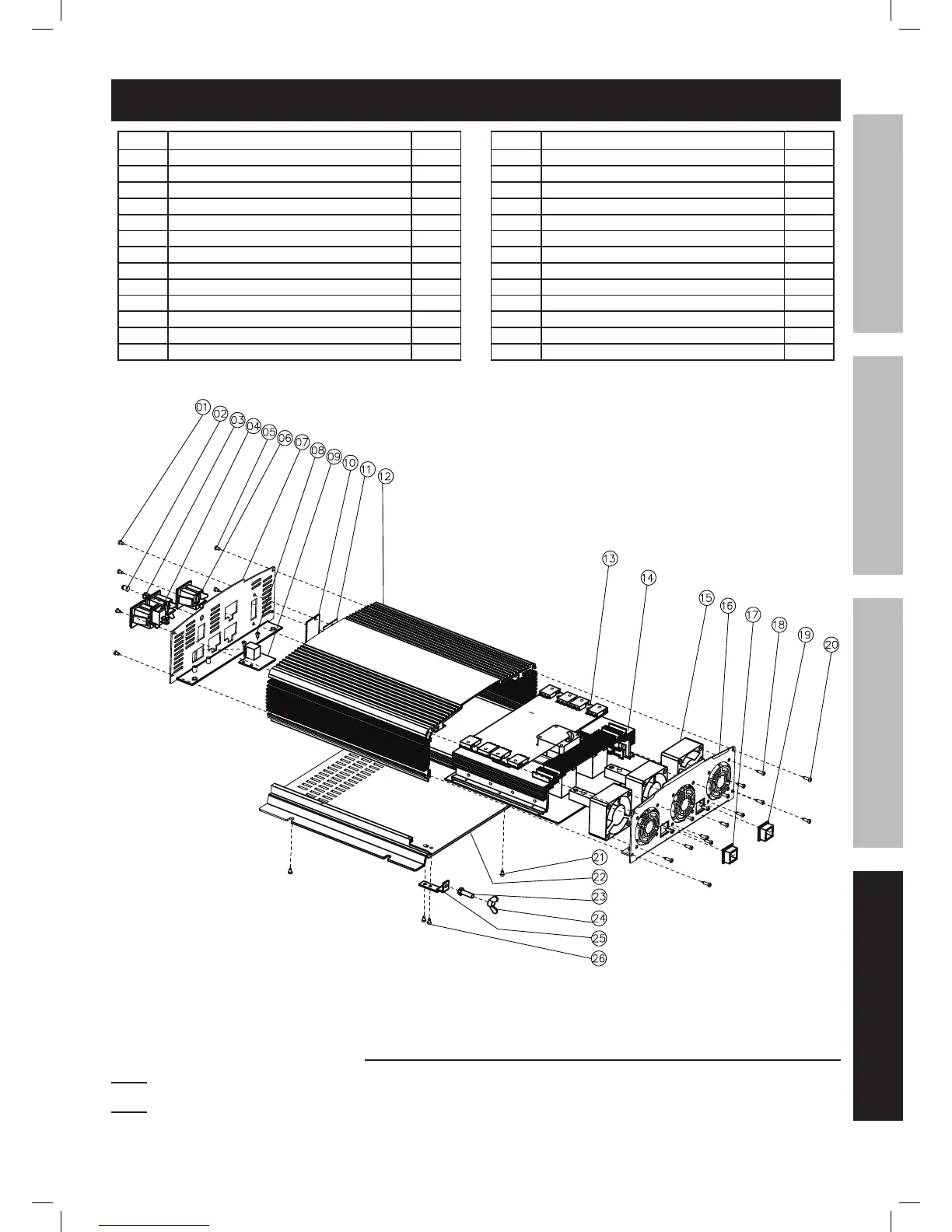

Parts List and Diagram
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
