Centek air CT-65A07+ - Wiring Diagram: Indoor Unit; Wiring Diagram: Outdoor Unit; Cable Characteristics

39

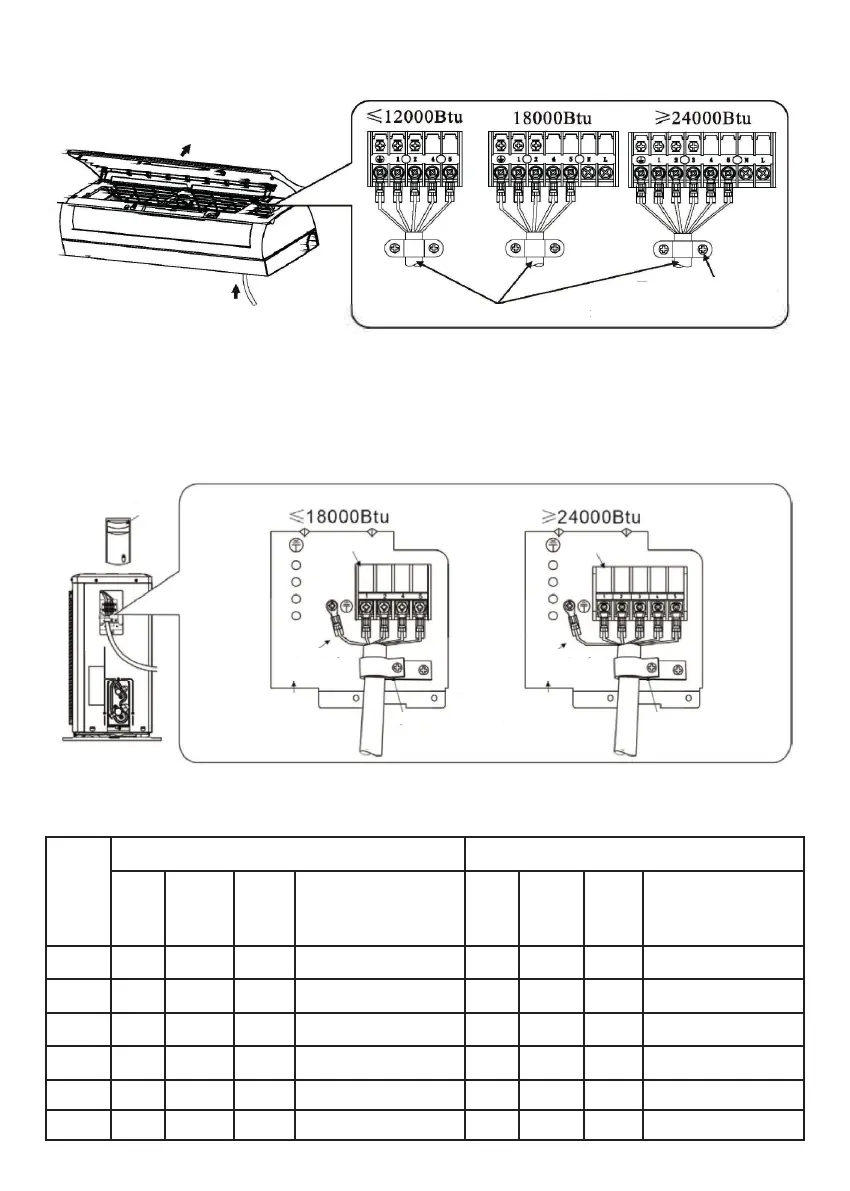

WIRING DIAGRAM: INDOOR UNIT
WIRING DIAGRAM: OUTDOOR UNIT
connecting cables
connecting cables
clamping bar
cap
more than 5 mm
electrical panel
ground wire
electrical panel
ground wire
clamping bar clamping bar
output shield output shield
connecting cables connecting cables
Model Electrical cable Interconnect cable
Length,
m
Number
of cable
cores, pcs
Section,
mm
2
Outer braid material Length,
m
Number
of cable
cores,
pcs
Section,
mm
2
Outer braid material
CT-65A07+ 1.5 3 1 Polyvinyl chloride 4 5 1 Polyvinyl chloride
CT-65A09 1.5 3 1 Polyvinyl chloride 4 5 1 Polyvinyl chloride
CT-65A12 1.5 3 1 Polyvinyl chloride 4 5 1 Polyvinyl chloride
CT-65A18 1.5 3 1,5 Polyvinyl chloride 4 3 1,5 Polyvinyl chloride
CT-65A24 1.5 3 2,5 Polyvinyl chloride 4 3 2,5 Polyvinyl chloride
CT-65A30 1.5 3 2,5 Polyvinyl chloride 4 3 2,5 Polyvinyl chloride
CABLE CHARACTERISTICS
