Data Logger Instruction Manual
6
bit3:
no use.
bit4:
1
REL
bit5:
1
HOLD, 0
not HOLD
bit6:
1
LOW BATTERY , 0
BATTERY NORMAL
bit7:
1
°C 0
°F
3
th
BYTE:
bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
Auto Power Off Memory full resolution sign OL
bit0:
1
main window value is OL, 0
not OL
bit1:
1
main window value is minus, 0
main window value is plus.
bit2:
1
4
th
byte and 5
th
byte represent #### , 0
4
th
byte and 5
th
byte represent ###.#
bit6:
1
Memory is full. 0
Memory is not full.
bit7:
1
Auto power off enabled. 0
Auto power off disabled.
4
th
BYTE:
first two BCD code of main window value.
5
th
BYTE:
last two BCD code of main window value
6
th
BYTE:
BCD code of month.
7
th
BYTE:
BCD code of day.
8
th
BYTE:
BCD code of hours.
9
th
BYTE:
BCD code of minute.
10
th
BYTE:
end byte, it value is 3, 1
nd
and 10
th
are used to check frame error.

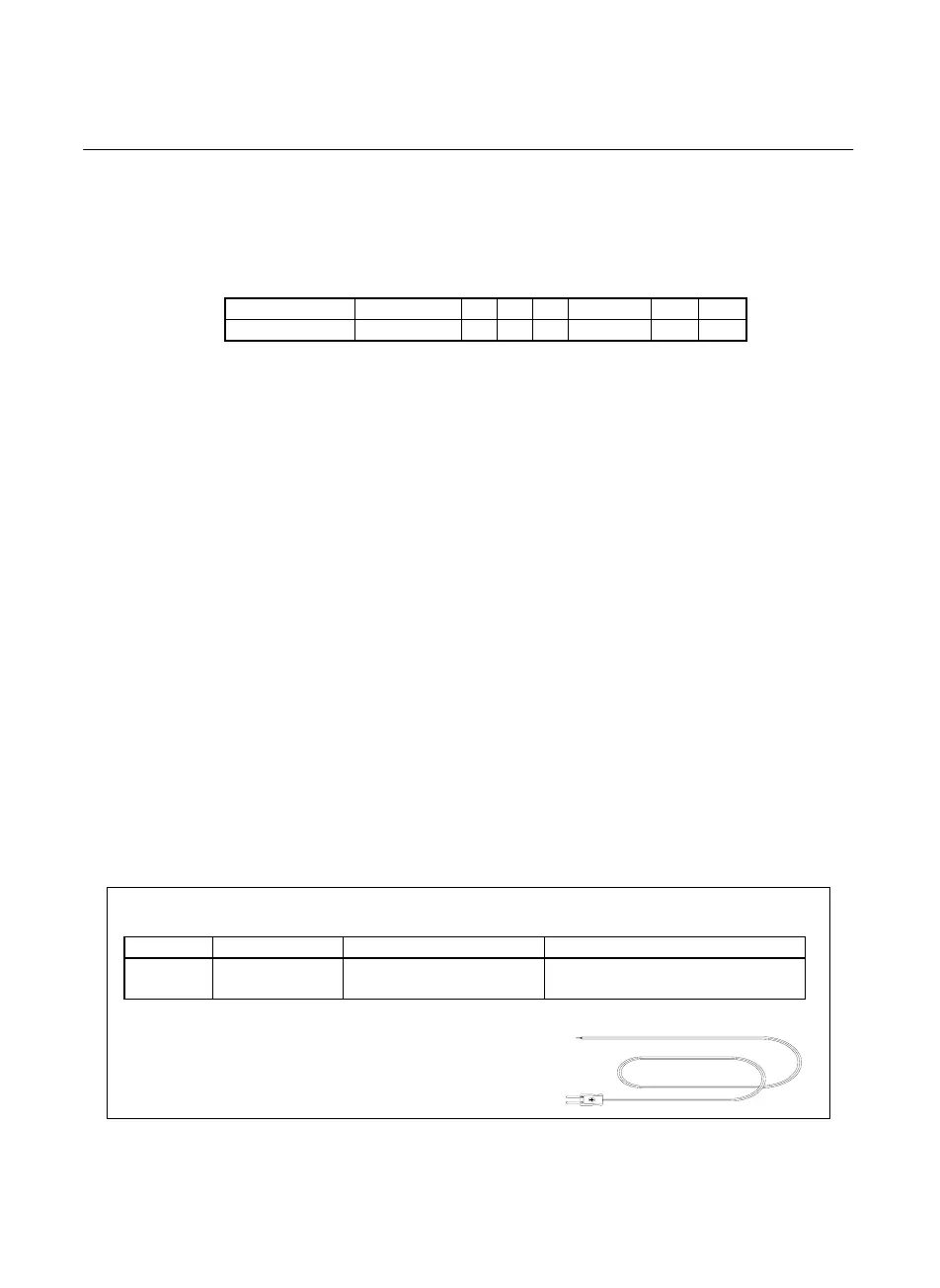

Appendix: Thermo couple probe specification
Model Range Tolerances Description
TP-K01
Bead probe
-50 to 200
-58 to 392
2.2 or 0.75
(3.6 or 0.75)
with Teflon tape insulation Maximum
insulating temperature : 260
TP-K01:
probe for general condition measurements, especially for
complex and hard to reach places.
