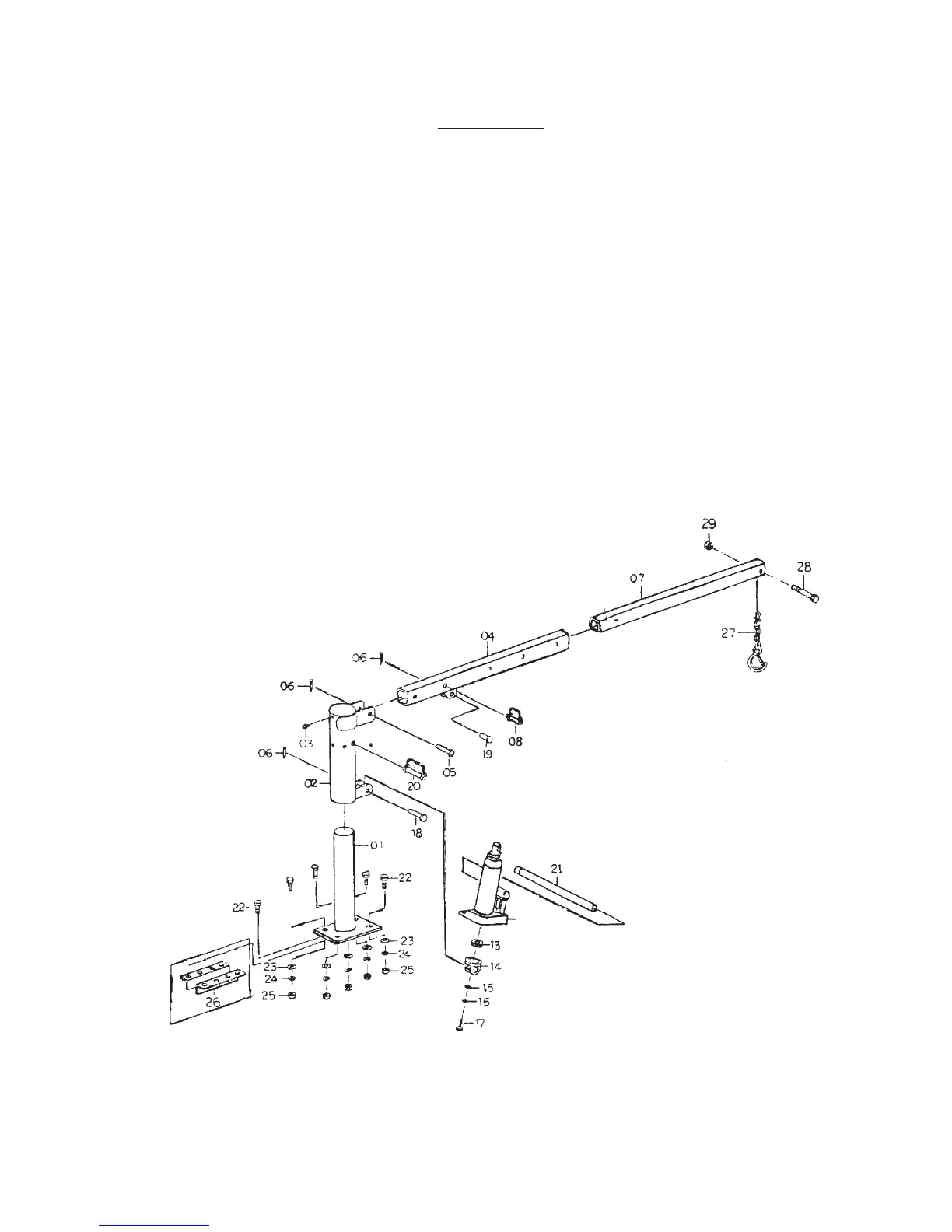

PARTS LIST
Item # Description Qty Item # Description Qty
1 Base 1 17 Bolt 1
2 Post 1 18 Medium Pin 1
3 Grease Fitting 1 19 Small Pin 1
4 Boom 1 20 Large Lock Pin 1
5 Large Pin 1 21 Jack Handle 1
6 Cotter Pin 3 22 Bolt 5
7 Extendible Boom 1 23 Washer 5
8 Small Lock Pin 1 24 Lock Washer 5
12 Pump Unit * 1 25 Nut 5
13 Pump Release Valve 1 26 Steel Angle 2
14 Jack Support 1 27 Hook and Chain 1
15 Washer 1 28 Bolt 1
16 Spring Washer 1 29 Nut 1
Pg. 9 -- SKU 1647
