OPERATION
Step 1: Release the LARGE LOCK PIN (#20) located on the body of the POST (#2) and swivel
the POST so that the BOOM (#4) is pointing towards the object to be lifted.
Step 2: Position the HOOK AND CHAIN (#27) over the article to be moved by adjusting and
locking the EXTENDIBLE BOOM (#7) in place using its SMALL LOCK PIN (#8). Do
not exceed the weight limits marked on the side of the boom.

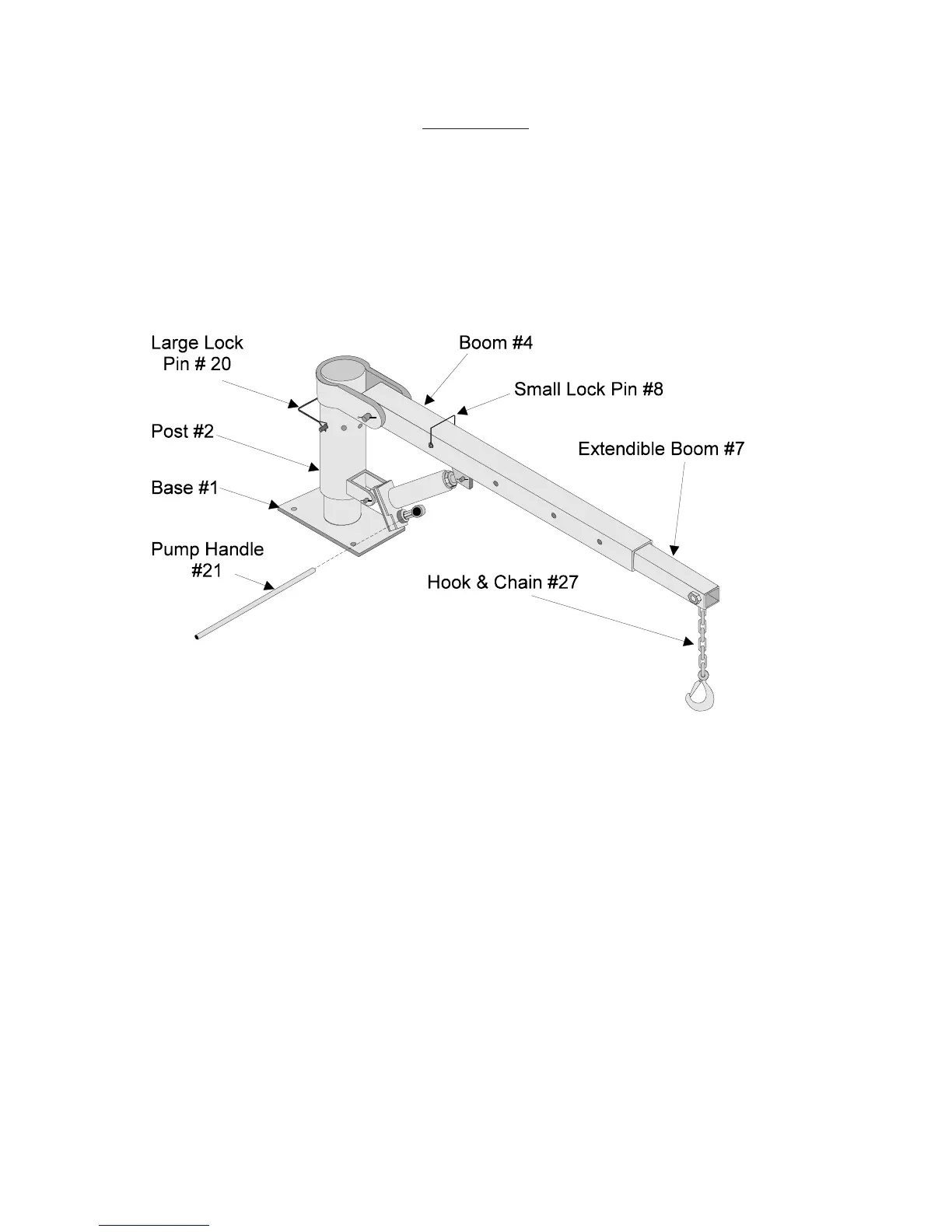

Figure 8 — Operating the Pickup Truck Lift
Step 3: Hook around the article so that its weight is centered.
Step 4: Place the slotted end of the PUMP HANDLE (#21) over the PUMP RELEASE VALVE
(#13) and close it by turning it in a clockwise direction.
Step 5: Insert the PUMP HANDLE into its connector and lift the BOOM by pumping the handle
in an up and down motion.
Step 6: When the article has been lifted to the desired height, it may be moved over the truck
bed by slowly swiveling the BASE (#1) on its POST until the object is directly over the
truck bed. Do not attempt to extend the BOOM further while the object is still At-
tached. If the object needs to be moved further; lower it, adjust the BOOM, and
re-lift it.
Step 7: Lower the object onto the truck bed by using the PUMP HANDLE to slowly turn the
PUMP RELEASE VALVE in a counterclockwise direction.
Pg. 8 -- SKU 1647
