Step 8: Attach the unit to the desired position by bolting the BASE down using the two STEEL
ANGLES (#26) as backing plates (see Figure 7). On most trucks a desirable position
is just behind the wheel well so that the BOOM may be stored over the wheel well.

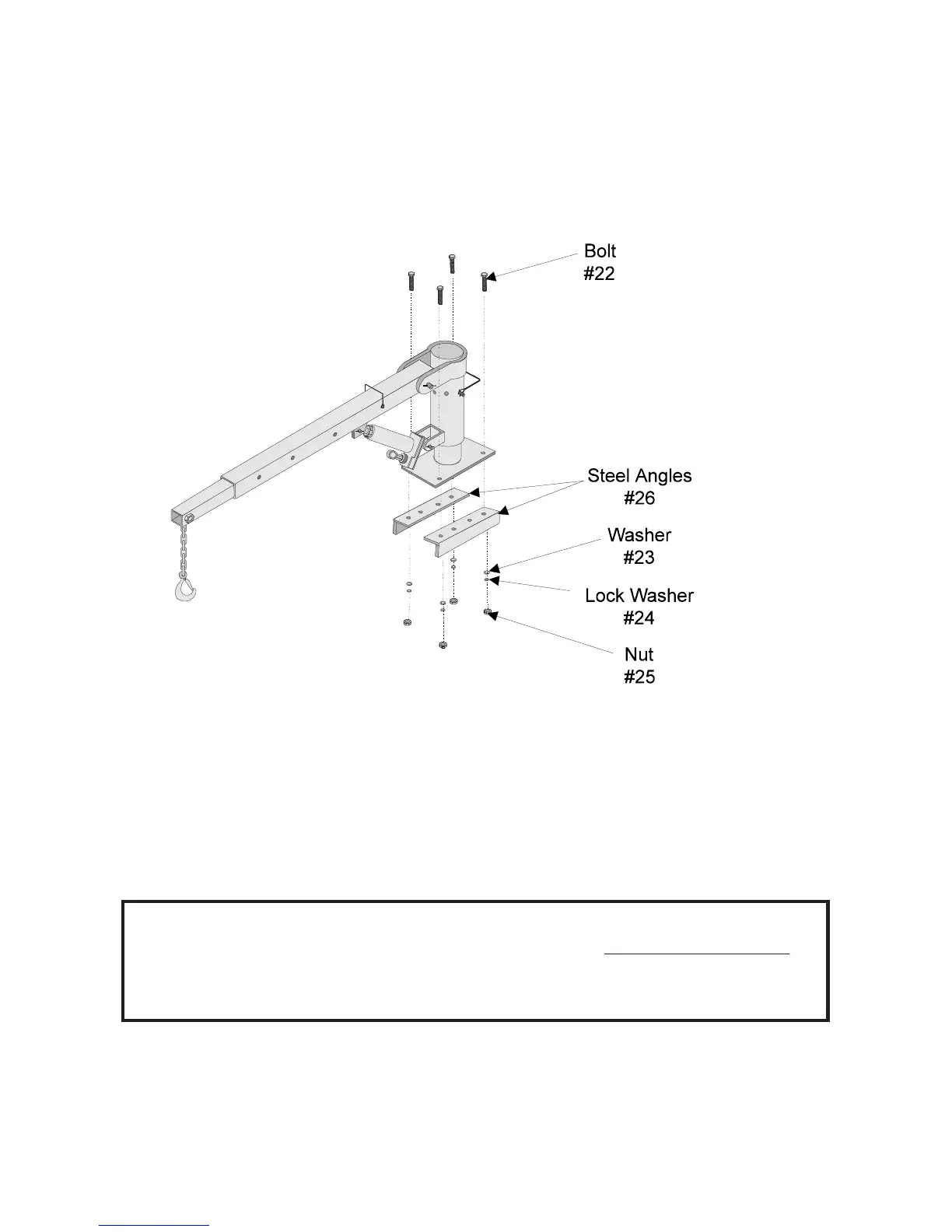

Figure 7 — Installing the Truck Lift
Pg. 7 -- SKU 1647 REV 05/01
Warning: When installing the Pick Up Truck Lift, please note that
the Base (#1) must be securely bolted to the frame of the truck;
bolting the truck lift to the bed of the truck wil not provide the
necessary support needed.
