Central Machinery 67090 - Parts List and Assembly Diagram

Item 67090 For technical questions, please call 1-888-866-5797. Page 9

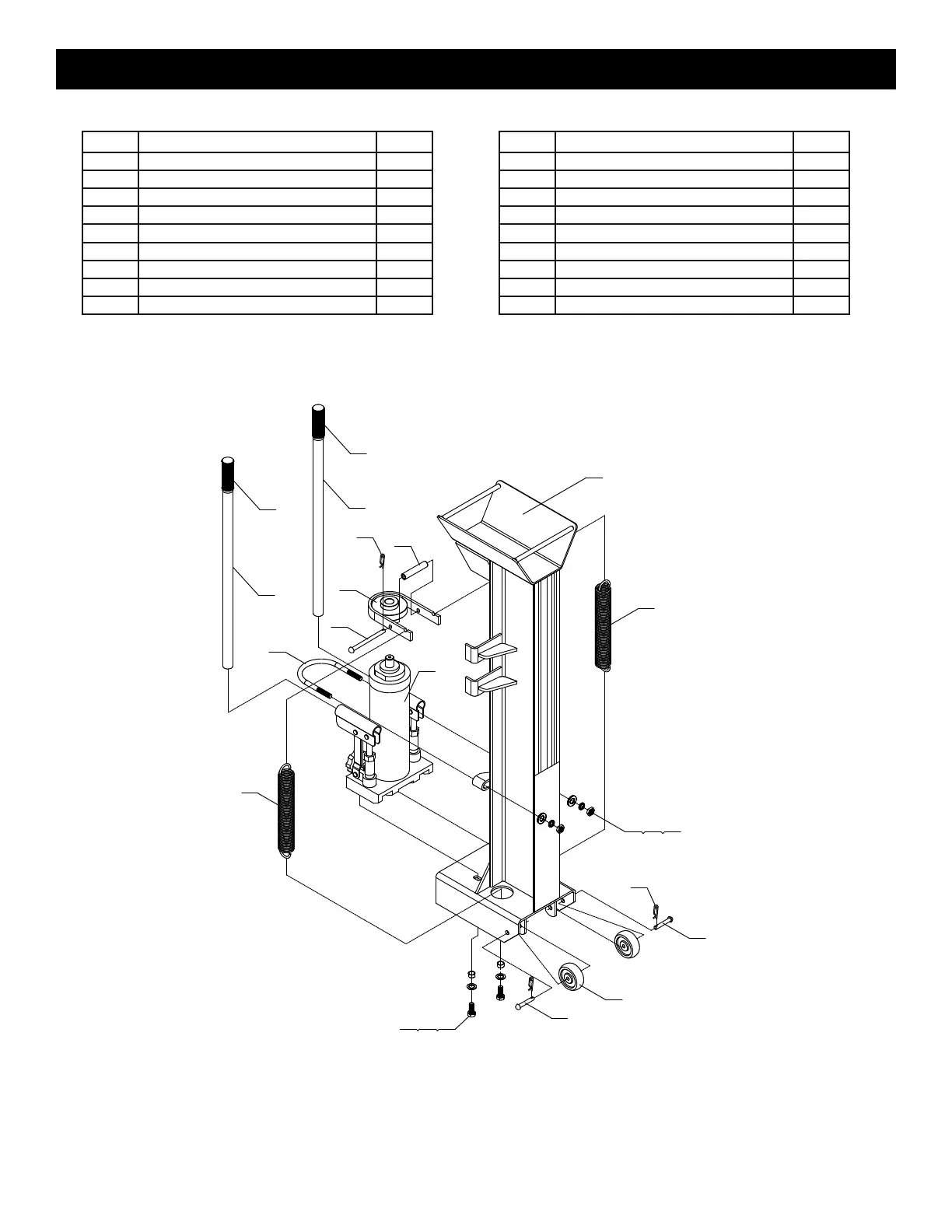

Parts List and Assembly Diagram
Part Description Qty.
1 Wedge Base 1
2 Handle Grip 2
3 Jack Handle 2
4 Spacer 1
5 Lock Spring 3
6 Ram Plate 1
7 Pin 1
8 U-Bolt 1
9 Ram 1
Part Description Qty.
10 Ram Return Spring 2
11 Hex Bolt M8x20 2
12 Lock Washer Ø10 2
13 Flat Washer Ø8 2
14 Wheel Axle 2
15 Wheel 2
16 Large Flat Washer Ø10 2
17 nut M10 2
18 Spacer 2
2
3
2
3
5
4
6
7
8
10
9
1
10
16
12 17
5
14
15
14
1118 13
