Page 17For technical questions, please call 1-888-866-5797.Item 42202
Part Description Qty
1A Bolt Plug 1
2A Rubber Washer 1
3A Spring 1
4A Needle Valve 1
5A Spring 1
6A Rubber Washer 1
7A Gun Body 1
8A Seal Washer 1
9A Connector 1
Part Description Qty
10A Seal Washer 2
11A Set Screw 2
12A Siphon Pipe 1
13A Ceramic Nozzle - .18″ 1
14A Ceramic Nozzle - .19″ 1
15A Ceramic Nozzle - .22″ 1
16A Ceramic Nozzle - .27″ 1
17A Connector 1

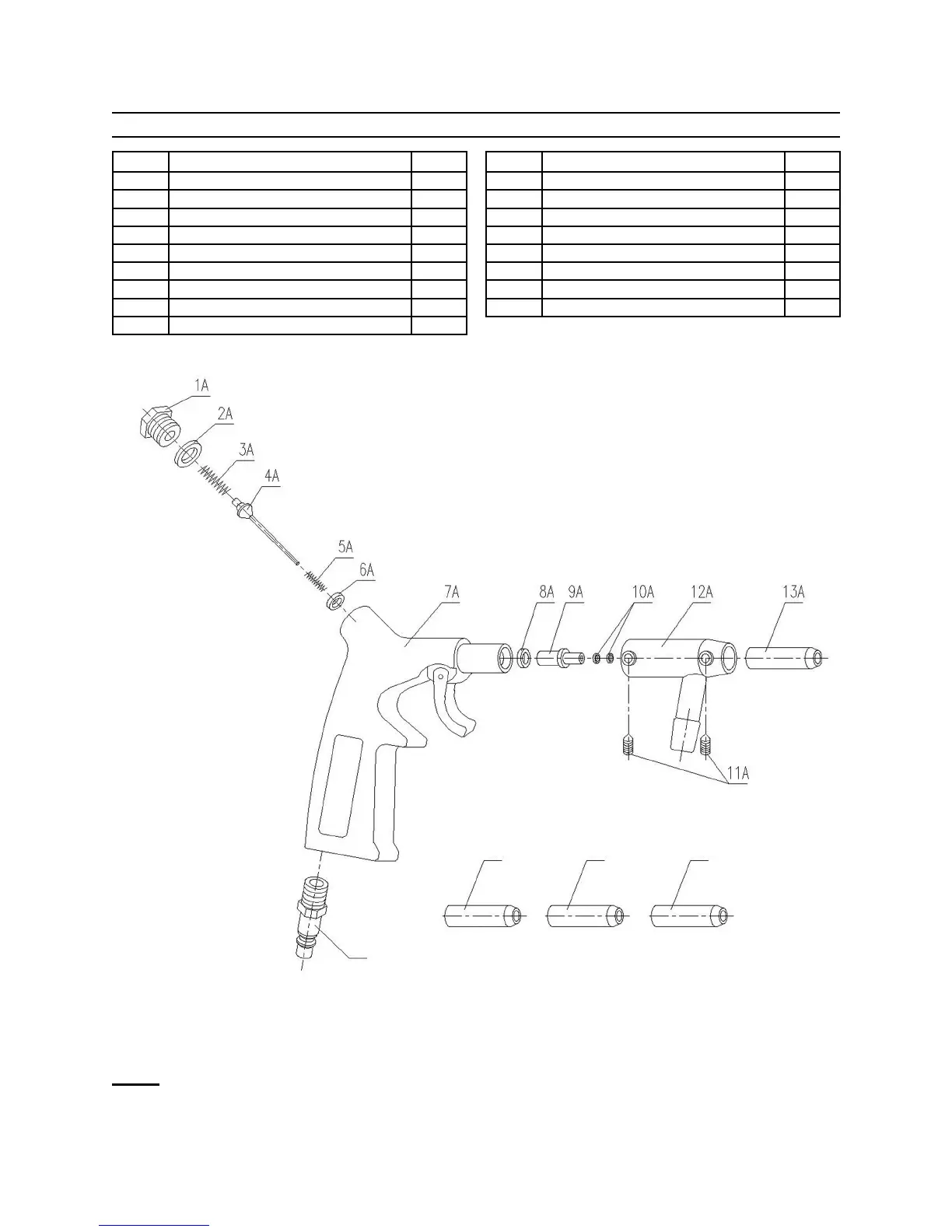

BLAST GUN PARTS LIST & PARTS DIAGRAM
Note: When ordering replacement parts, add an “A” suffix to part numbers shown in this
Assembly Diagram.
14A
17A
15A
16A
To Next Page
