Central Pneumatic 42202 - Blast Cabinet Parts List & Assembly Diagram

40 pages

To Next Page

To Previous Page

Page 16 For technical questions, please call 1-888-866-5797. Item 42202

Part Description Qty

1 Body 1

2 Foam Gasket 1

3 Side Door 1

4 Vent Bafe 1

5 Door Latch 1

6 Door Edge Trim 1

7 Blast Gun 1

8 Siphon Hose 1

9 Cap 1

10 Connector 1

11 Rubber Washer 1

12 Siphon Tube 1

13 Hopper 1

14 Metal Floor 1

15 Nut 1

16 Glove Port 2

17 Glove Clamp 2

18 Blast Glove 2

19 Rubber Tube 1

Part Description Qty

20 Rubber Plug 1

21 Rubber Trim 1

22 Window Liner 3

23 Tempered Glass Window 1

24 Window Frame 1

25 Pan Screw 26

26 Hinge 1

27 Bolt 6

28 Rubber Trim 1

29 Foam Gasket 1

31 Bolt 12

32 Spring Washer 18

33 Nut 18

34 Strengthening Piece 1

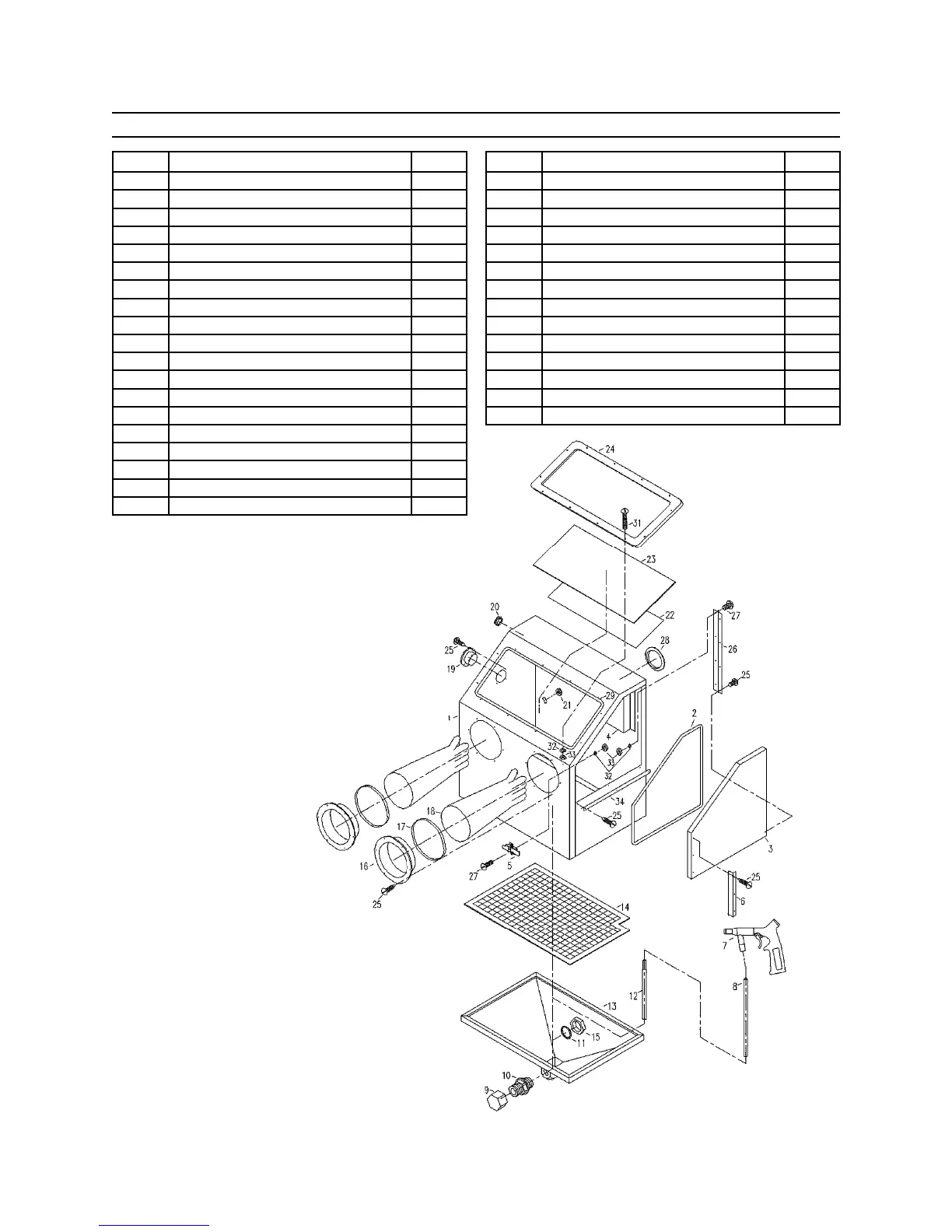

BLAST CABINET PARTS LIST & ASSEMBLY DIAGRAM
