Central Pneumatic 64142 - Page 10

Page 10 ?*,)(.82<&80;)@+.'(&*<'A)3;.0'.)80;;)#BCCCBC!!BDEFE5 Item 64142
GH?:IJ KL:MHINKO PHNOI:OHOQ:G:IRL
?&7+,.)U1))G(0(&*<0,X)H&,)G+33;X)G.(+3
N
L
L O
M
C C
Non-lubricated Tools
Lubricated Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B
B
A
A
C
D

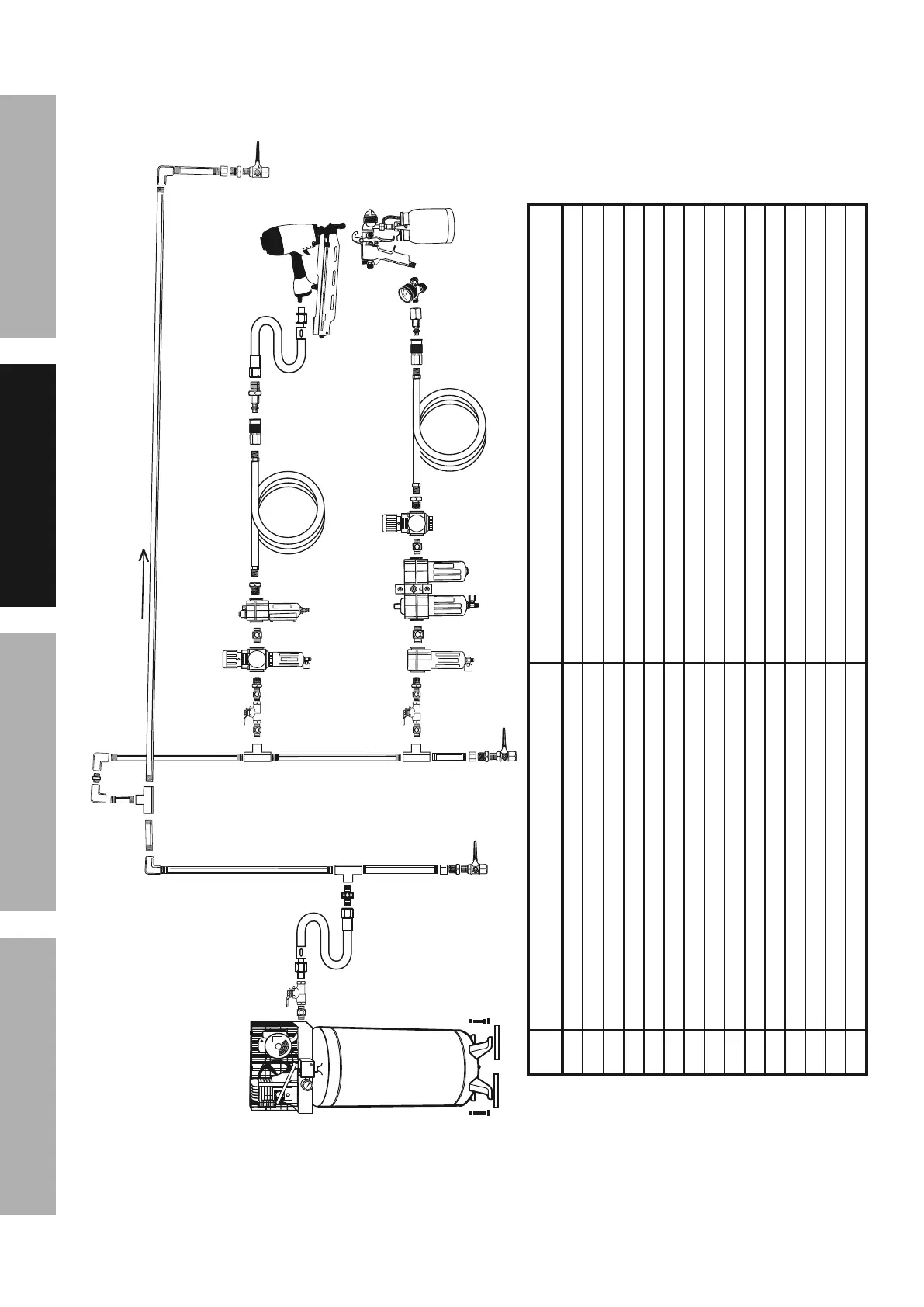

W.'8,&3(&*< ?+<8(&*<
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to Tool
I Filter Prevents dirt and condensation from damaging Tool or workpiece
J Regulator Adjusts air pressure to Tool
K Lubricator (optional) For air Tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at Tool
