Central Pneumatic 68029 - Specifications; Initial Assembly; Air Supply

Page 7For technical questions, please call 1‑800‑444‑3353.SKU 68029
Specications
Operating Air
Pressure
70-120 PSI
Max. Air Pressure 120 PSI
Air Inlet 1/4” -18 NPT
Fastener Type
Arrow T-50 Staples; 7/16”
Width Crown, 5/32" to 5/8" L
Magazine Capacity 100 Staples
Components and Controls
INITIAL ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
Unpacking
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon as
possible.
• This air tool may be shipped with a
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen, carbon
dioxide, combustible gases, or
any other bottled gas as a power
source for this tool.
1. Connect a regulator valve, an in-line
shut off valve and 1/4” NPT (all sold
separately) to the Quick Coupler.
Use threaded tape for all threaded
connections. The air hose must be
long enough to reach the work area
with enough extra length to allow free
movement while working. An in‑line
shutoff ball valve is an important
safety device because it controls
the air supply even if the air hose is
ruptured. The shutoff valve should be
a ball valve because it can be closed
quickly. See pages 8 and 9 for Air
Tool Setup procedures.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil into the airline connection before
operation. Add a few more drops after
each hour of continual use.
2. Attach an air hose to the compressor’s
air outlet. Connect the air hose to the air
inlet of the tool. Other components, such

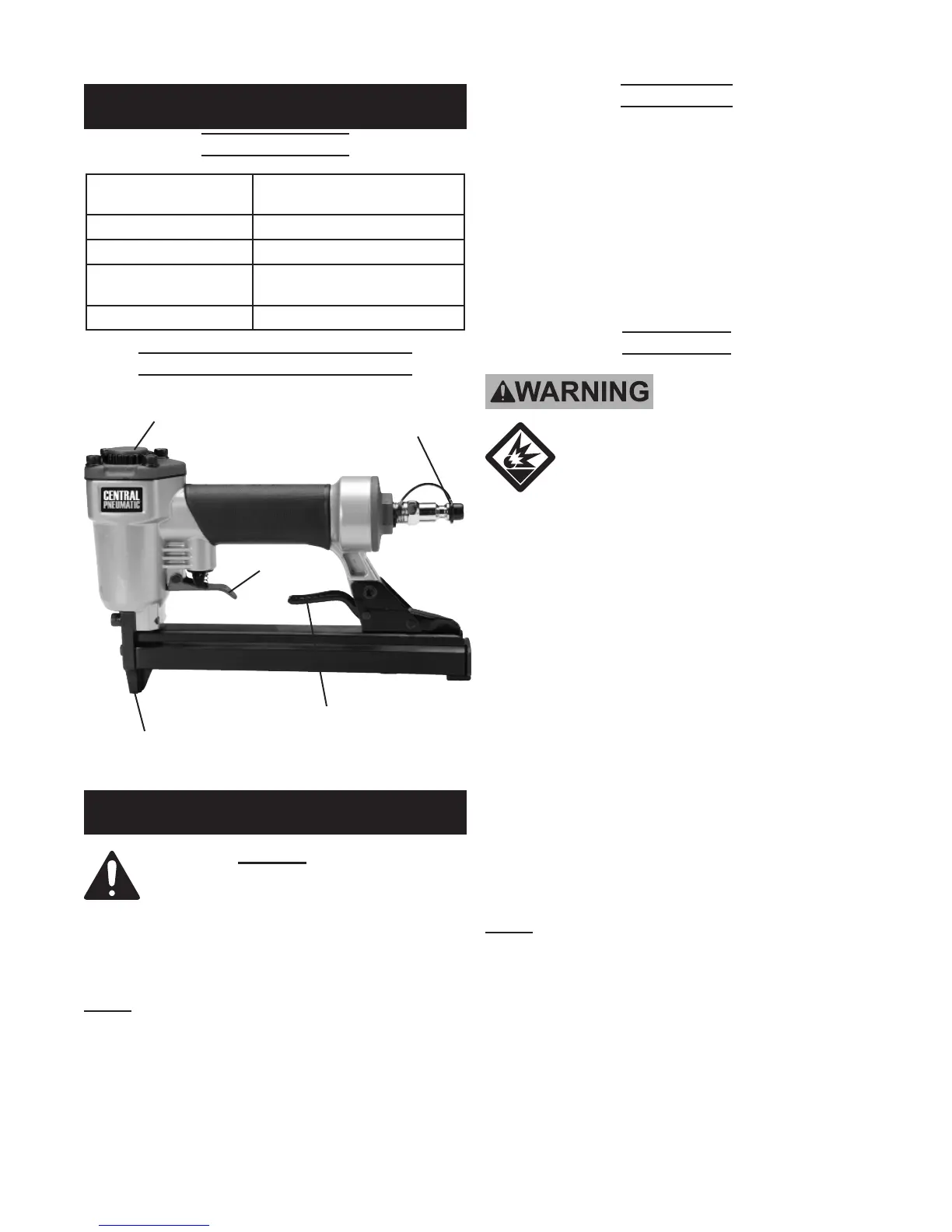

Trigger (31)
Exhaust Deector (3)
Air Inlet
Plug (58)
Magazine
Release (49)
Drive
Guide (35)
Initial Tool Setup/Assembly
Functional Description
