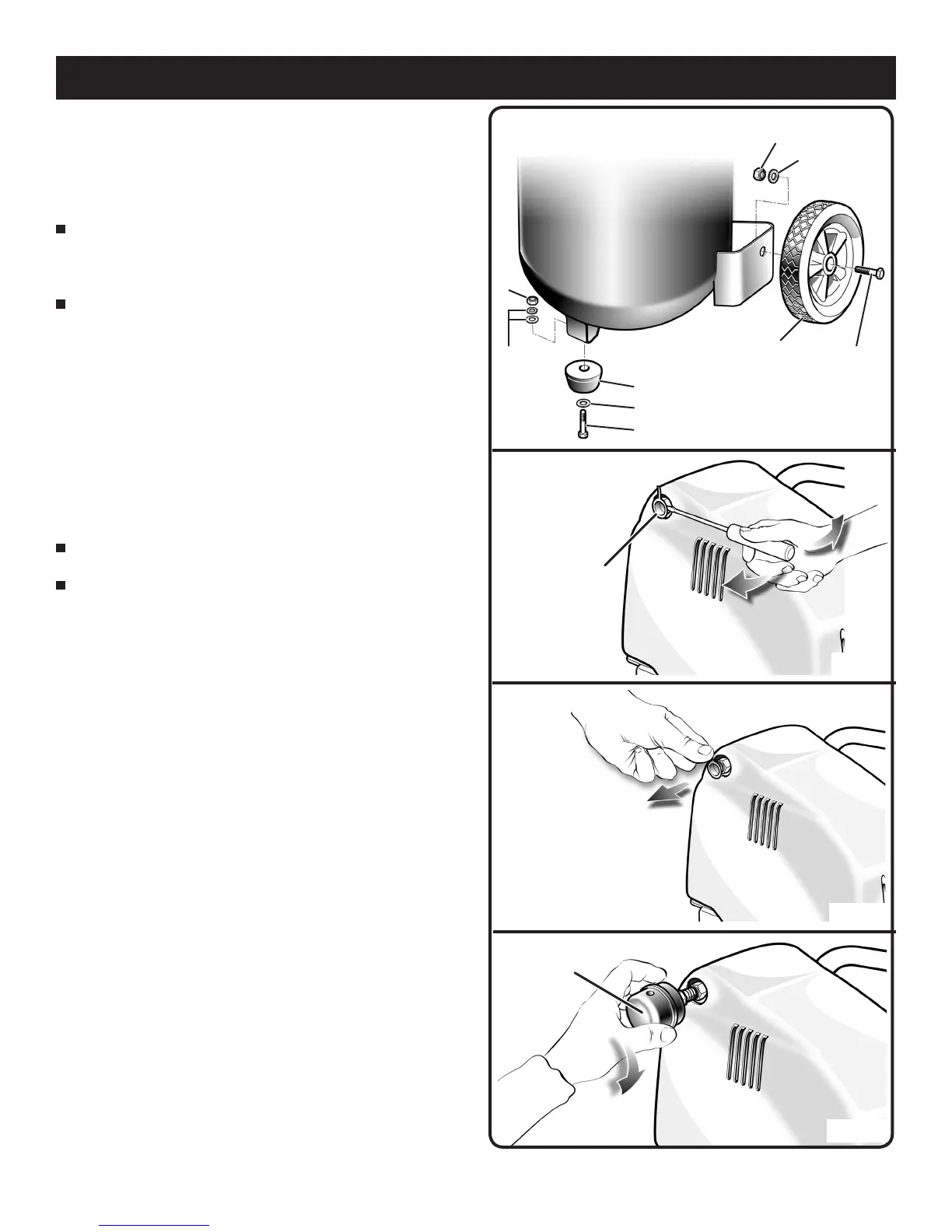

ASSEMBLY
ASSEMBLING THE RUBBER FOOT AND
WHEELS
See Figure 3.
Mount the rubber foot as shown in figure.
Tighten firmly with an open-end wrench (not included)
to secure it in position.
Mount the wheels as shown in figure.
Tighten firmly with an open-end wrench (not included)
to secure the wheels in position.
Fig. 3
WHEEL
WASHER
SCREW
SCREW
RUBBER FOOT
NUT
WASHER
NUT
WASHER
FITTING THE AIR FILTER
See Figures 4 - 5 - 6.
Remove the transportation stop with a screwdriver (or
by means of other similar sharp tool) (Fig. 4 - 5).
Screw the air filter securely to the equipment, by turning
it clockwise (Fig. 6).
Fig. 4
TRANSPORTATION
STOP
Fig. 5
Fig. 6
AIR FILTER
