1. To open the Cannister (82), press down on the Shaft (68) and swing the Latch
(64) and Cannister Cover (89) open.
2. Check the Adjuster Plate (86) inside the Cannister (82). The Platform can be
adjusted up and down to use various lengths of nails from
3
/
4
” to 1-
3
/
4
”:
A. Between 3/4” and 1” Long Nails
(Use top setting).
B.
Between 1” and 1-1/4” Long Nails
(Use middle setting).
C.
Between 1-1/4” and 1-3/4” Long Nails
(Use bottom setting).

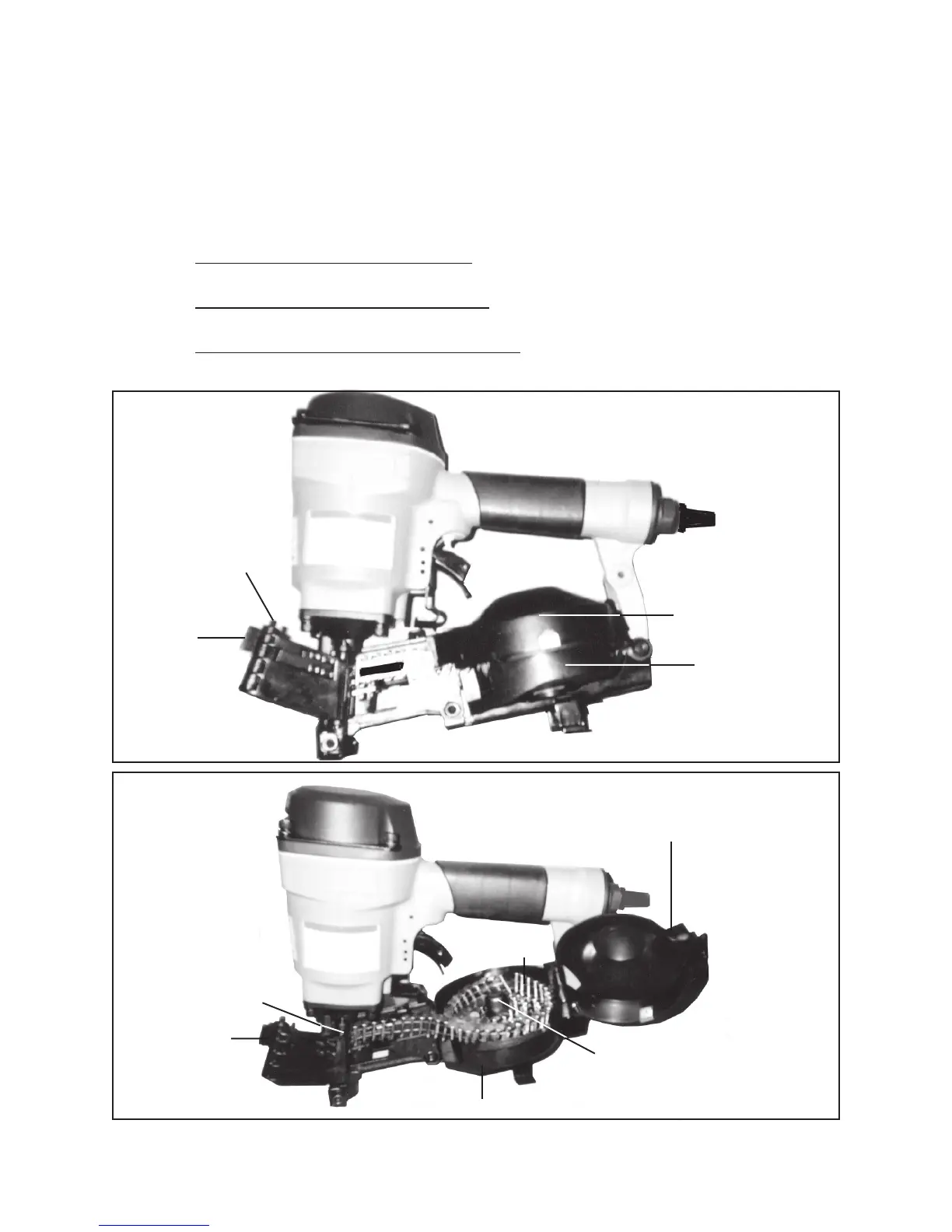

CANNISTER COVER
(89)
CANNISTER COVER (89)
(TURN TO ADJUST)
CANNISTER (82)
CANNISTER (82)
NAILS
ADJUSTER PLATE (86)
LATCH
(64)
LATCH
(64)
SHAFT (68)
FEED HOOK (50)
