Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn off the tool, detach the air supply, safely discharge any residual air pressure in the tool, and
release the trigger before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY:
Do not adjust or tamper with any control or component in a way not specifically explained within
this manual. Improper adjustment can result in tool failure or other serious hazards.
Priming:
1. Use the Wrench (36) to unscrew and remove the
Cylinder Cap (33) from the bottom of the Riveter.
2. Use a pair of pliers (not included) to remove the
Piston Assembly (30-33) from the Air Cylinder (29).
3. Hold the Air Cylinder (29) upside down, and pour
in hydraulic fluid (not included). The fill level
should only reach the top of the Housing (15).
4. Insert the Piston Assembly (30-33)
back into the Air Cylinder (29).
5. Use the Wrench (36) to firmly screw the
Cylinder Cap (33) back onto the Air Cylinder (29).
Wrench
(36)
Air Cylinder
(29)
Air Cylinder
(29)
Air Piston
Lock Nut (30-3)
Piston Asm.
(30-33)
Cylinder
Cap (33)

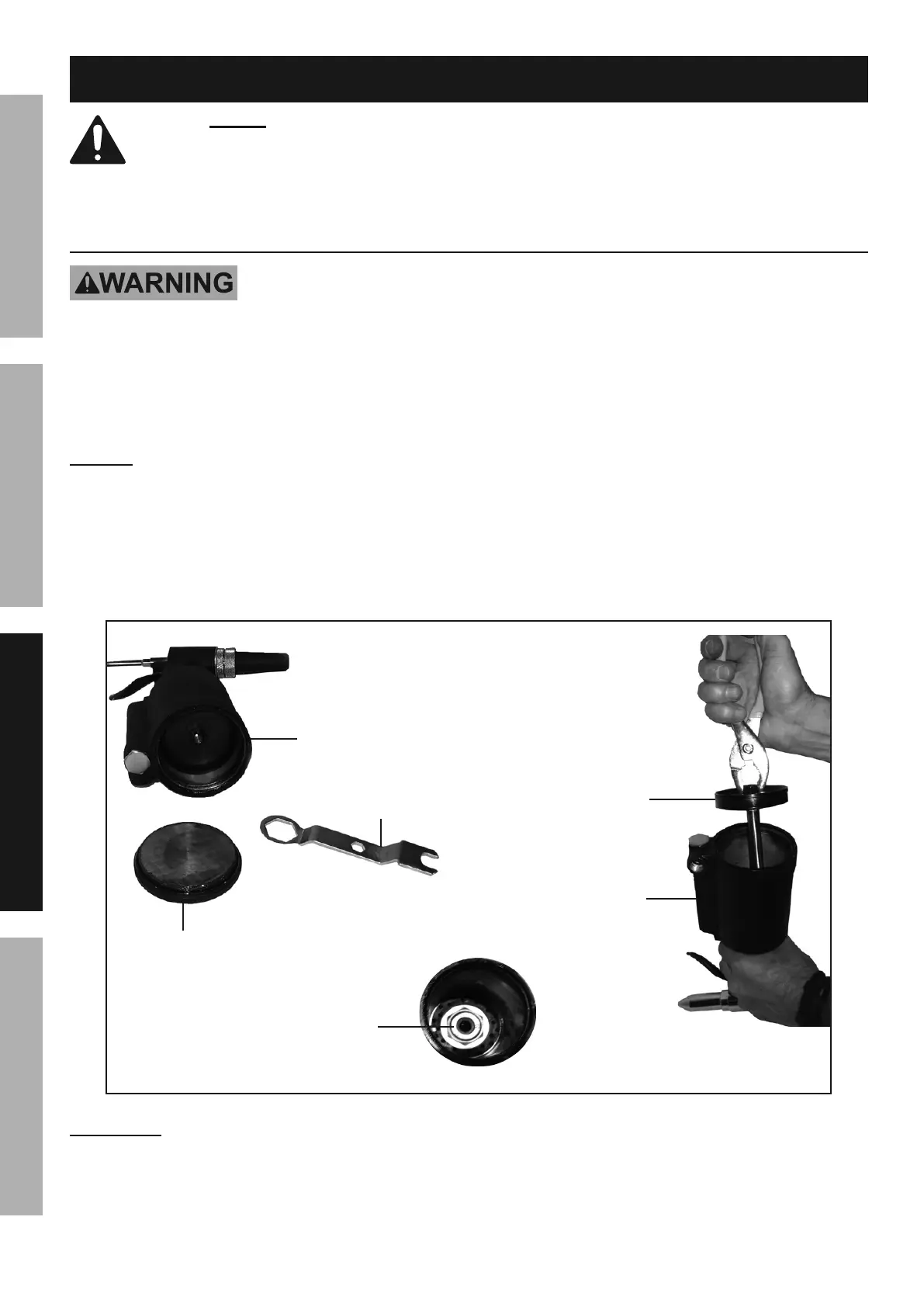

Figure C: Priming the Cylinder
Nosepieces:
1. The Riveter comes with four Nosepieces:
(1A = 3/16″), (1B = 5/32″), (1C = 1/8″), (1D = 3/32″).
2. Use the Wrench (36) to remove the
old nosepiece and install the new one.
Tighten the new nosepiece in place before use.
