Central Pneumatic Earthquake 92421 - General Operating Instructions; Operation, Speed, and Torque Adjustment; Force Application and Direction Control

Page 9For technical questions, please call 1-800-444-3353.SKU 92421
objects) nearby that will present a
hazard while working.
General Operating Instructions
1. WARNING! Use only 1” Drive Impact
type sockets (sold separately).
2. WARNING! The Impact Wrench is
heavy and supplies powerful amounts
of torque and should be operated
with BOTH hands. Failure to do
so can lead to personal injury or
property damage.
3. If an automatic oiler is not used, add
a few drops of Pneumatic Tool Oil
to the airline connection before use.
Add a few drops more after each
hour of continual use.
4. Push and snap the socket (not
included) onto the Anvil (38).
5. The Direction Valve (17) has three
forward and three reverse speed
settings Turn Direction Valve to the
right toward the Trigger Handle (1) to
tighten. See Figure 1, below.
6. Place the socket over the nut you
wish to tighten.
7. Grip tool rmly with BOTH hands and
gently squeeze Trigger (13).
8. Adjust air ow by turning Air
Regulator Knob from positions 1
through 3. Position 1 allows the
lowest amount of air ow, and
Position 3 the highest.
9. If the tool requires more force to
accomplish task, verify that the tool
receives sufcient, unobstructed
airow (CFM) and increase the
pressure (PSI) output of the regulator
up to the maximum air pressure
rating of this tool.
CAUTION! TO PREVENT TOOL
AND ACCESSORY FAILURE,
RESULTING IN INJURY:
Do not exceed the tool’s maximum
air pressure rating.
If the tool still does not have sufcient
force at maximum pressure and
sufcient airow, then a larger tool
may be required.
10. Once nut is tightened, release
Trigger. Turn off the air supply and
disconnect the hose.
11. If available, check the recommended
torque specication for the nut. Use
a torque wrench to tighten the nut
to the proper setting after using the
Impact Wrench.
12. To set Impact Wrench in Reverse,
slide Direction Valve to the left and
away from the Trigger Handle for
counterclockwise (reverse) rotation.
13. WARNING! Before changing the
rotational direction of the tool, release
the Trigger and allow Tool to come to
a complete stop.
14. Adjust air ow by turning Air
Regulator Knob from positions 1

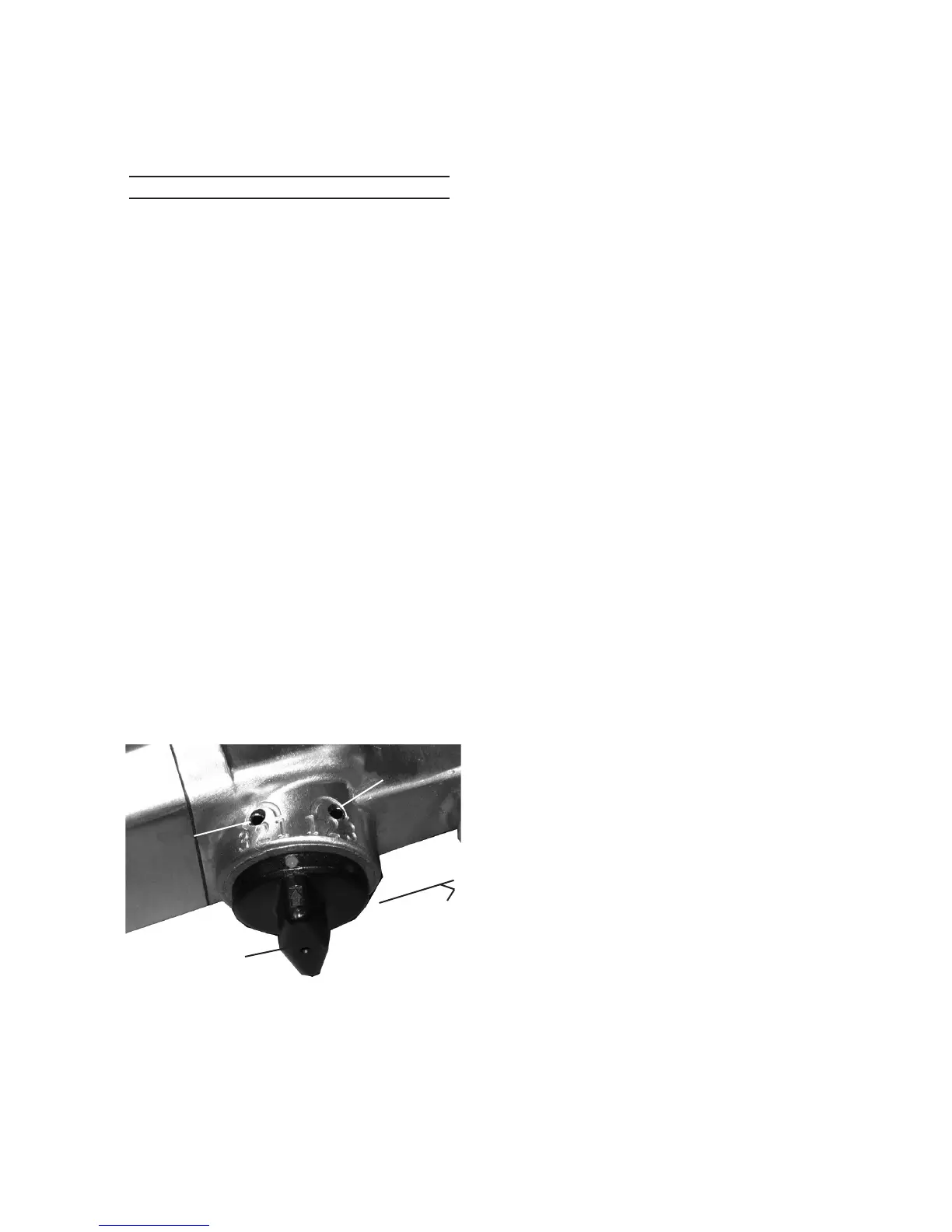

To Trigger
Handle (1)
Direction Valve (17)
Reverse
Setting
Figure 1
Forward
Setting
Please Note: Figure 1 (view from side of tool)
shows Settings above Direction Valve without
protective black coating.
