Centrometal Cm Pelet-set - Control Panel Display Symbols; Symbol Key and Descriptions; Boiler Type Display Examples

4
SIMBOLI
6 7 8
4
5
1 9
3
1110
2
1312
14
Boiler type display:
EKO-CK P EKO-CKB P
EKO-CKB P
+ built in boiler
recirculation
Screen, Symbols
Technical instructions REGULATION Cm Pelet-set

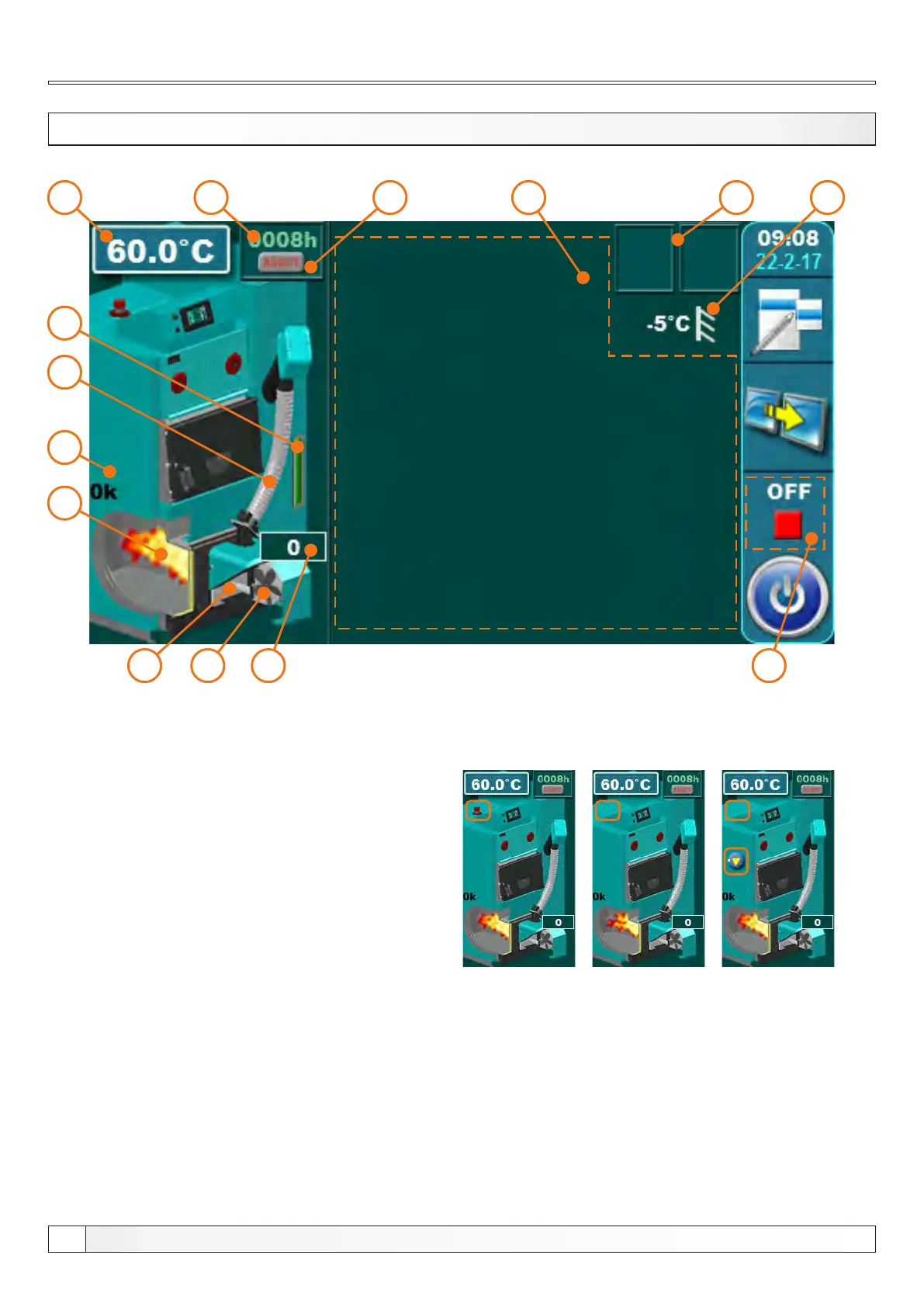

SYMBOLS
6 7 8
4
5
1 9
3
1110
2
13
Symbols:
1 - Boiler temperature
2 - Fuel level *
3 - Transporter working
4 - Photocell
5 - Flame symbol
6 - Igniter working
7 - Burner fan working
8 - Burner fan rpm
9 - Burner working hours counter
10 - Burner working hours reset buttom
11 - Dynamic configuration view
(view is depending of set configuration)
12 - Work mode (winter/summer) / Additional
equipment view (cascade, wifi...)
13 - Outside temperature
14 - Boiler working stage
* - additional equipment
on screen only if additional equipment
is installed and enabled (fuel level sensor)
12
14
