Century EB-4 - Releasing Tire Restraints; Optional Tow Ball Application

IVA-21
Section IVA - OPERATING INSTRUCTIONS
WHEEL LIFT (cont'd)
4A.9 RELEASING TIRE RESTRAINTS FROM CROSSTUBE
(a) Remove safety strap and safety chains from vehicle. Lower
wheel lift to ground.
(b) Disengage the tire restraint plunger by pulling out and rotating
90°. Pull tire restraint from crosstube. Store in brackets on
wrecker body.
4A.10 TOW BALL (OPTIONAL)

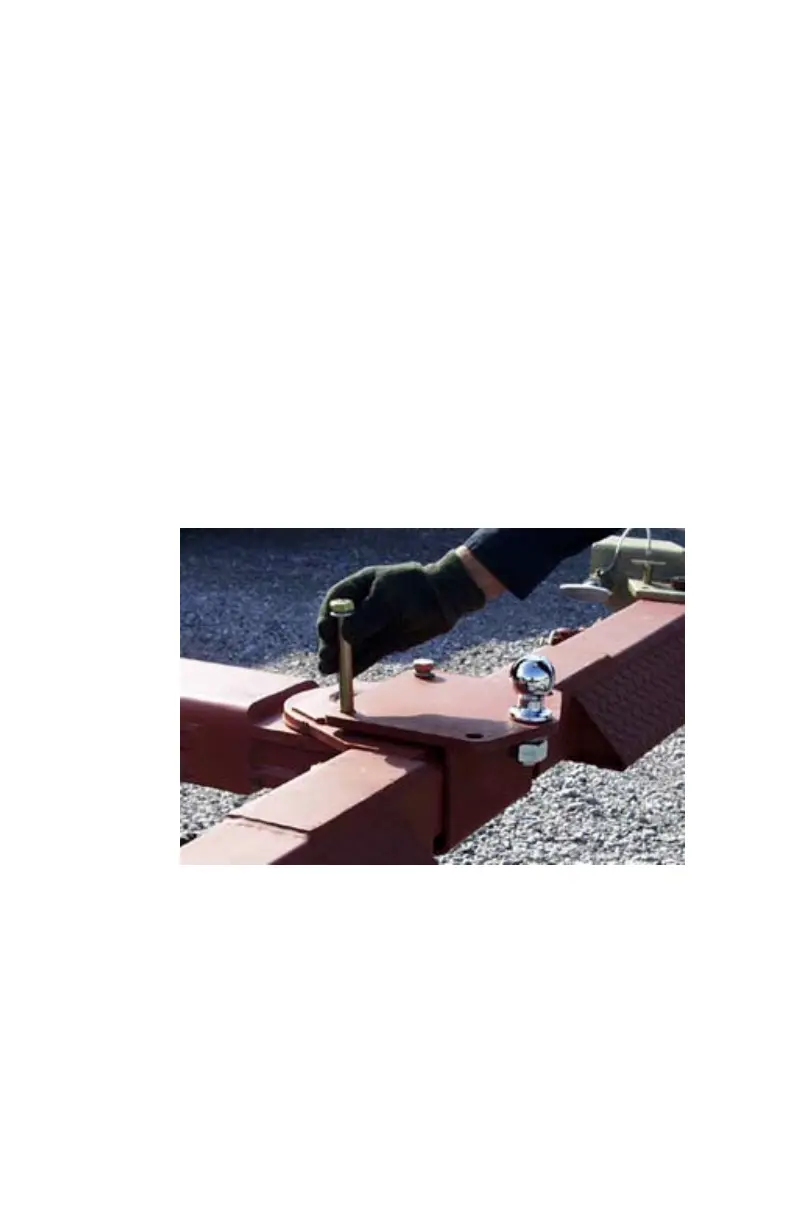

(a) Attach the tow ball mounting bracket with ball to the Wheel Lift
crossbar using provided bolt and tighten securely. See Figure
4A.24.
FIGURE 4A.24
(b) Back the wheel lift up to trailer to be pulled. Extend wheel lift
Boom to desired length.
(c) Swivel wheel lift crossbar either right or left to align tow ball up
with hitch. See Figure 4A.25.
