IVA-25
Section IVA - OPERATING INSTRUCTIONS
WHEEL LIFT (cont'd)
4A.11 TOW FORK ADAPTERS (cont'd)

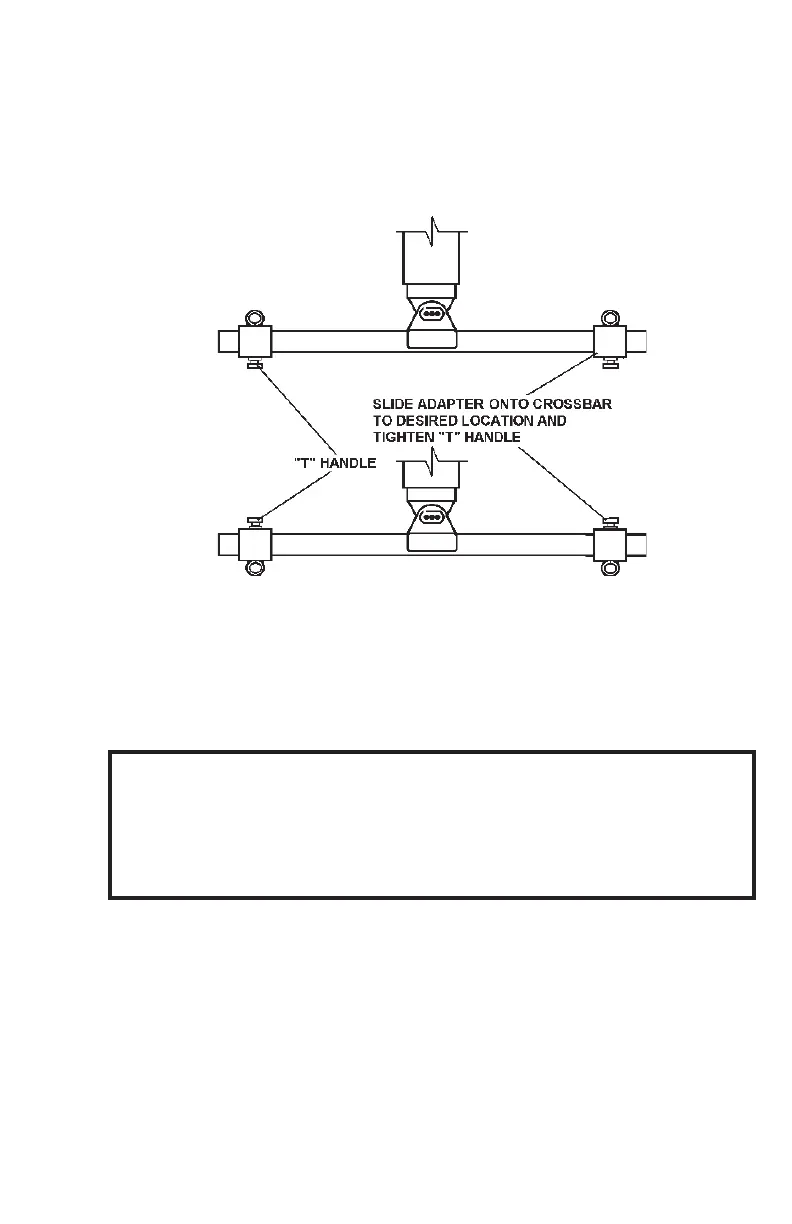

FIGURE 4A.28
4A.12 TOW FORK & ADAPTER APPLICATIONS
(a) Align wheel lift with disabled vehicle.
NOTE
STEPS (b) THROUGH (d) ARE NOT NECESSARY PROVIDED
THE AXLE IS HIGH ENOUGH TO ALLOW EXTENSION OF
BOOM WITH FORKS AND ADAPTERS INSTALLED ON
CROSSBAR.
(b) Extend the boom (without adapters or forks) until crossbar is
centered with axle of disabled vehicle.
(c) Raise vehicle until tire can be blocked up high enough to allow
forks to clear axle when installed onto the crossbar.
(d) Block up tires and lower boom until boom can be retracted for
installation of adapters and forks.
