IVA-26
Section IVA - OPERATING INSTRUCTIONS
WHEEL LIFT (cont'd)
4A.12 TOW FORK & ADAPTER APPLICATIONS (cont'd)
(e) Install Adapters in desired configuration on crossbar. Select
and install desired forks into adapters. See Figure 4A.29.

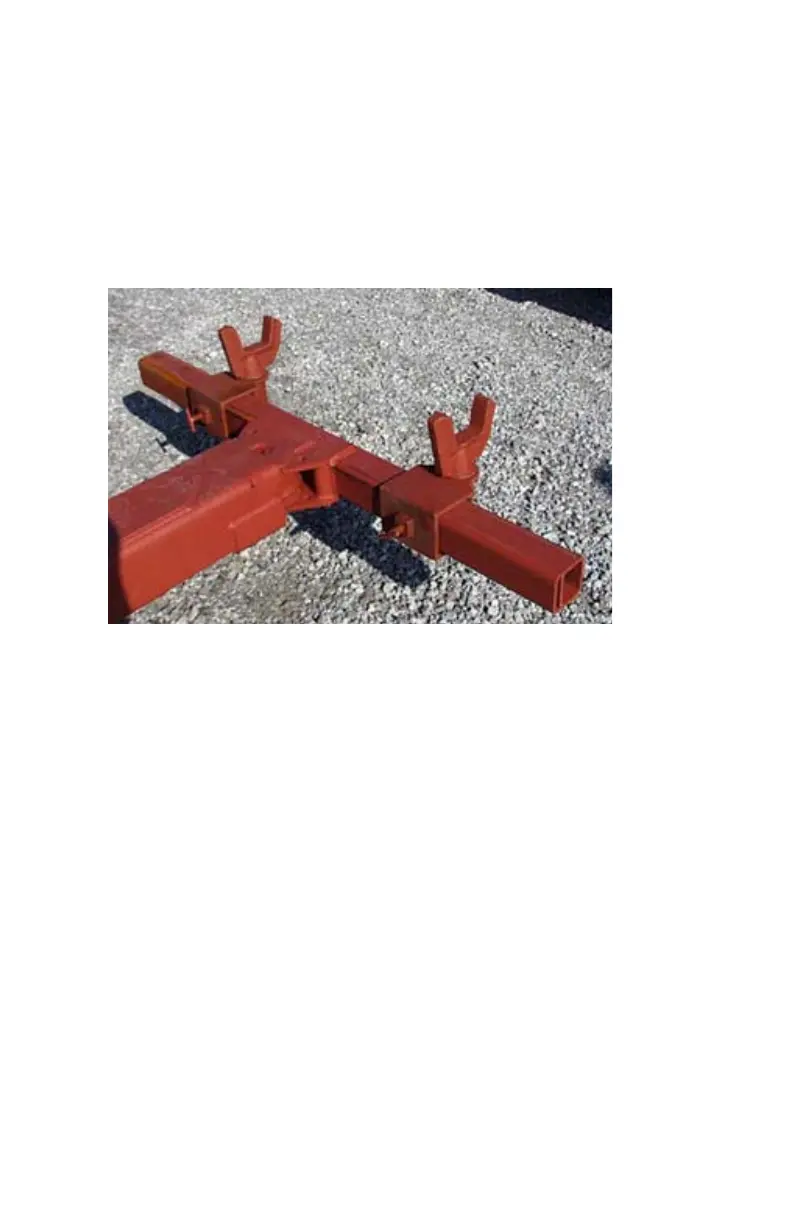

FIGURE 4A.29
(f) Extend boom until forks are beneath axle or frame as desired.
(g) Manually adjust adapters on crossbar to a point where the forks
will come in contact with the frame or axle in the desired towing
position.
(h) Tighten "T" handles on adapters. Attach safety chains around
axle or frame, crossbar and forks as shown in Figure 4A.30.
