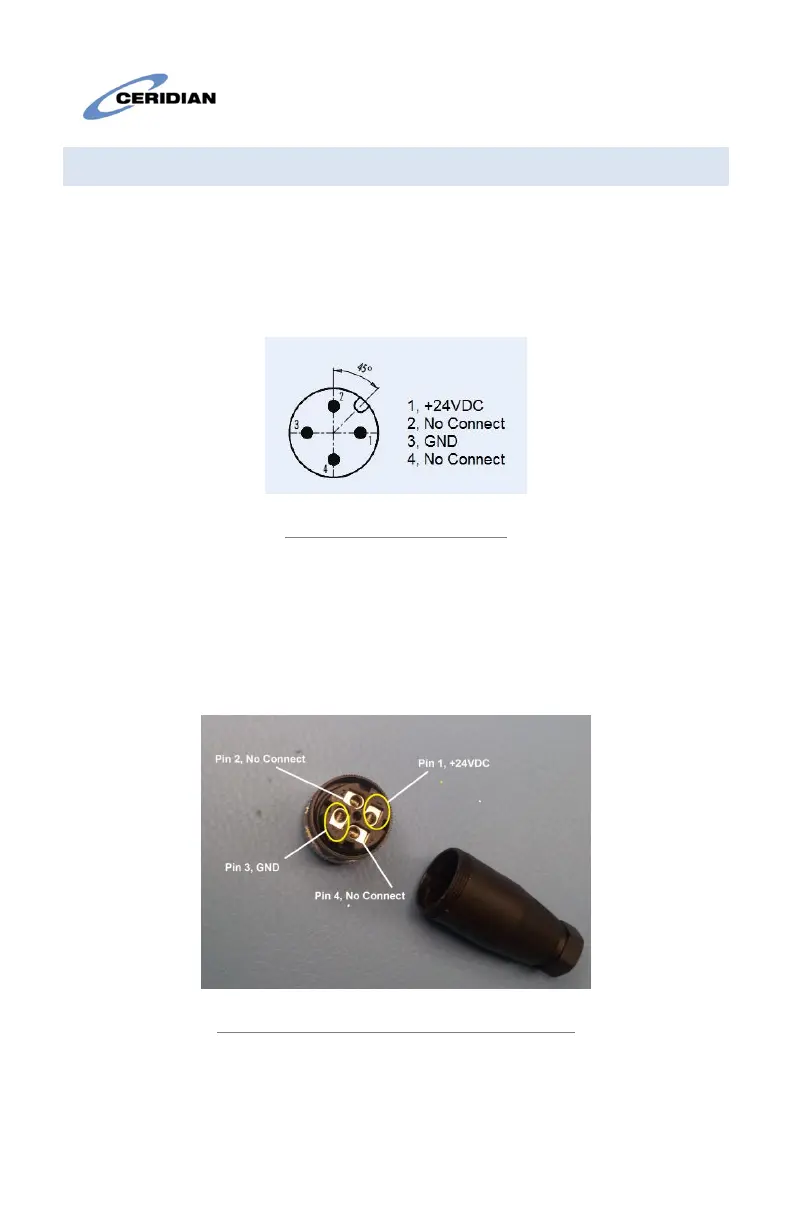

9.3 Note re Power Supply
Clocks are supplied with an external low current power pack which
delivers 24V DC and plugs directly into the 4-pin Power Input connector
on the rear of the unit (Binder Part Number 09 3431 116 0415). The pin
assignments are shown in Figure 5.
Figure 5: Power Input Pinouts
The provided power supply comes with a mating connector, which
when properly installed provides a measure of water-splash resistance.
The mating connector is a Binder Part Number 99 0430 14 04. Its wiring
guide is shown in Figure 6.
Figure 6: Power Input mating-connector pinouts
