Cessna 172 Skyhawk SERIES User Manual

CYLINDERS
1. Brake Hose
2. Brake Master Cylinder
3. Control Assembly
4. Tube Assembly
5. Angle
6. Washer
7. Catch
8. Handle
9. Clamp
INSTRUMENT PANEL
10. Housing LOWER INSTRUMENT
11. Spring
ASSEMBLY
12. Tube
13. Positioning Pin
14. Positioning Rack
15. Rudder Pedals
16. Cable
17. Pulley
18. Bellcrank
21
19. Bracket
20. Spring
21. Brake Line
PARKING
BRAKE
Section A-A

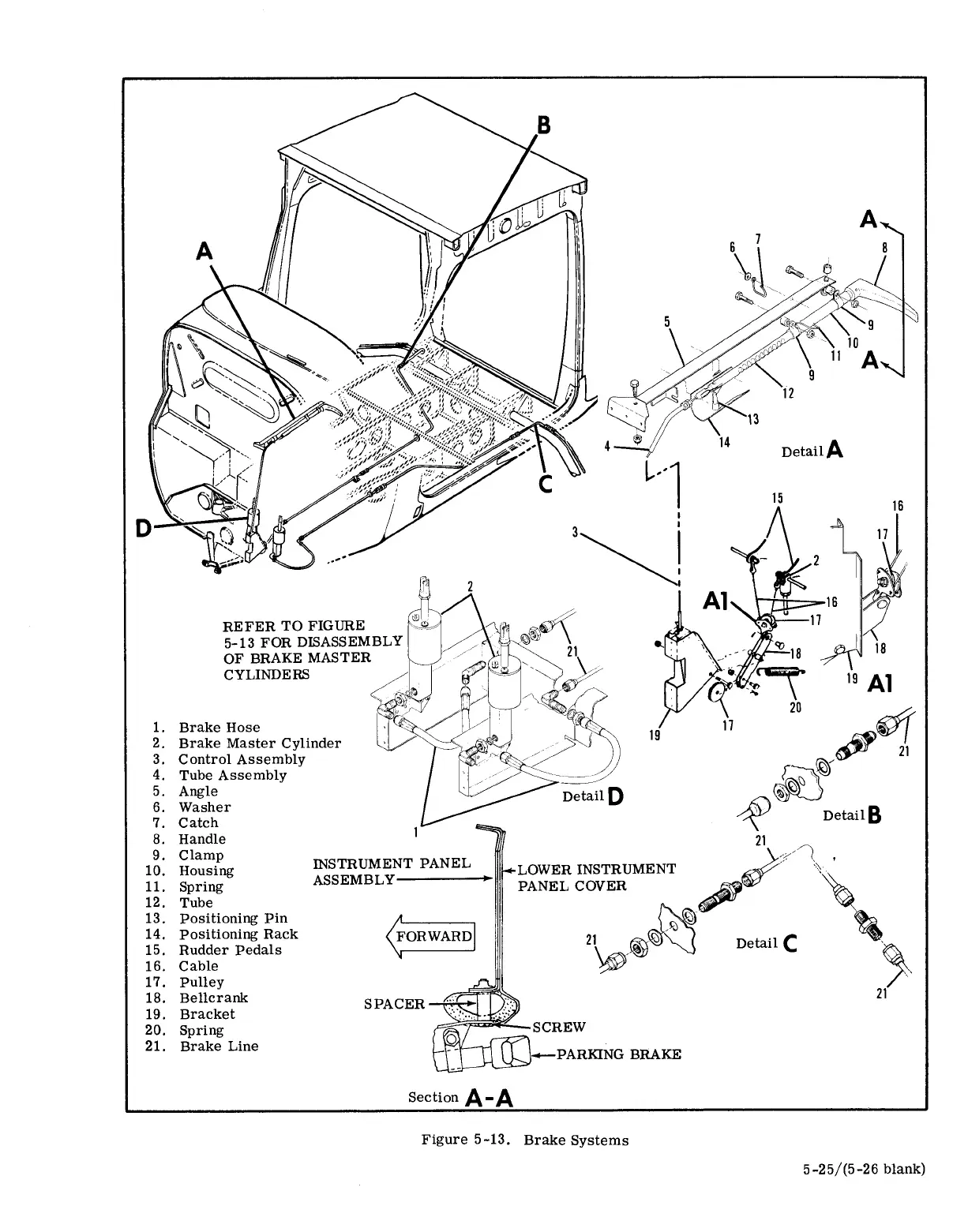

Figure 5-13. Brake Systems
5-25/(5 -26 blank)
