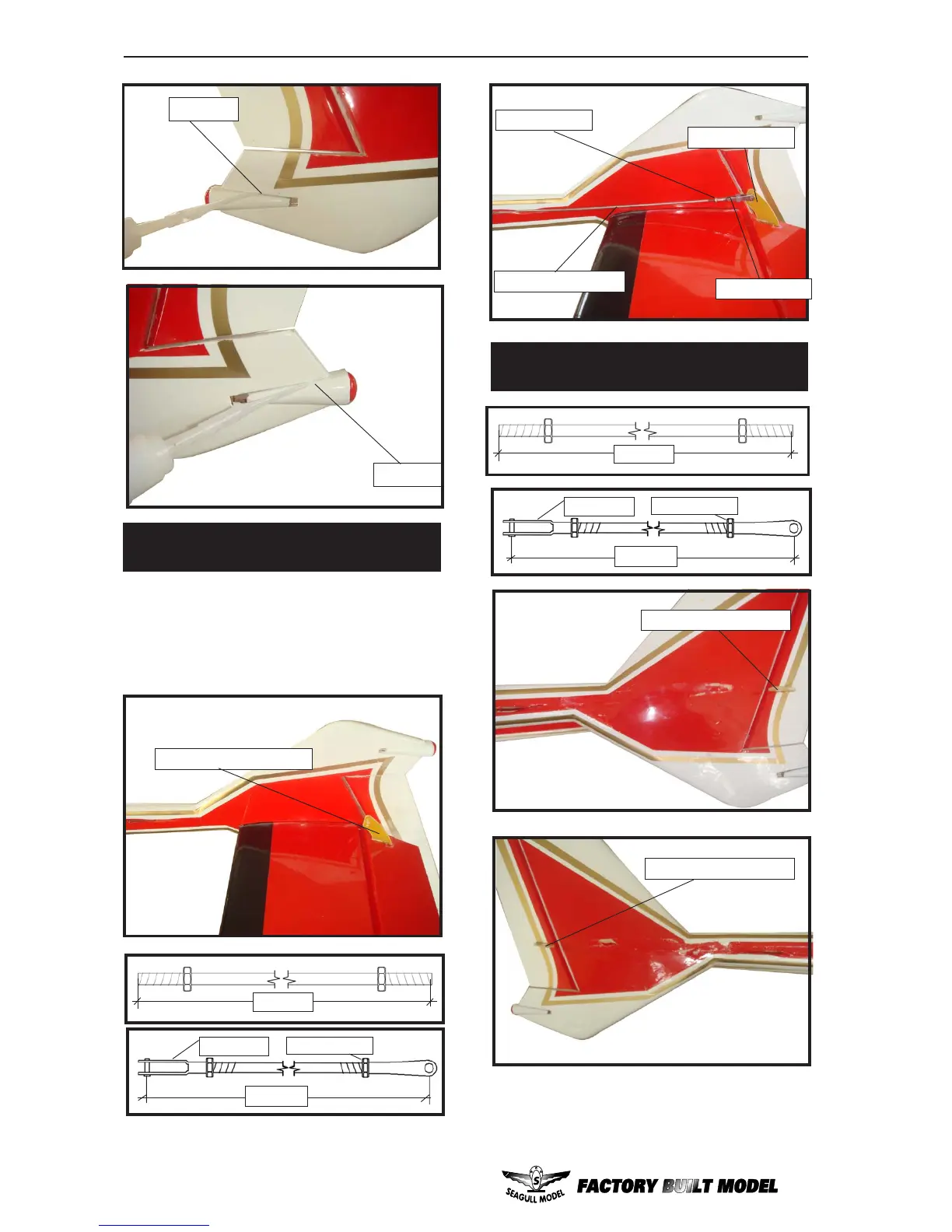

Elevator control horn.
ELEVATOR PUSHROD HORN
INSTALLATION.
 1) Install the elevator control horn using
the same method as with the aileron control
horns.
 2) Position the elevator control horn on
the both side of elevator.
C/A glue.
Control horn.
M2 lock nut.
Metal clevis.
Elevator pushrod.
M2 lock nut.
M2 clevis.
690mm.
720mm.
Rudder control horn.
RUDDER PUSHROD HORN
INSTALLATION.
M2 lock nut.
M2 clevis.
690mm.
720mm.
Rudder control horn.
C/A glue.
