Wiring Diagrams

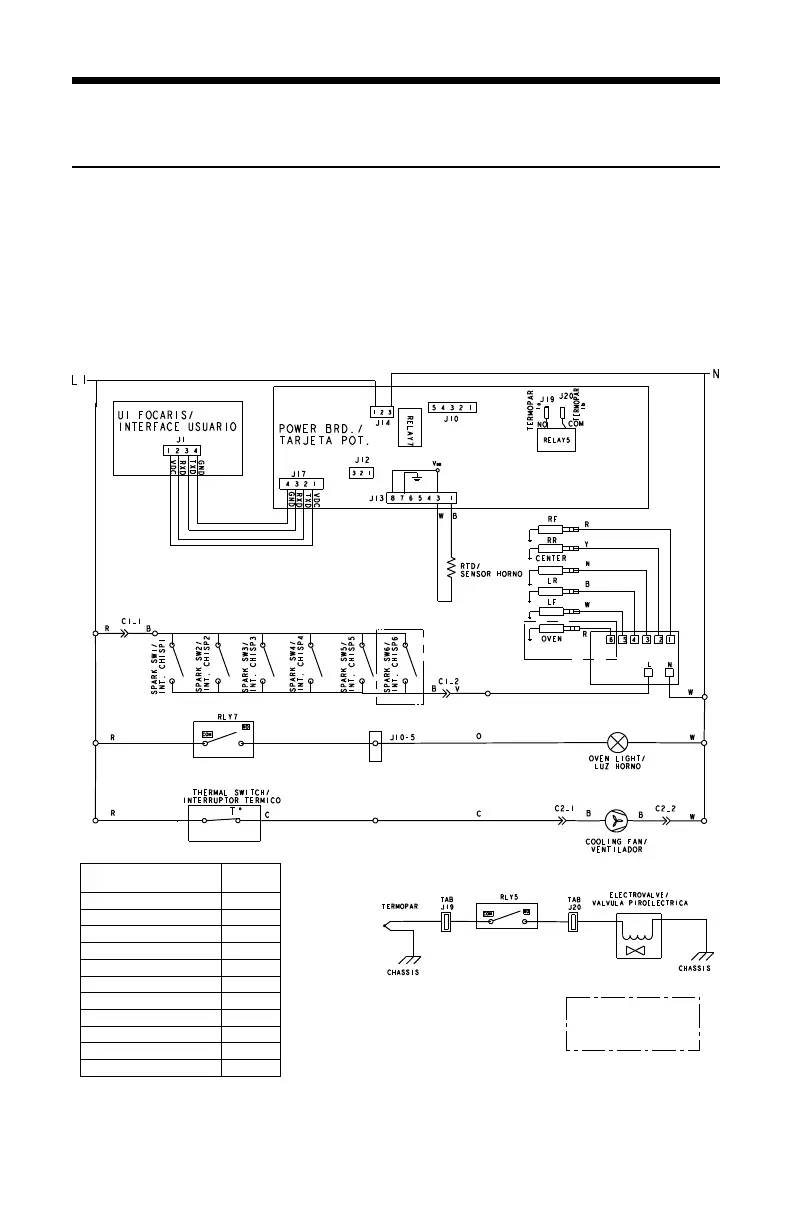

295D1610P002 Wiring Diagram
(See features by model chart, at the end of the manual.)
WARNING: DISCONNECT THIS APPLIANCE FROM POWER
SOURCE BEFORE PERFORMING ANY TYPE OF SERVICE.
