MAINTENANCE & LUBRICATION
150
Tail lamp replacement

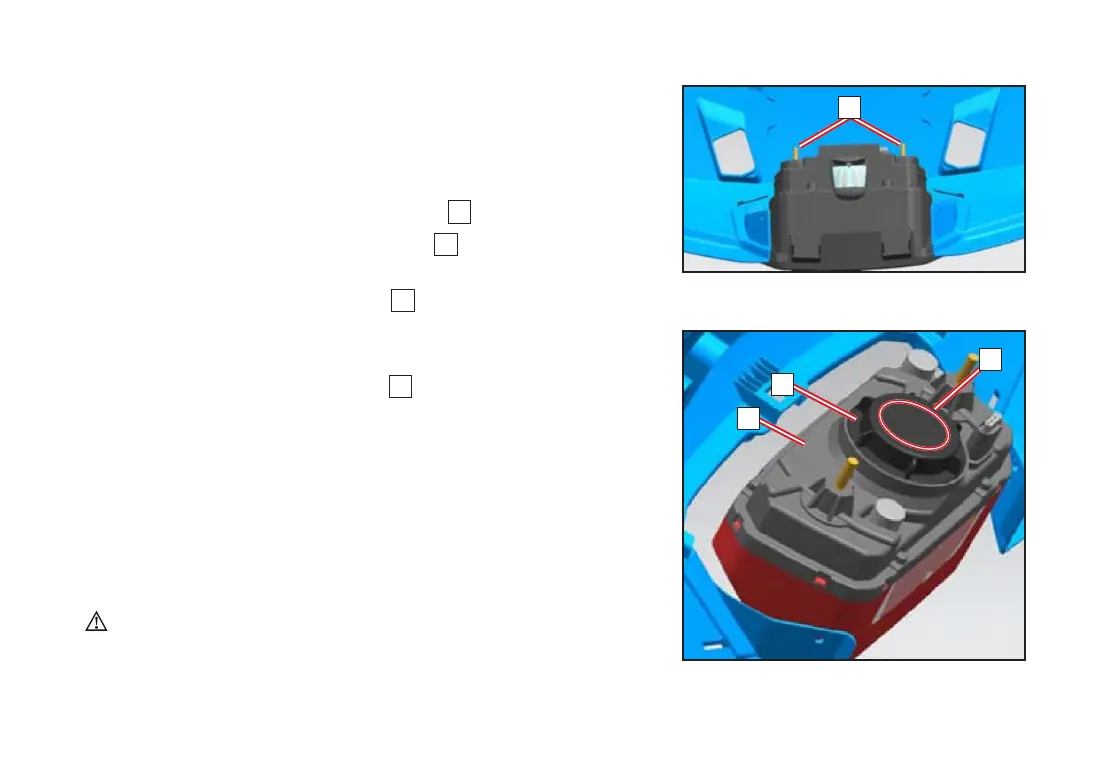

1. Access the tail light bulb:
• Open the rear access cover.
• Remove the inner cover fasteners
1
.
• Push the tail lamp assembly
2
out of the cover to
expose the housing.
• Turn the bulb access cover
3
60 degrees anti-clockwise
and remove it from the housing.
2. Remove the fasteners #3 from the inner cover.
3. Remove the failed assembly
4
and replace it with a new
one.
4. Reinstall the lamp holder into the tail lamp housing.
5. Test the bulb and ensure it is working properly.
6. Reinstall the tail lamp housing and fasteners onto the
access cover. Tighten the fasteners to
7.3 ft-lb. (10 N
•
m).
7. Bulb Specification:
12V 21/5W
CAUTION
Hot surface. Touch the bulb only after it has cooled down.
1
3
2
4
