Chapter 1
Figure Figure
Figure Figure
Figure
1-21-2
1-21-2
1-2
Standard Floppy cable
rr
rr
r Double Stack Back-Panel I/O Connectors
- PS/2 Mini-DIN keyboard and mouse port
- Two USB ports and one RJ45 connector
- Two 9-pin D-SUB male Serial port
- One 25-pin D-SUB female Printer port
- Audio Line-in/out and Mic-in jacks
- One 15-pin D-SUB female Game/MIDI port
rr
rr
r VIA VT 6103 Ethernet Controller
- On board PHY LAN supports 10/100Mbs operation
rr
rr
r Onboard PCI Audio Subsystem (option)
- CMedia 8738 audio chip w/ legacy audio SB16/Pro compatible
- Full-duplex operation for simultaneous recording and playback
rr
rr
r Embedded Audio Subsystem (option)
- AC"97 V2.1 compliant CODEC with integrated SRC
rr
rr
r Embedded System Monitor Hardware
- 8 external voltage inputs
- 2 temperature sensor with thermistor for CPU and System
- 2 Fan speed monitoring with ON/OFF control in suspend
1-2 Package Contents
This product comes with the following components:
r One mainboard

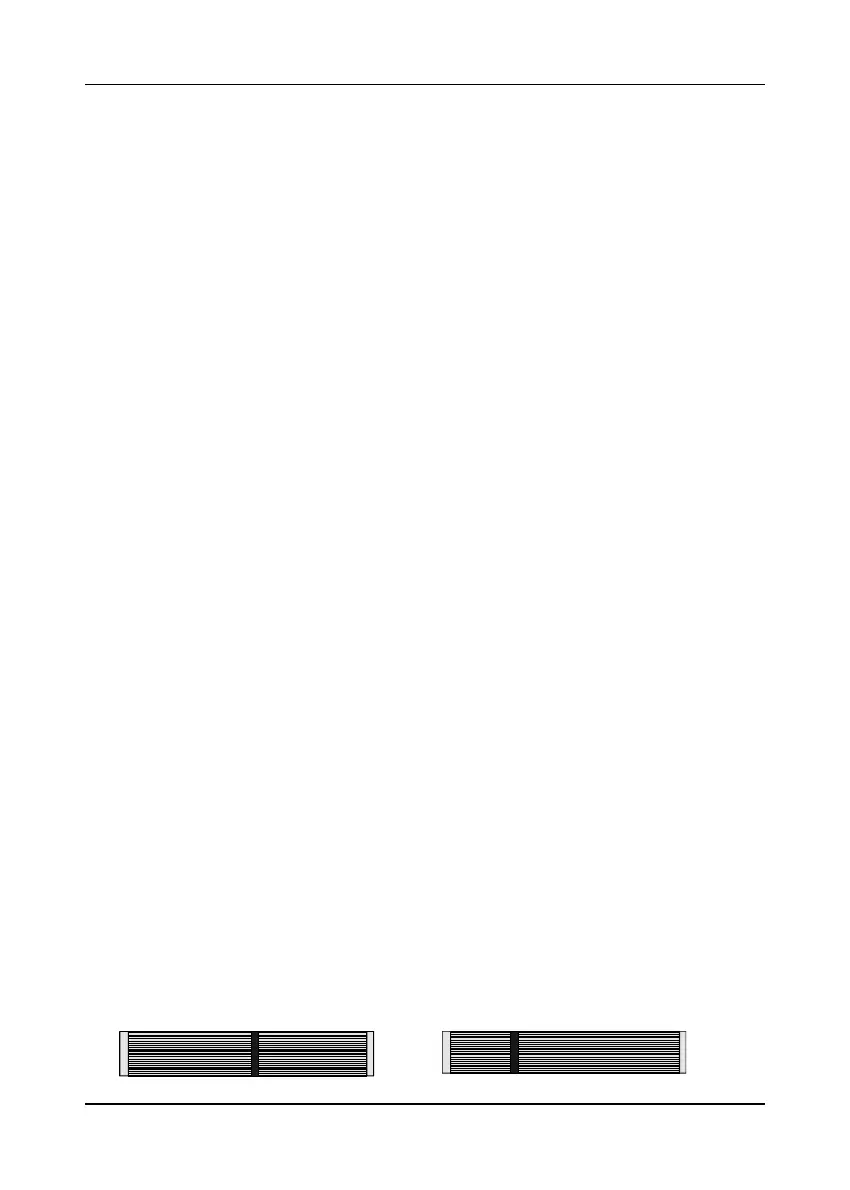

r One 40-pin (80-conductor) UDMA-133 IDE connector ribbon cable (Figure 1-1)
* Color coded connection: Blue to mainboard, Gray to Master and Black to slave
r One 34-pin floppy disk drive ribbon cable (Figure 1-2)
r One User's Manual
r One CD-ROM that includes
- Award Flash Utility
- Award DMI Utility for DOS
- Audio drivers and utilities for DOS/Win9x/NT
- LAN driver for DOS/Win9x/Win2000/NT
- VIA Service Pack for Windows OS including Bus Master IDE drivers, AGP
VxD and etc.
Optional Item
r 6 Channel Audio Adapter card with cable
r Value Pack 2002 software pack including Norton AntiVirus, Adobe ActiveShare,
Acrobat Reader, Acrobat eBook Reader, Imagemore and AutoSave.
See the Readme.txt file in the CD-ROM's root directory for installation
instructions of all driver and software utilities.
Figure Figure
Figure Figure
Figure
1-11-1
1-11-1
1-1
UDMA-133 IDE cable
@
