10.3 Slitting and Slotting Attachments
DISCONNECT POWER before cleaning, servicing, or lubricating your drill.
10.3.1 V-Slotting
To cut V-slot holes, first drill the round holes. Turn off the power and remove the drill.
Figure 7
Remove the pressure foot by lifting up the foot and removing the two snap rings.

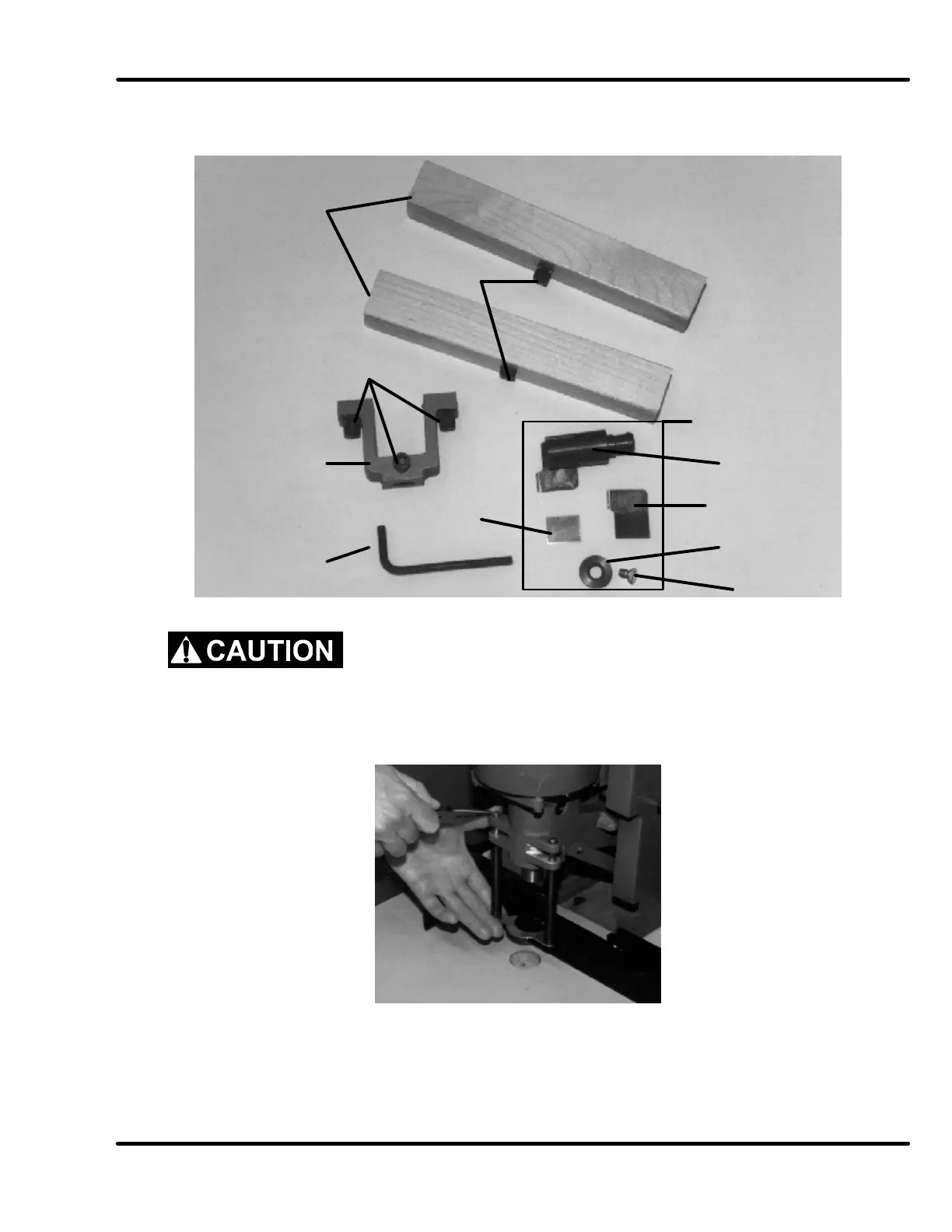

Rear Gauge Filler
6409
Screw
¼-20 x 1”
Screw
¼-20 x ½”
Bracket
4684
V-Slotting
Assembly
Knife Holder
4704
Knives (pair)
A4708
Knife Thrust Block
4703
Flat Head Screw
10-24 x 3/8”
Knife Holder Plate
4704
3/16” Allen
Wrench
W-130
