Challenger MT265B - Lubrication Points; Lubrication Diagram

79028571 A Rev. 01-11
Specifications And Capacities
LUBRICATION / FILL POINTS

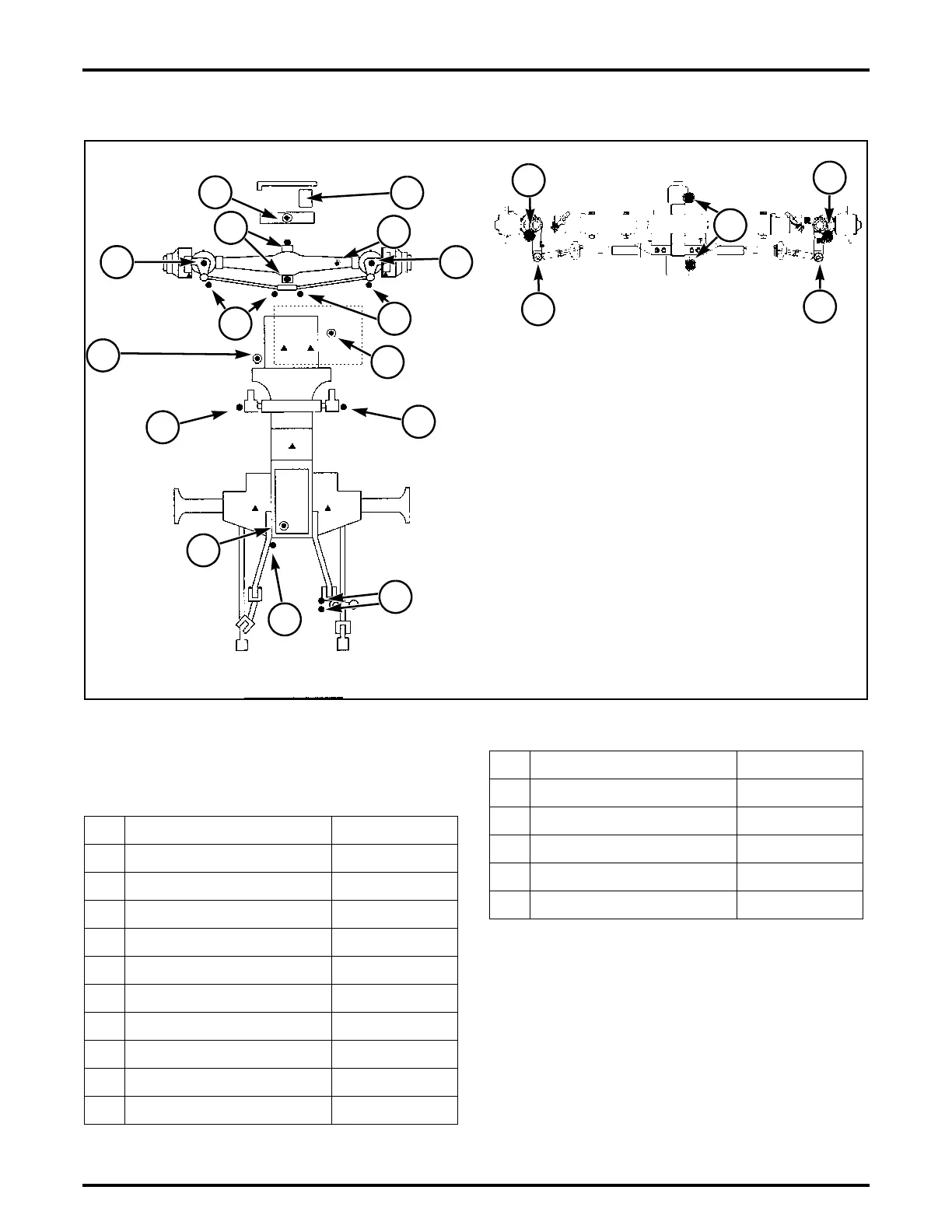

FIG. 9: General layout of lubrication, fill and drain
locations on Tractor:
FIG. 9
10
1
5
3
2
8
10
8
i-9336a
9
6
4
9
11
12
i-9336b
13
14
15
13
14
7
Ref Description Type
1 Crankcase Engine Oil
2 Engine Radiator Coolant
3 Radiator Overflow Reservoir Coolant
4 Fuel Tank Diesel Fuel
5 Rear Housing Hydraulic Oil
6 4WD Axle Hydraulic Oil
7 Axle Pivots (4WD) Grease
8 Front Spindles (4WD) Grease
9 Tie Rod Ends (4WD) Grease
10 Brake Pivots Grease
11 Assist Cylinder Grease
12 Leveling Crank Grease
13 Front Spindles (4WD) Grease
14 Tie Rod Ends (2WD) Grease
15 Axle Pivots (2WD) Grease
