Challenger MT265B - General Dimensions; Non Cab Tractor Dimensions

79028571 A Rev. 01-5
Specifications And Capacities
SPECIFICATIONS AND CAPACITIES
GENERAL DIMENSIONS

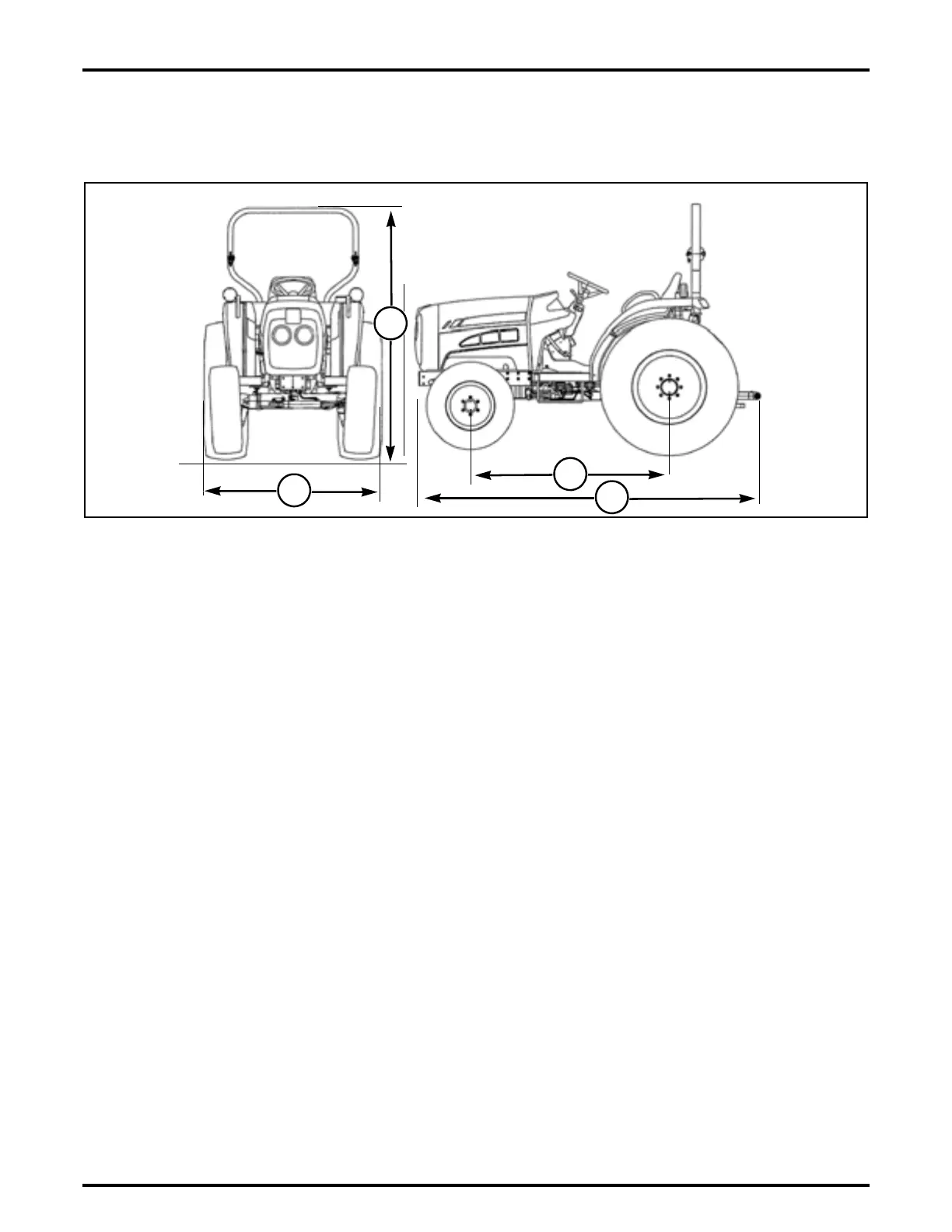

FIG. 7: Non Cab Tractor Dimensions.
General Dimensions
Overall Height (1)......................................................................................................................................... 2209 mm (87 in)
Overall Length (2)..................................................................................................................................... 3070 mm (121 in)
Minimum Width (3)
(Ag Tires) .......................................................................................................................................... 1680 mm (66.1 in)
(Turf Tires)............................................................................................................................................. 1549 mm (61 in)
Wheelbase (4)
33 Horsepower ..................................................................................................................................... 1770 mm (70 in)
40 Horsepower ..................................................................................................................................... 1770 mm (70 in)
Ground Clearance (Ag Tires)........................................................................................................................ 360 mm (14 in)
Front Wheel Tread
2WD .................................................................................................................................................. 1120 mm (44.1 in)
33 Horsepower 4WD..................................................................................................... 1130 to 1271 mm (44 to 50 in)
40 Horsepower 4WD..................................................................................................... 1130 to 1271 mm (44 to 50 in)
Turning Radius
With Brake............................................................................................................................................. 2500 mm (98 in)
Without Brake .................................................................................................................................... 3100 mm (122 in)
Weight
33 Horsepower (4wd)......................................................................................................................... 1375 kg (3031 lb)
40 Horsepower (4wd)......................................................................................................................... 1390 kg (3058 lb)
FIG. 7
i-9090b
1
2
3
4
