5 . MAINTENANCE AND ADJUSTMENTS
5.28
Challenger MT500B EU
NOTE: With narrow track widths and with certain tyre
fittings, the wheels may touch the body when turning at
maximum lock.
To prevent this, the hubs are fitted with threaded stops
(Fig. 44) which can be adjusted to limit the turning lock. Set
maximum front axle oscillation by changing stop 1 itself
(Fig. 45). If you change stop, use securing bolt provided in
the tool box.
NOTE: The axle is factory set for tractor transport.

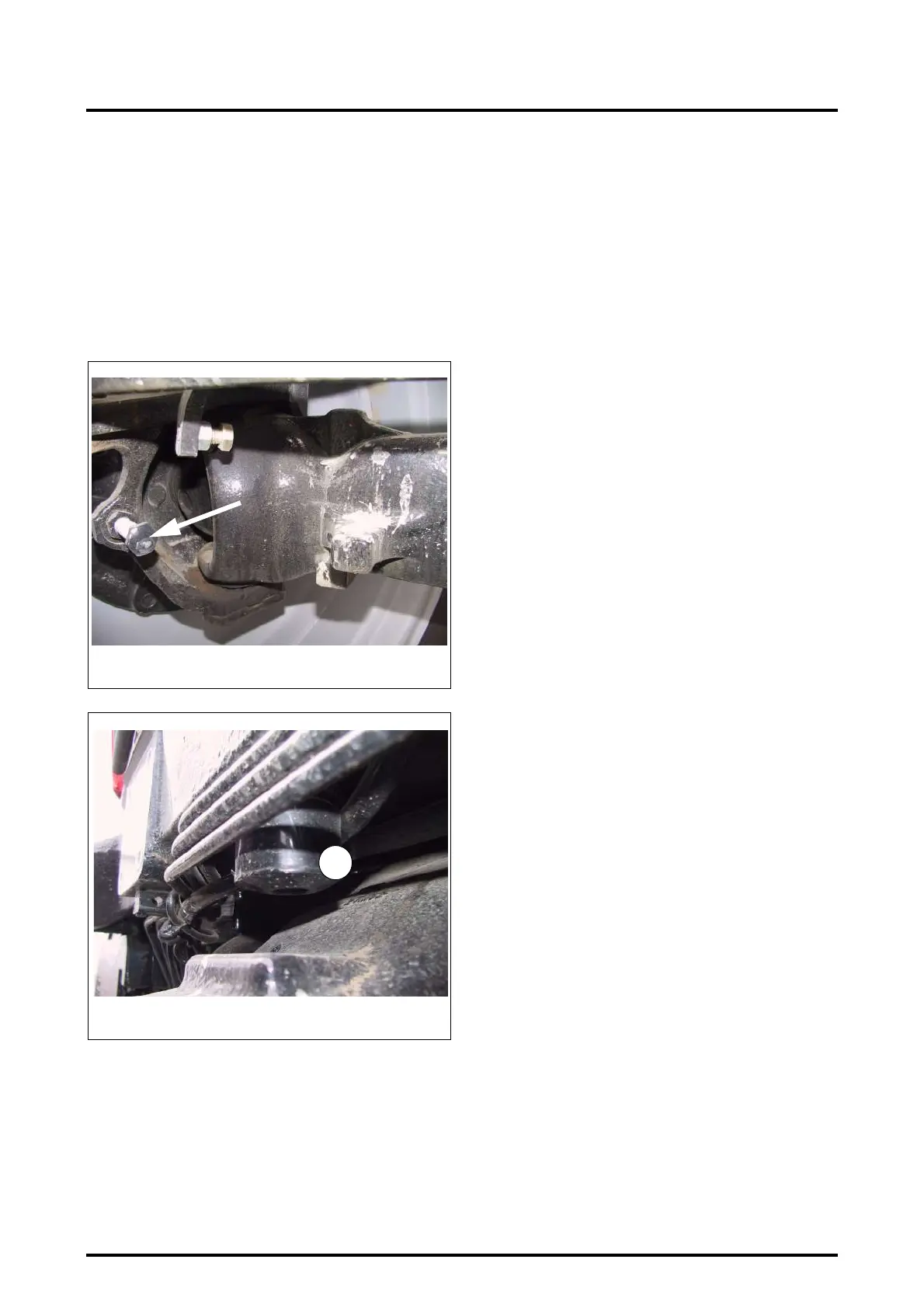

Fig. 44
Z2-520-05-03
Fig. 45
Z2-521-05-03
1
