3 . INSTRUMENTS AND CONTROLS
3.5
Challenger MT500B EU
3
.

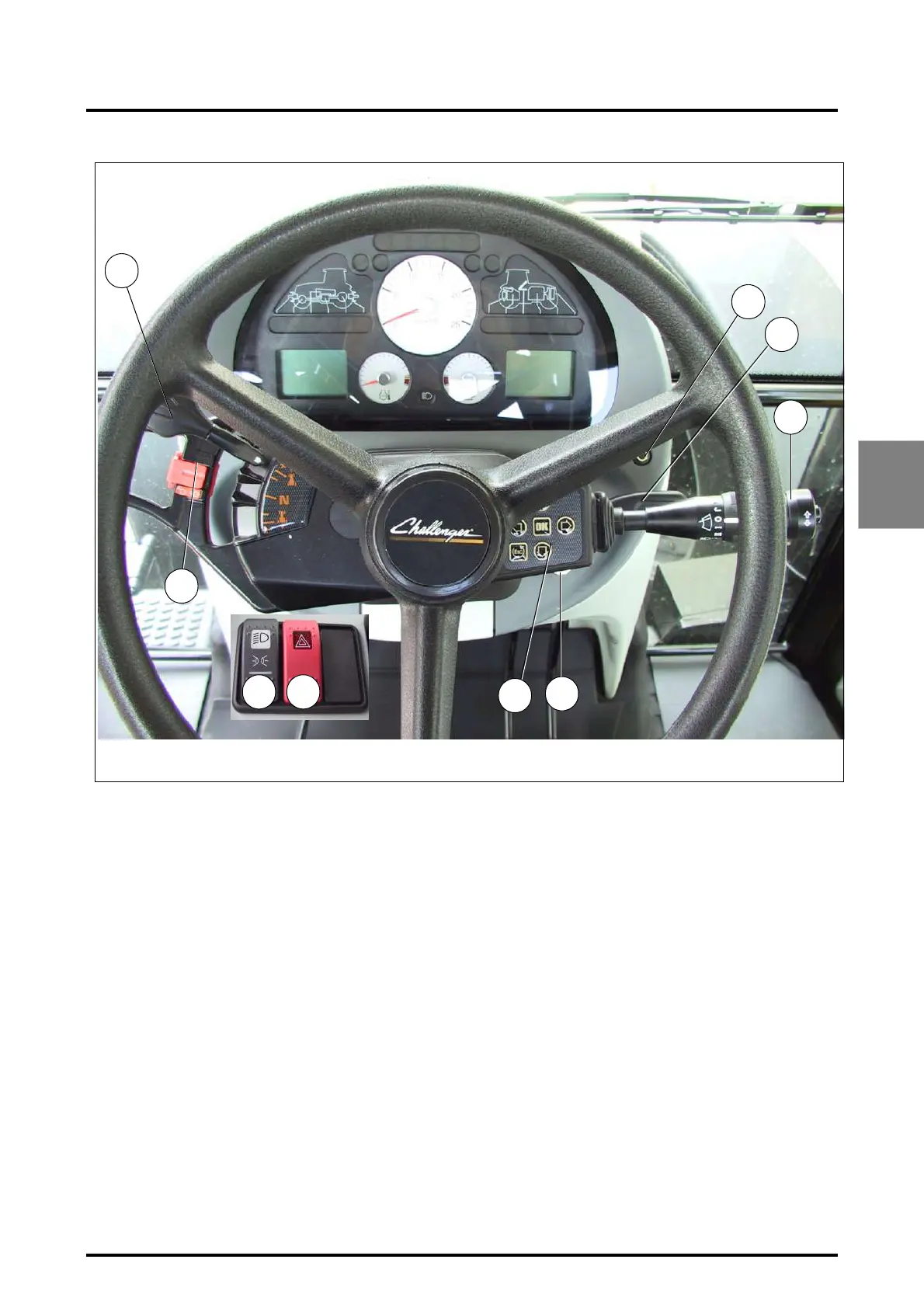

3.1 - INSTRUMENT PANEL (FIG. 1)
1. Start switch (see details in Fig. 3).
2. Control unit (see details in Fig. 4).
This assembly is comprised of the steering change,
windscreen wiper, front and rear windscreen washer
and horn indicator functions.
3. Steering wheel adjustment (see details in Fig. 23).
4. DOT MATRIX controls (see details in Fig. 10).
5. Parameter display selector (Ref. 21, Fig. 2).
6. Main light switch.
7. Hazard warning lights and control switch.
8. Direction of travel and PowerShuttle control lever.
9. Electromechanical brake control (ParkLock).
INSTRUMENT PANEL
Fig. 1
3
6
7
8
1
5
9
Z3A-1500-11-04
4
2
