4 . MAINTENANCE AND ADJUSTMENTS
4.32
Challenger MT500B EU
4.16.3 - Telescopic lower links

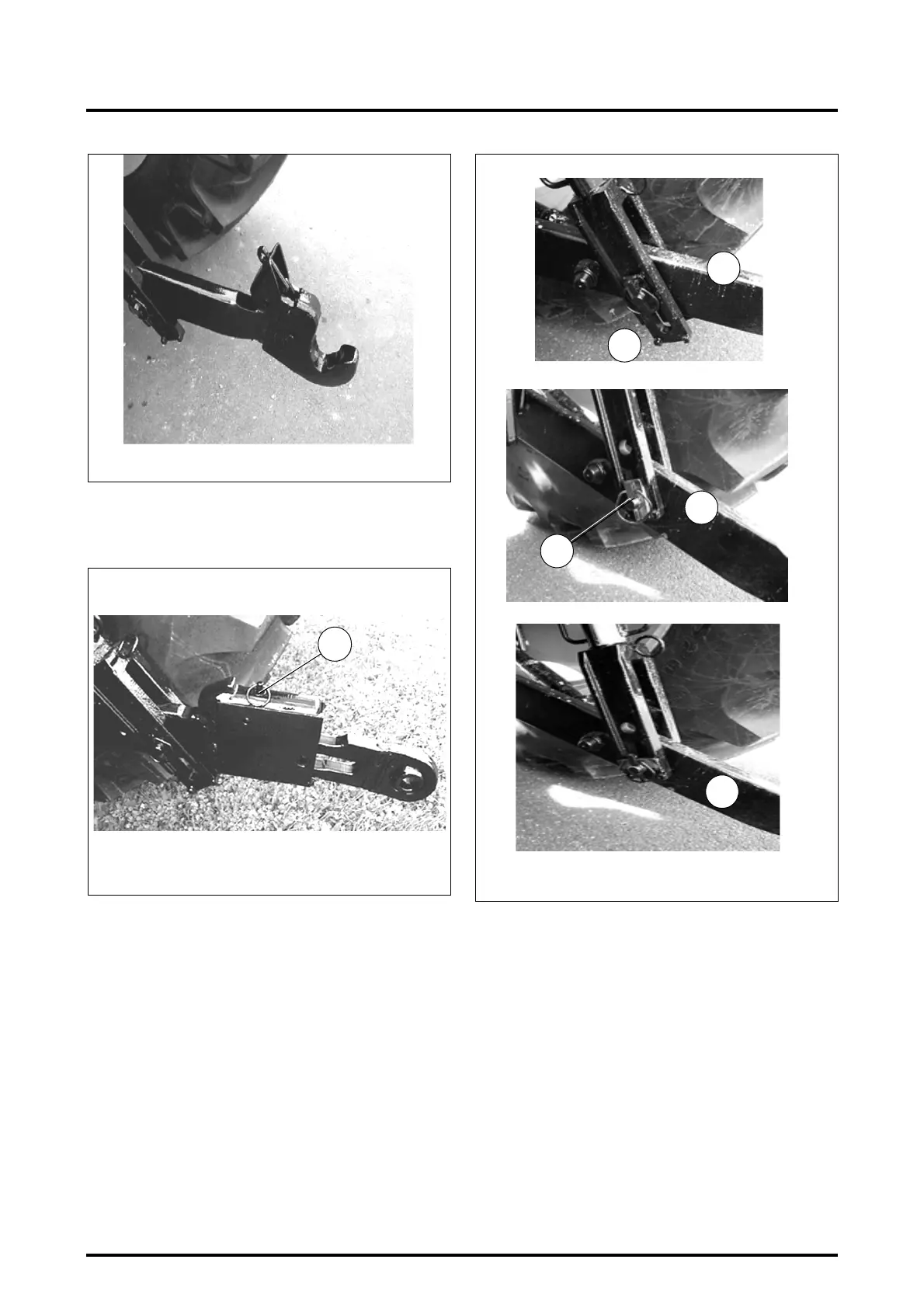

Telescopic lower links (Fig. 64) (depending on country). To
hook up implements unlock pin 1. Lock after hitching.
4.16.4 - Lift rods
(Fig. 65)
The lift rods have one hole 1 for the high position and a slot
2 for the floating position when the pin 5 is in position 3 (for
wide implements or implements with depth wheel).
A fixed low position 4 can be obtained by moving the pin 5.
For rods without hole 1, only the floating position 3 and the
fixed low position 4 can be obtained.
Z2-V538
Fig. 63
V539
Fig. 64
1
Fig. 65
V531
1
4
3
V529
V530
2
5
