Radio Controls
F.C.C. rules prohibit adjustments to or modification of receiver and/or
remote control transmitter circuitry except for changing code setting and
replacing remote control transmitter battery. NO USER SERVICEABLE
PARTS.
Manufactured under 1 or more of the following U.S. patents: RE29,525;4,037.201;
4.750.118; 4.806.930 Other Patents Pending.
ACTIVATE THE OPENER ONLY WHEN
DOOR IS IN FULL VIEW, FREE OF
OBSTRUCTION AND PROPERLY
ADJUSTED. NO ONE SHOULD ENTER OR LEAVE
GARAGE WHILE DOOR IS IN MOTION. DO NOT
ALLOW CHILDREN TO OPERATE REMOTES OR
DOOR CONTROL BUTTONS. DO NOT ALLOW
CHILDREN TO PLAY NEAR THE DOOR.
Your garage door opener receiver and remote control transmitter have been factory set to a matching
code. Models having multi-function remote controls will activate when LARGE button on remote is pressed. If you want to
CHANGE your code or purchase additional remotes, follow the Instructions below. The code in any NEW remote control
must be set to match the code In the original remote control.

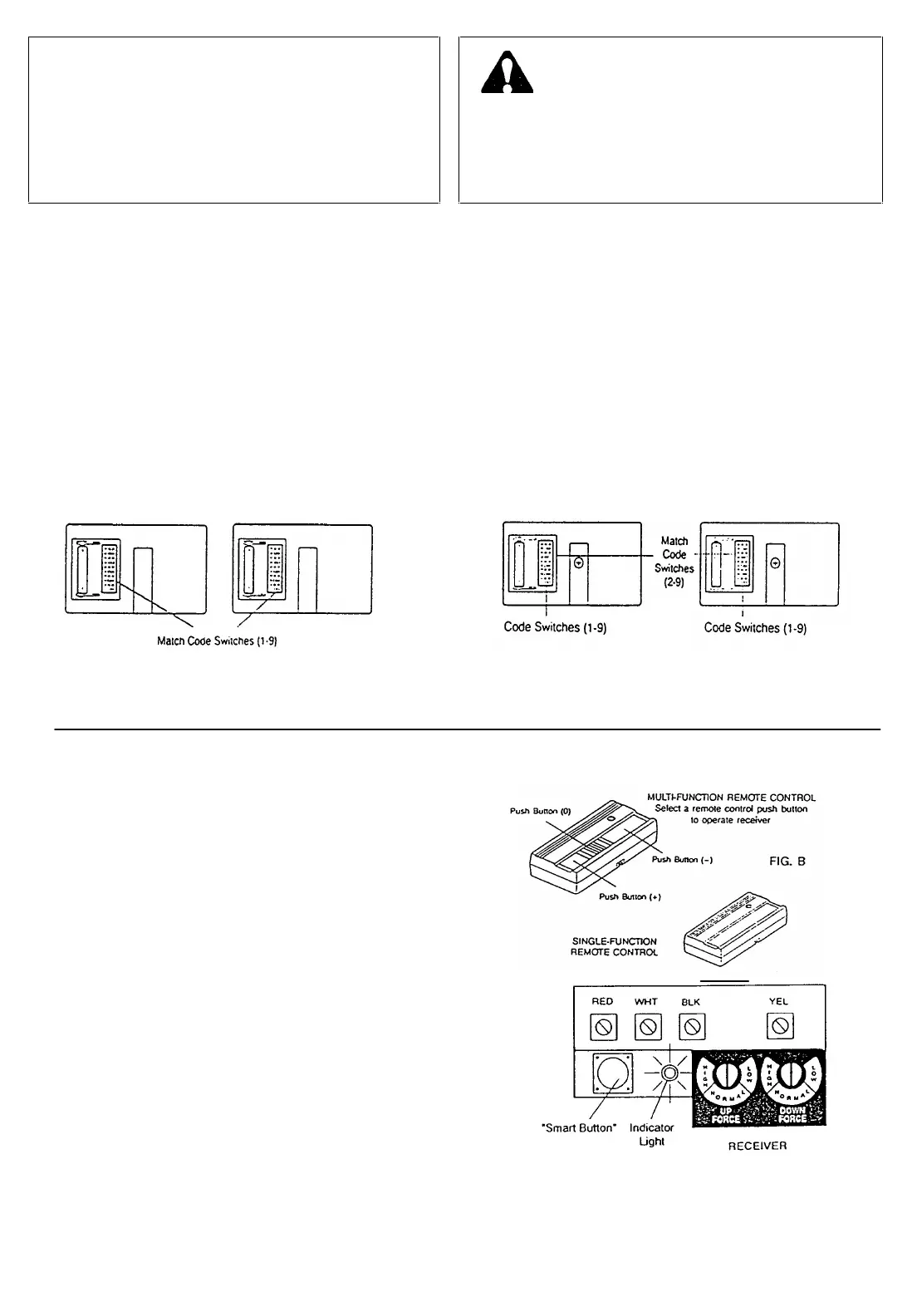

MATCH/CHANGE THE CODE IN REMOTE CONTROL(S)
Slide battery compartment cover back to access code switches in your remote control and any new remote. Place
remotes side by side as shown. Use a pen or screwdriver to slide the switches to (+,-,0) positions.
Multi- FunctionRemotes: Set code switches 2 through 9 in ALL remotes to matching positions. Code switch 1 in a multi-
function remote is neutral. It can be set to any position.
Single Function Remotes: Set code switched 1 through 9 to matching positions.
Combination of Single and Multi-Function Remotes: Set code switches 2 through 9 to match. Set single functon remote
code switch 1 to match positin of selected push button on multi-function remote (Figure B).
MATCH/CHANGE THE CODE IN THE RECEIVER
"SMART"GARAGE DOOR OPENERS
Set all remotes to matching code settings as shown
above. Select a push button to operate the door opener.
MULTI-FUNCITON REMOTE CONTROL ONLY:
Select a push button to operate receiver. LARGE button
is reccommended for garage door opener.
YOU MAY WANT SOMEONE TO HELP AT THIS POINT!
1. Press and HOLD the selected remote control push
button.
2. Then press the receiver ‘Smart’ button on the back panel
of the opener. The adjacent indicator light will FLASH
and the door will begin to MOVE. Release the remote
control push button.
The opener will now operate when either the door control
push button or the transmitter push button is pressed.
NOTE: If the transmitter push button is not held down
until the receiver indicator light flashes, the receiver
will not learn the code.
To use the multi-function remote control with other ‘Smart’
receivers: Select another remote push button to operate
additional garage door opener. All remotes used to
operatereceiver must be set to same code. Then repeat
above procedure.
23
Single-Function Remote Control
Multi-Function Remote Control
When used with multi-function remote, set single
function remote Code Switch #1 to match push button
selected on multi-function remote. (See illustration
below.)
Code Switch #1 in a multi-function remote is neutral set it
to any position.
To use the multi-function remote with light
products and garage door openerts having ‘Code
Switch’ receivers, refer to instructions included
with the product.
