Chamberlain Merlin MT5580 User Manual

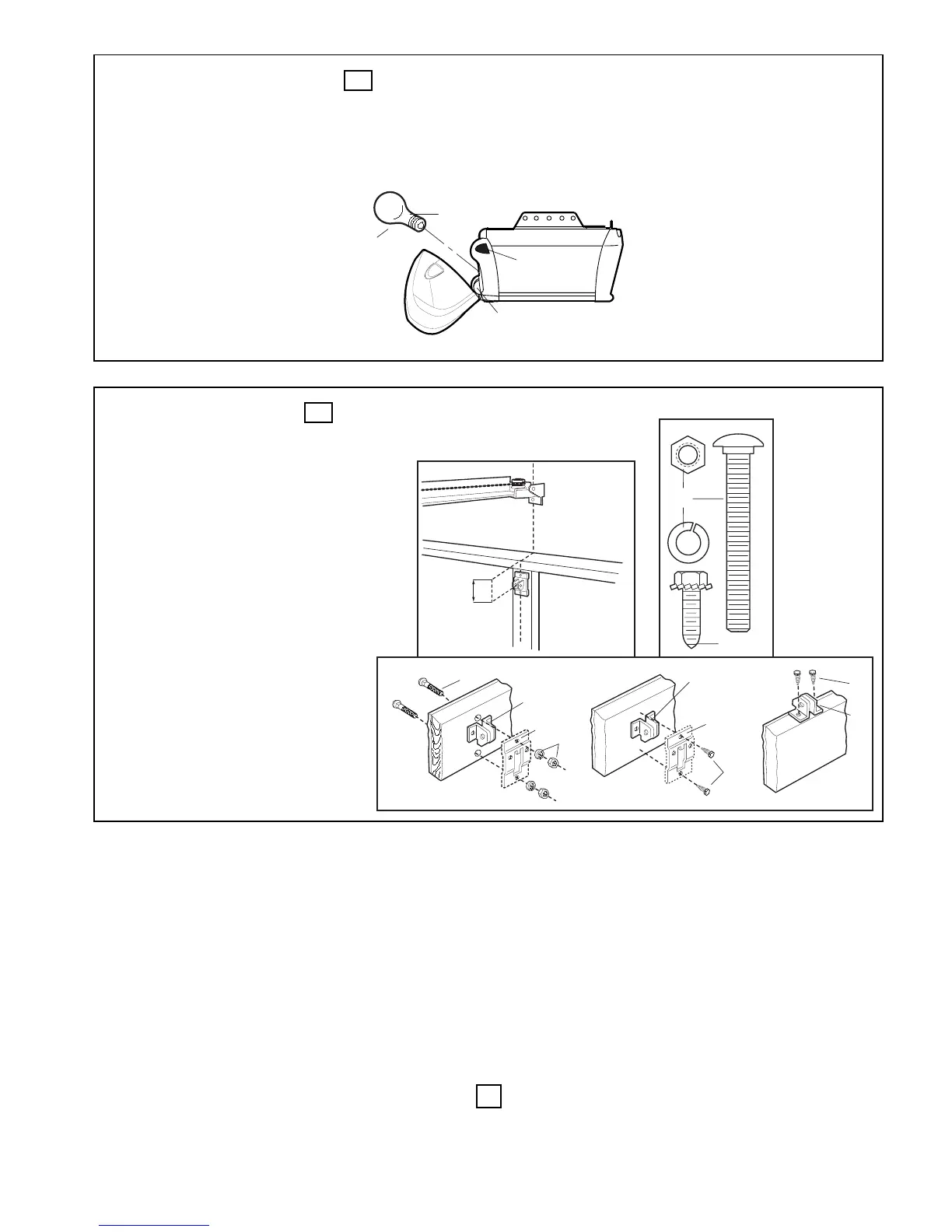

INSTALL THE LIGHT AND LENS –
Install a 40 watt maximum light bulb (1) in the socket as shown. The light will turn on and remain lit for 4-1/2 minutes when power is connected.
After 4-1/2 minutes it will turn off.
Replace burned out bulbs with rough service light bulbs.
Apply slight pressure on sides of the lens (2) and slide tabs (3) into slots (4) in the end panel. Reverse the procedure to remove the lens.
15
2
1
40W
E27
3
FASTEN DOOR BRACKET –
If yours is a canopy or dual-track style garage door, a door arm conversion kit is required. Follow the instal-
lation instructions included with the replacement door arm. Exercise care in removing and assembling arm
conversion kit. Keep fingers away from the sliding parts.
NOTE: Horizontal and vertical reinforcement is needed
for lightweight garage doors.
Sectional and One-Piece Door Installation Procedure:
Door bracket (1) has left and right side fastening holes.
Assemble and install the bracket and plate (2) if your
installation requires top and bottom fastening holes.
1. Center bracket (with or without plate, as required) at
the top of inside face of door as shown. Mark holes.
2. A. Wooden doors
Drill 8mm holes (5/16") and fasten the door bracket
with nut, lock washer, and carriage bolt (3).
B. Sheet metal doors
Fasten with sheet metal screws (4).
C. One-piece door optional
Fasten with sheet metal screws (4).
16
3
4
B
1
4
C
A
1
2
3
3
1
2
4
A. 0-100mm
B. 150-250mm
10

Chamberlain Merlin MT5580 Specifications

Power

rated power	400 W
voltage	230-240 Volts AC
max pull force	800N

Motor Specifications

motor type	Permanent split capacitor
speed	1500 rpm
drive mechanism	Chain with two-piece trolley on steel rail

Weight and Dimensions

length	3, 1m
headroom required	30mm
hanging weight	14, 5 kg
