6
100261 ENGLISH

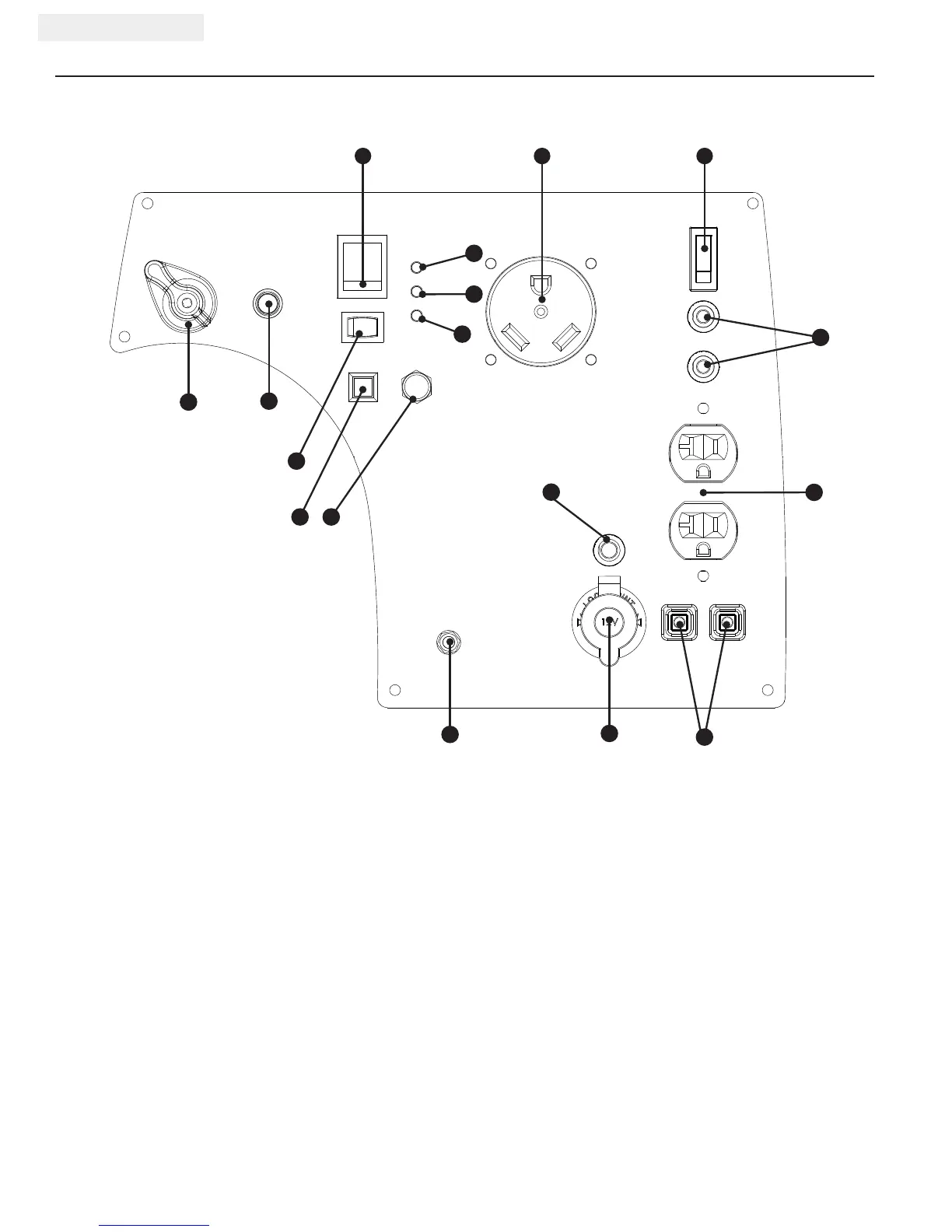

Power Panel
(1) Fuel Valve Knob
(2) Push-Button Choke
(3) Economy Control Switch
(4) Wireless Set Button
(5) Red Pilot Lamp
(6) Ground Terminal – Consult an electrician for local
grounding regulations.
(7) 12V DC Outlet*
(8) Circuit Breaker (Push-button) – Protects the
generator against electrical overload.
(9) Parallel Outlets – used for parallel operation.
(10) 120 Volt AC, 20 Amp Duplex (NEMA 5-20R) –
May be used to supply electrical power for the
operation of 120 Volt AC, 20 Amp, single phase
60 Hz electrical loads.
CONTROLS AND FEATURES
16 12 11
3
4
6
7
10
2
1
(11) Battery Switch
(12) 120 Volt AC, 30 Amp Receptacle (NEMA TT-30R)
– May be used to supply electrical power for the
operation of 120 Volt AC, 30 Amp, single phase
60 Hz electrical loads.
(13) Oil Warning Light – Check oil level when this light
turns on. Engine will not run when indicator is lit.
(14) Overload Indicator Light – This light turns ON
when the generator is overloaded and will cut
power to the receptacles.
(15) Output Light – Remains ON during normal
operating conditions. Shuts OFF when generator is
overloaded.
(16) Ignition Switch
*Warning: Do not operate a device while it is plugged into
the 12V DC outlet. Prolonged exposure to engine exhaust
can cause serious injury or death. While charging a device
do no place on the exhaust side of the generator. Extreme
heat caused by exhaust can damage the device, and cause a
potential fire hazard.
8
9
15
13
14
5
8
