201319 - 4500W DUAL FUEL ELECTRIC START INVERTER GENERATOR
CONTROLS AND FEATURES
16

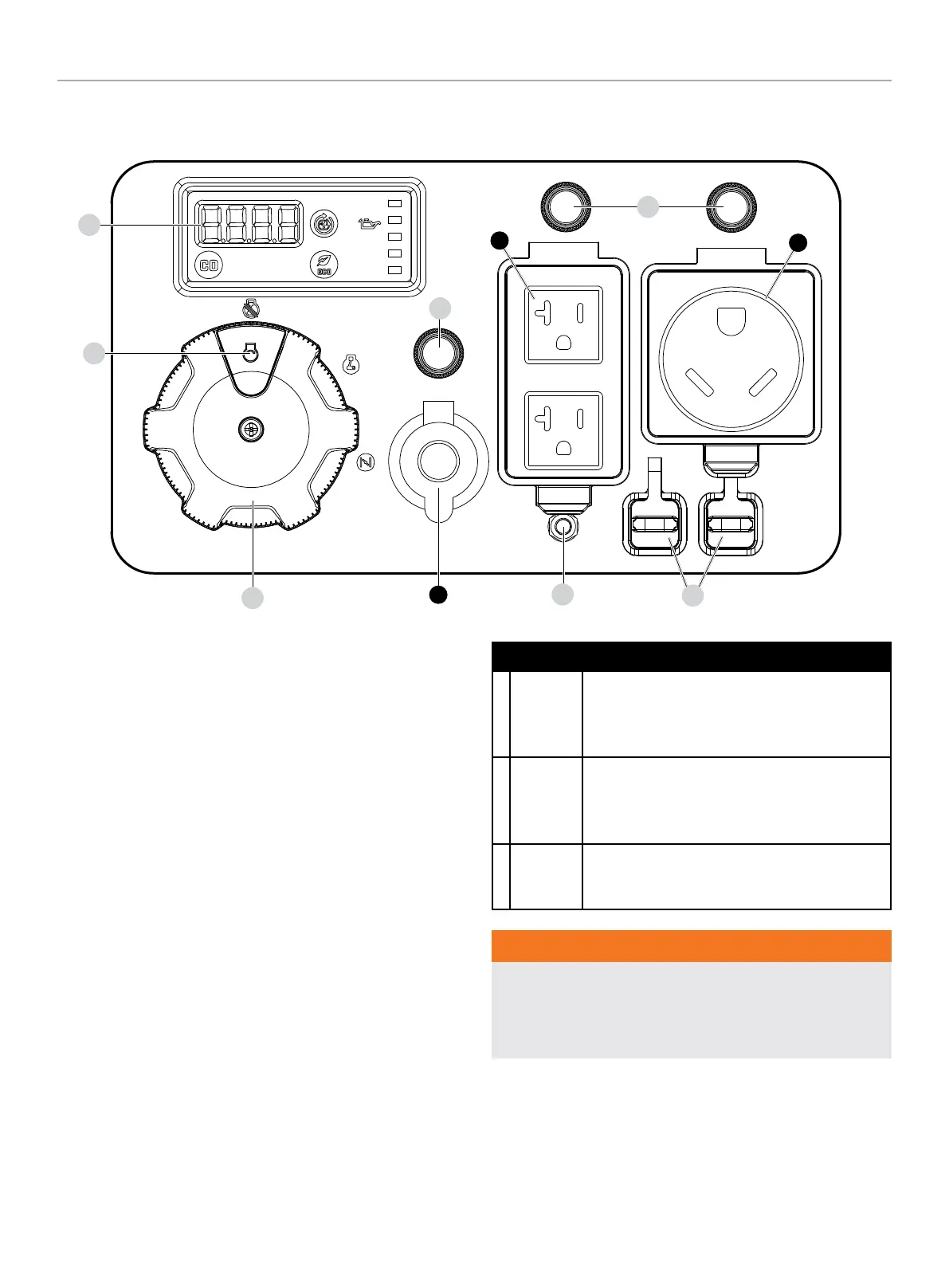

Control Panel
1. Intelligauge
– See Intelligauge section.
2. Ignition Switch – Used to START the generator.
3. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
4. EZ Start Dial – Used to start, stop and choke the generator.
5. Ground Terminal – Consult an electrician for local grounding
regulations.
6. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
RECEPTACLES
A
C
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
B
t
120V AC, 29.2A RV (NEMA TT-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 29.2 Amp, single
phase, 60 Hz electrical loads.
C
z
12V DC, 8A (Regulated Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
WARNING
When charging a device, do not place on the exhaust side of
the generator. Extreme heat caused by exhaust can damage
the device and cause a potential fire hazard. Prolonged
exposure to engine exhaust can cause serious injury or death.
1
2
3
5
4
3
B
A
6
C
