Champion 41533 - Controls and Features; Generator

5 REV 41533-20110701
ENGLISH 41533
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
Generator

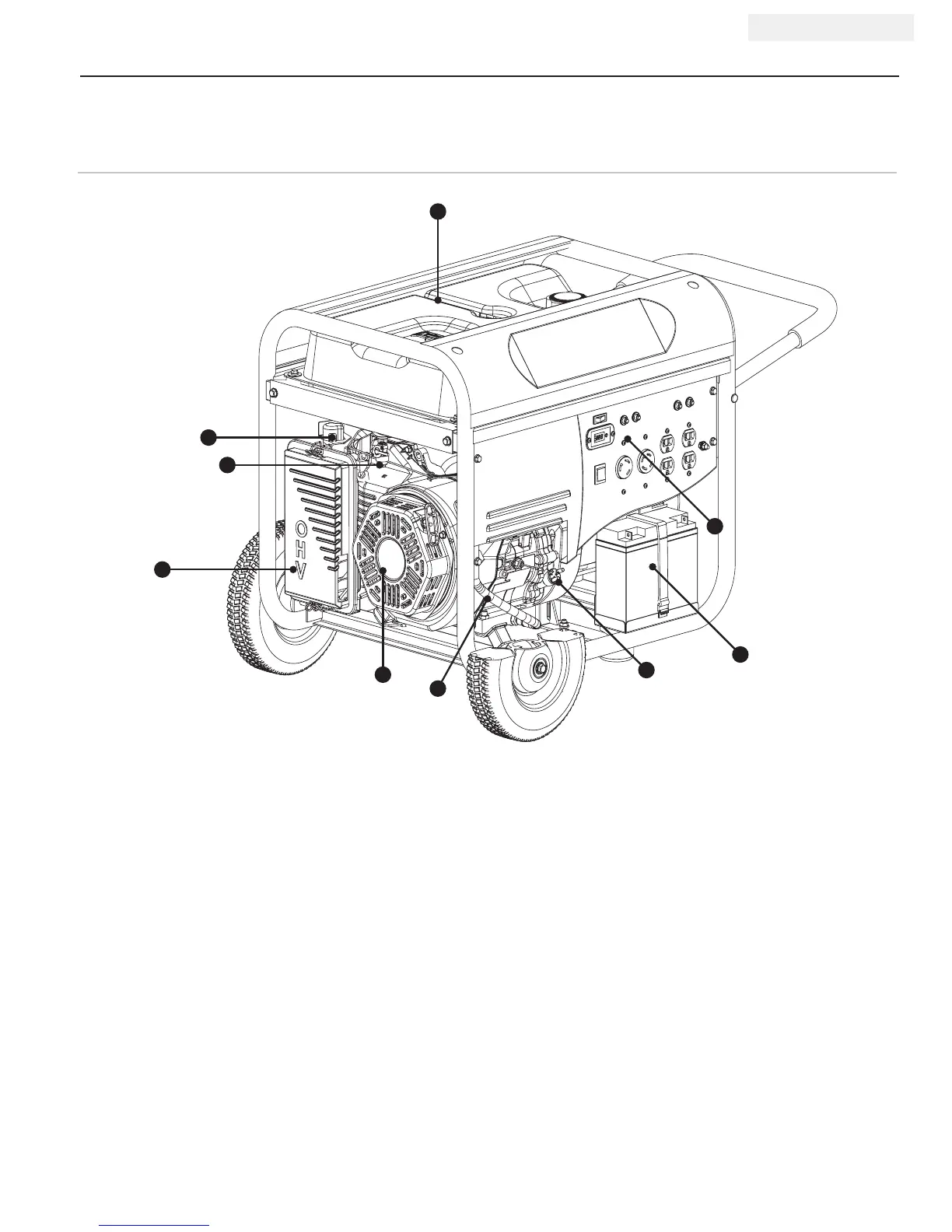

CONTROLS AND FEATURES
(1) Fuel Tank – 5.9 gallon (22.4 L) capacity fuel tank.
(2) Auto-Choke – Used to start the engine. No manual
adjustment required.
(3) Fuel Valve – Used to turn fuel supply on and off to
engine.
(4) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air.
(5) Recoil Starter – Used to manually start the engine.
(6) Quick Drain Tube – Used to easily and quickly
drain oil from the engine.
(7) Oil Filler Cap – Check and fill engine oil level.
(8) Battery – Used to start the engine. Provides 12V
DC to the electric starter and receiver control
module.
(9) Power Panel – See “Power Panel” section.
1
5
6
3
2
4
8
7
9
