Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.

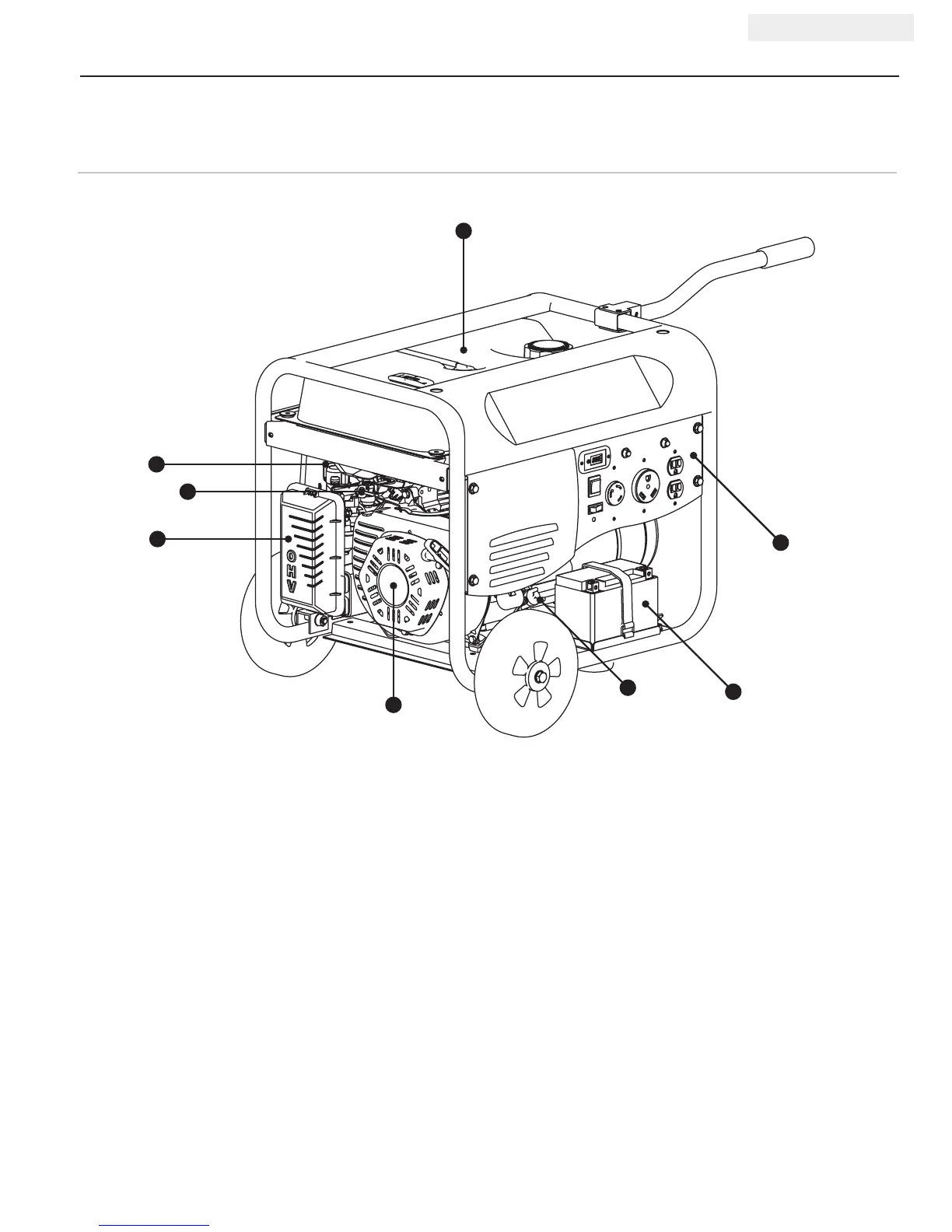

(1) Fuel Tank – 3.8 gal. (14.4 L) capacity fuel tank.
(2) Auto-Choke – Used to start the engine. No manual
adjustment required.
(3) Fuel Valve – Turn this valve to the “ON” position to
supply fuel to the engine.
(4) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air.
(5) Recoil Starter – Used to start the engine.
(6) Oil Filler Cap – Check and fill engine oil level.
(7) Battery – Used to start the engine. Provides 12V
DC to the electric starter and receiver control
module.
(8) Power Panel – See “Power Panel” section.
1
5
3
2
4
7
6
8
Generator
CONTROLS AND FEATURES
