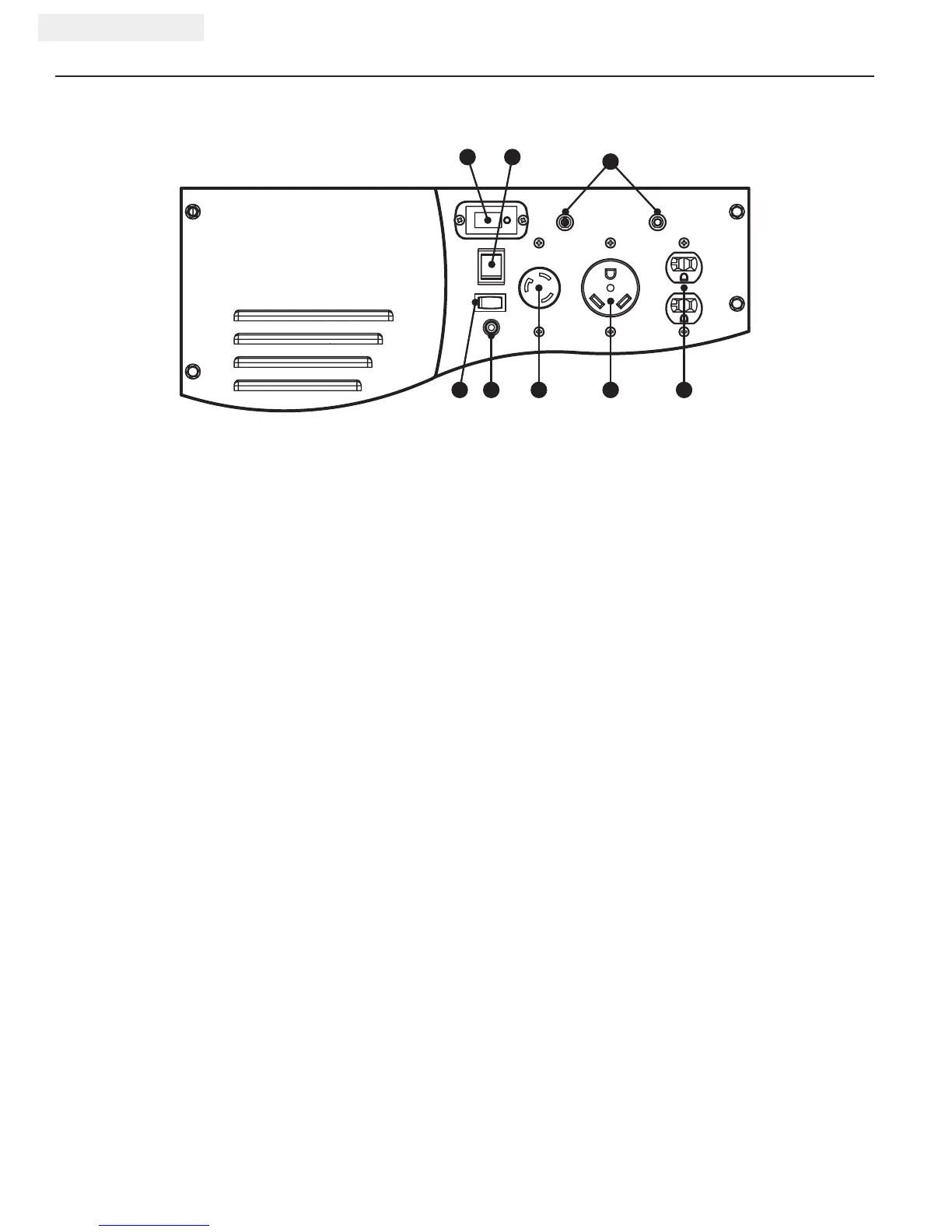

Power Panel
1
5 6 7 8
3
(1) Intelligauge™ – Three mode digital meter for
running hours, voltage and hertz.
(2) Ignition Switch
(3) Circuit Breaker(s) – Protects the generator against
electrical overload.
(4) Battery Switch – Enables/disables starting
electrically – via remotely or by Ignition Switch.
(5) Ground Terminal – Consult an electrician for local
grounding regulations.
(6) 120 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L5-30R) – May be used to supply electrical
power for the operation of 120 Volt AC, 30 Amp,
single phase 60 Hz electrical loads.
(7) 120 Volt AC, 30 Amp Receptacle (NEMA TT-30R)
– May be used to supply electrical power for the
operation of 120 Volt AC, 30 Amp, single phase
60 Hz electrical loads.
(8) 120 Volt AC, 20 Amp Duplex (NEMA 5-20R) –
May be used to supply electrical power for the
operation of 120 Volt AC, 20 Amp, single phase
60 Hz electrical loads.
2
CONTROLS AND FEATURES
4
