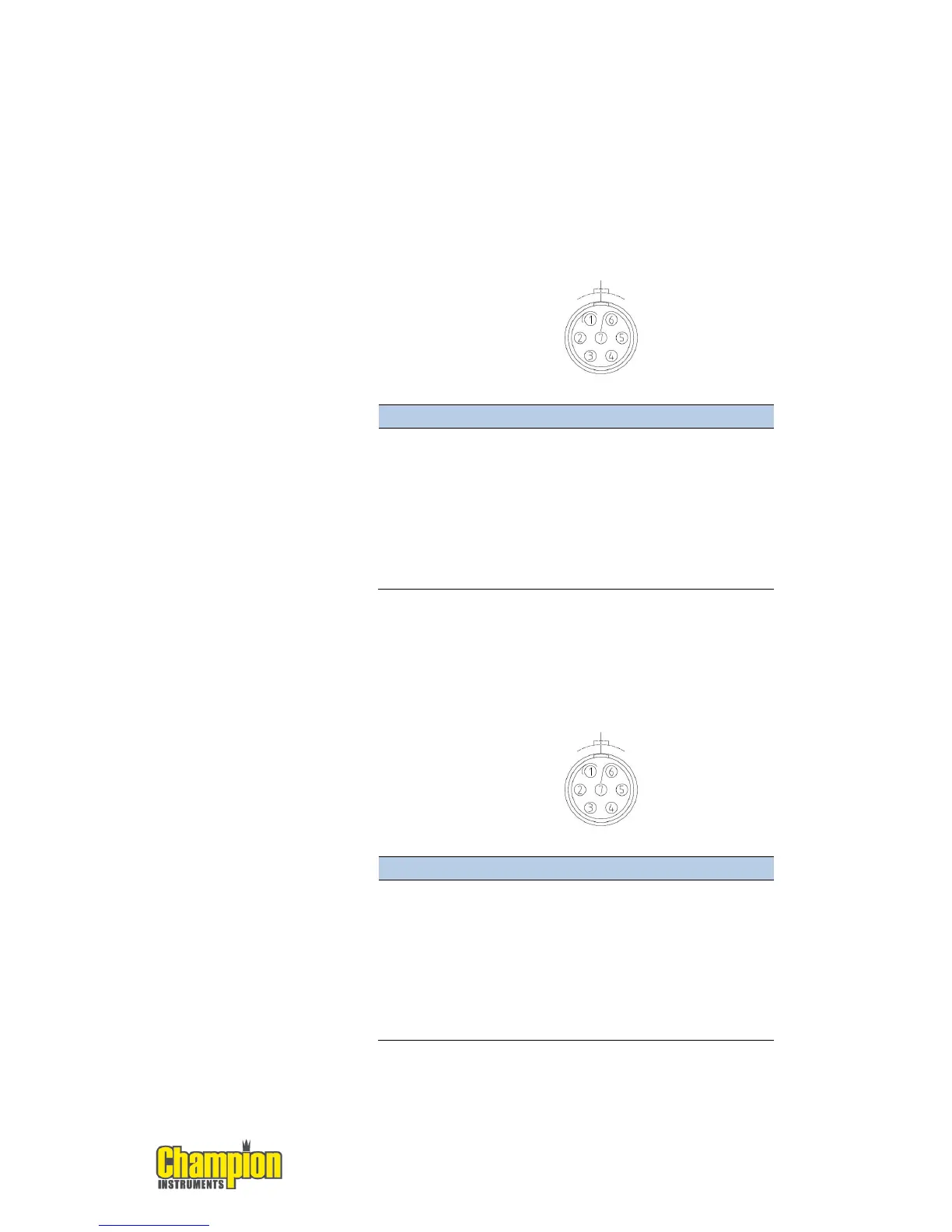

A. COMMUNICATION PORTS DEFINITION
A.I. CHAMPION PRO RECEIVER IO PORT (7-PIN LEMO PORT)
DEFINITION
PIN
FUNCTION
1
Ground ( - )
2
Ground ( - )
3
RS232-TX (Output)
4
Not Used
5
Not Used
6
VIN
7
RS232-RX (Input)
A.II. CHAMPION PRO RECEIVER USB PORT (7-PIN LEMO PORT)
DEFINITION
PIN
FUNCTION
1
Ground ( - )
2
Ground ( - )
3
VBUS
4
DM
5
DP
6
VIN
7
ID
