Changchai 178FA - Mounting of Electrical Starting Switch Assembly

- 10 -

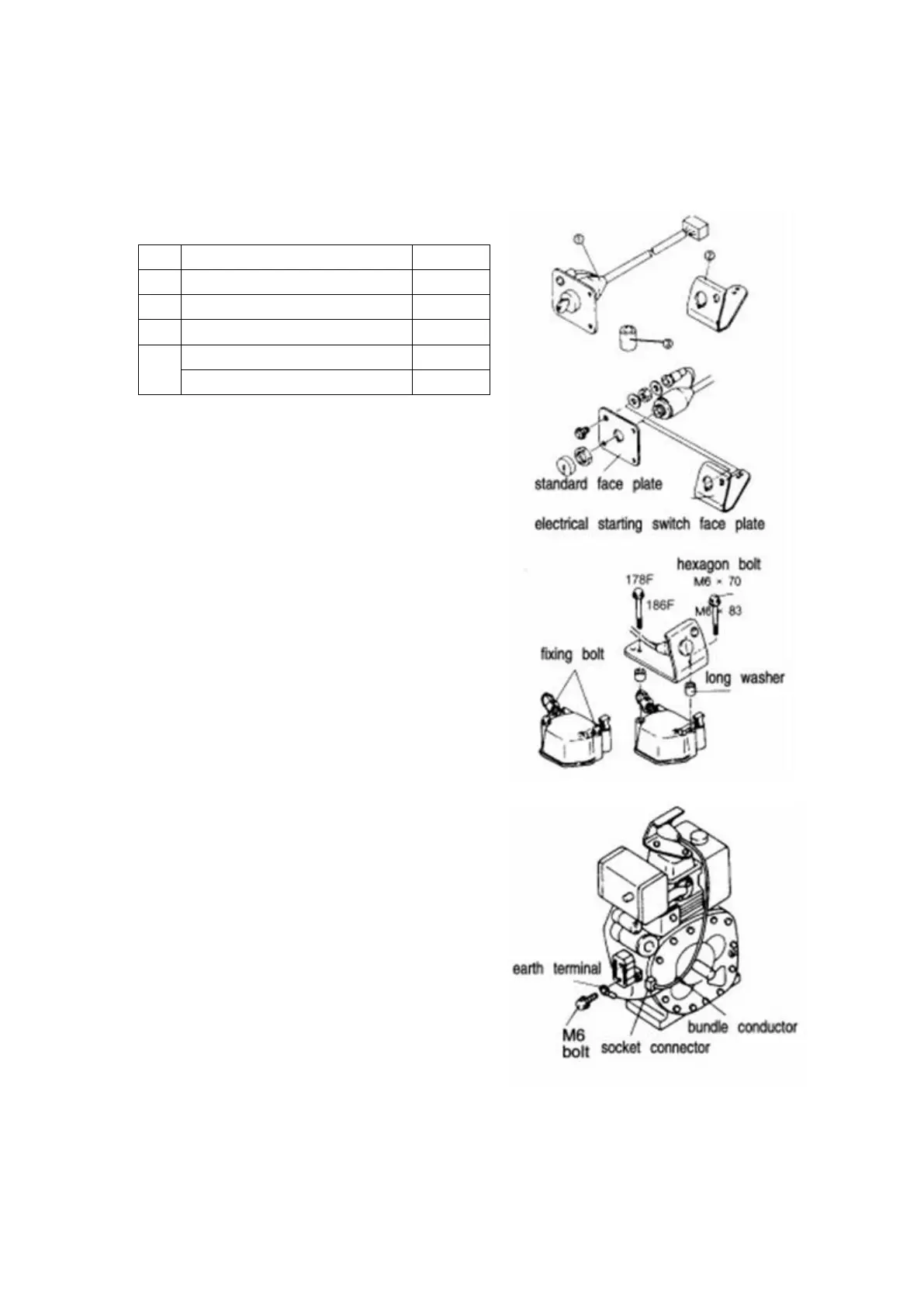

5.3 Mounting of the Electrical Starting Switch Assembly
If the electrical starting switch face plate is mounted on the upper of the cylinder head cover,
please according to the following parts and sequence of operation for mounting.
A.Parts:
B.Sequence of operation
(1)Refit the electrical starting switch assembly
from the standard face plate to the electrical starting
switch face plate of the cylinder head cover.
(2)Remove the two fixing bolt of the cylinder
head cover.
(3)Clamp down the face plate with long washer,
and fix by the hexagon bolt.
(4)Screw the earth terminal of the bundle
conductor in the way of the M6 bolt.
Note:
If the bundle contacts against muffler or output
shaft, the mishaps such as fire will be initiated.
No.
Name of part
Quantity
1
Electrical starting switch assembly
1
2
Electrical starting switch face plate
1
3
Long washer
2
4
Hexagon bolt M6×70( 170F/178F)
2
Hexagon bolt M6×83( 186F)
2
