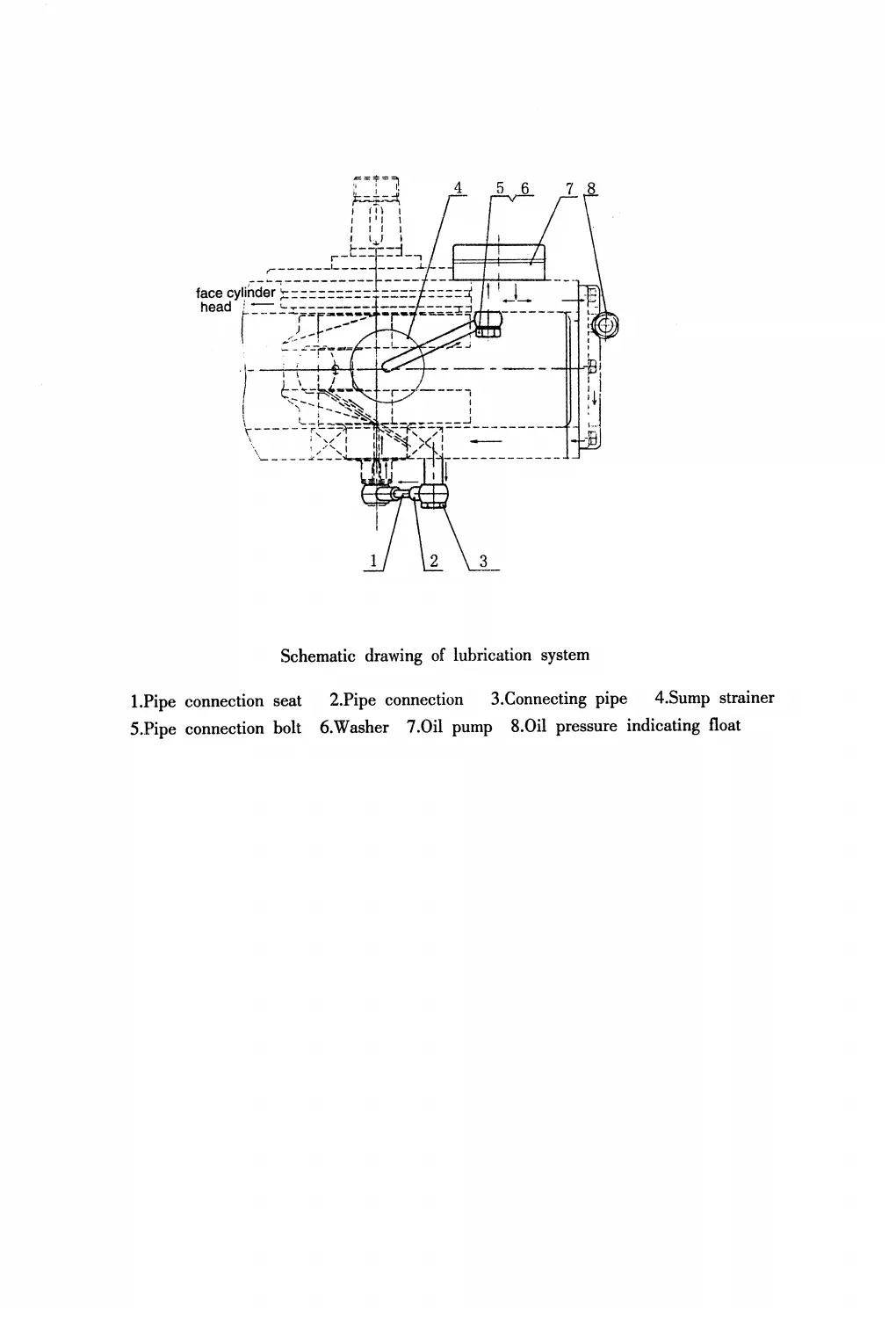

Schematic drawing of lubrication system
I.Pipe connection seat
5.Pipe connection bolt
2.Pipe connection 3.Connecting pipe 4.Sump strainer
6.Washer
7.0il
pump
8.0il
pressure indicating float
