Channel Master 100 - Parts and Hardware Listing (AZ;EL Cap Mount)

PARTS AND HARDWARE LISTING
2
3
25
2
26
3
23
24
3
23
2
17 22
21
20
19
17
2
3
16
17
18
19
1

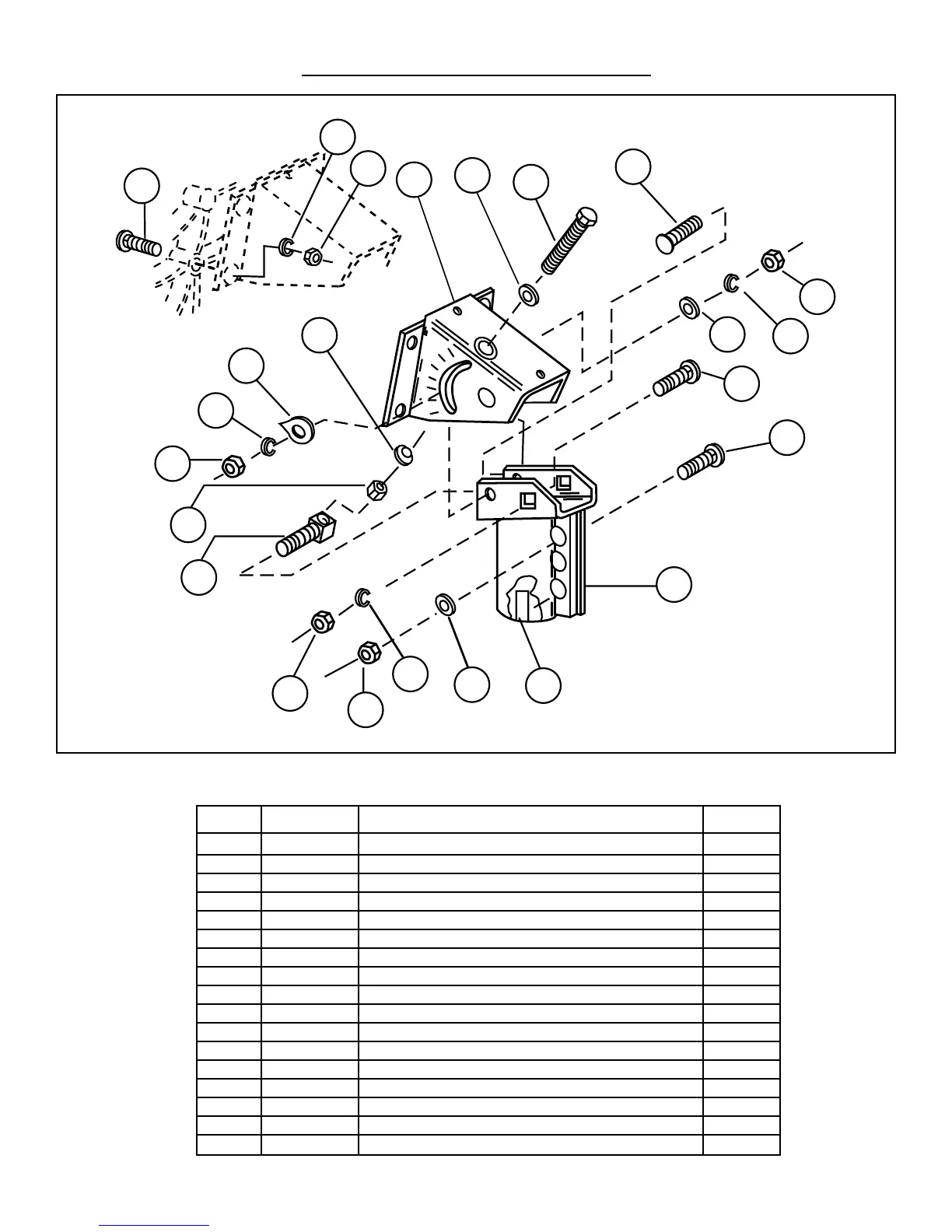

FIG. 4.0 - AZ/EL CAP MOUNT
ITEM PART NO. DESCRIPTION QTY.
1 2070022-01 BOLT-ROUND HEAD, SQUARE NECK M8X60 4
2 2603300-01 WASHER-LOCK M8 (⁵⁄₁₆)8
3 2460800-01 NUT-HEX M8 4
16 2010105-03 HOUSING AZ/EL 1
17 2503300-01 WASHER FLAT M8 (⁵⁄₁₆) 5
18 2060006-01 BOLT-HEX M8 x 130 1
19 2070022-03 BOLT-ROUND HEAD, SQUARE NECK M8 x 20 3
20 2070022-05 BOLT-ROUND HEAD, SQUARE NECK M8 X 35, MO. 6031 3
21 2020343-02 CLAMP-WELDMENT, 2³⁄₈ O.D. 1
21 2020322-02 CLAMP-WELDMENT, 3” O.D. 1
22 1010047-01 PAD - ABRASIVE 1
23 2380075-01 NUT-ELASTIC STOP M8, MO. 6031 4
24 2380067-02 NUT-SWIVEL/SPECIAL 1
25 2010119-01 POINTER 1
26 2509002-01 WASHER-SPHERICAL 1
– 6010213-01 MOUNT ASSY. 2³⁄₈”O.D. –
– 6010017-01 MOUNT ASSY. 3” O.D. –
